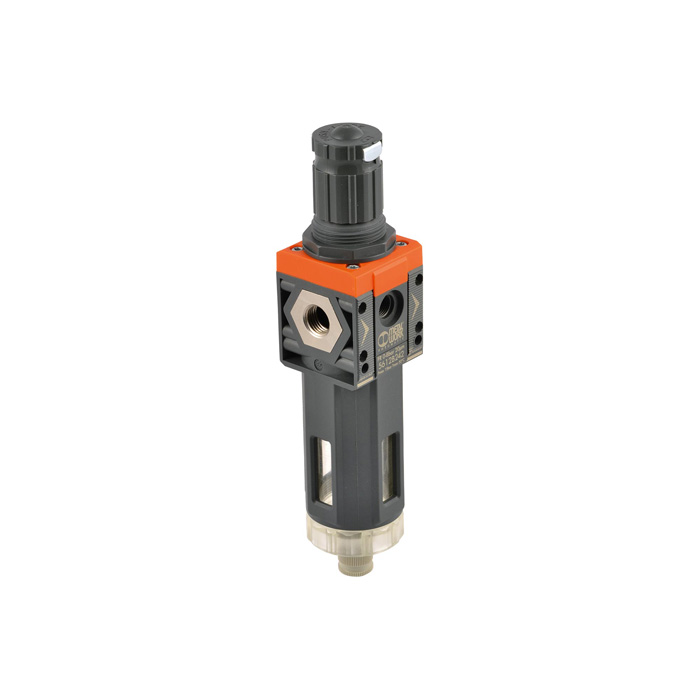

RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...8bar, RMSA, o. Mano.
Type number: 5625B145
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator »SYNTESI«, size 2, G 3/4, 5 µm, p1 = max. 13 bar, p2 = 0…8 bar, RMSA semi-autom., T = -10…50 °C, w/o gauge
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 8 bar |
| BG | 2 |
| Input connection | G 3/4 |
| Output connection | |
| A | 60.5 mm |
| B | 246 mm |
| Flow_1 | 5200 Nl/min |
| Flow_2 | 7400 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 139.8 mm |
| Air purity class at the outlet according to | 38171 |
| A1 | 95.0 mm |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Spring cover | Technopolymer |
| Condensate drain |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141164] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277678/image_128/%5B141164%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=2e02b7e)
|
Type number: 5612B262 |
45.61 € | |
![[141088] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277675/image_128/%5B141088%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=0d989c2)
|
Type number: 5612B202 |
45.61 € | |
![[141128] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277676/image_128/%5B141128%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=44b204d)
|
Type number: 5612B222 |
45.61 € | |
![[141140] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277677/image_128/%5B141140%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=c3178bb)
|
Type number: 5612B242 |
45.61 € | |
![[140966] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277674/image_128/%5B140966%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=b974c4b)
|
Type number: 5612B162 |
45.61 € | |
![[140939] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277671/image_128/%5B140939%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=28fd52f)
|
Type number: 5612B102 |
45.61 € | |
![[140952] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277672/image_128/%5B140952%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=1cbdfac)
|
Type number: 5612B122 |
45.61 € | |
![[140961] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277673/image_128/%5B140961%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=c8d0874)
|
Type number: 5612B142 |
45.61 € | |
![[140937] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277670/image_128/%5B140937%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=f8fa187)
|
Type number: 5611B261 |
45.61 € | |
![[140867] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277667/image_128/%5B140867%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=b0ea73b)
|
Type number: 5611B201 |
45.61 € | |
![[140923] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277668/image_128/%5B140923%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=7ef2567)
|
Type number: 5611B221 |
45.61 € | |
![[140935] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277669/image_128/%5B140935%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=577f4ec)
|
Type number: 5611B241 |
45.61 € | |
![[140857] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277666/image_128/%5B140857%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=e9e9ed1)
|
Type number: 5611B161 |
45.61 € | |
![[140778] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277663/image_128/%5B140778%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=ed086fd)
|
Type number: 5611B101 |
45.61 € | |
![[140790] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277664/image_128/%5B140790%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=724a6ed)
|
Type number: 5611B121 |
45.61 € | |
![[140852] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277665/image_128/%5B140852%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=f6ba5c4)
|
Type number: 5611B141 |
45.61 € | |
![[141254] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277686/image_128/%5B141254%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=1d1cf3c)
|
Type number: 5613B263 |
45.61 € | |
![[141224] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277683/image_128/%5B141224%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=abcf33c)
|
Type number: 5613B203 |
45.61 € | |
![[141236] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277684/image_128/%5B141236%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=7d68d3d)
|
Type number: 5613B223 |
44.99 € | |
![[141250] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277685/image_128/%5B141250%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=9449fe4)
|
Type number: 5613B243 |
45.61 € | |
![[141171] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277682/image_128/%5B141171%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=461b79c)
|
Type number: 5613B163 |
45.61 € | |
![[141165] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277679/image_128/%5B141165%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=bba4453)
|
Type number: 5613B103 |
45.61 € | |
![[141166] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277680/image_128/%5B141166%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=78c7a67)
|
Type number: 5613B123 |
45.61 € | |
![[141167] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277681/image_128/%5B141167%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=8e7c2c9)
|
Type number: 5613B143 |
45.61 € | |
![[140773] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277662/image_128/%5B140773%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=353b2fa)
|
Type number: 5610B260 |
42.78 € | |
![[140729] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277659/image_128/%5B140729%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=593f7bf)
|
Type number: 5610B200 |
42.78 € | |
![[140741] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277660/image_128/%5B140741%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=1dc276c)
|
Type number: 5610B220 |
42.78 € | |
![[140750] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277661/image_128/%5B140750%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=0aa1b65)
|
Type number: 5610B240 |
42.78 € | |
![[140710] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277658/image_128/%5B140710%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=8897ae9)
|
Type number: 5610B160 |
42.78 € | |
![[140518] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277655/image_128/%5B140518%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=f85f1e7)
|
Type number: 5610B100 |
42.78 € | |
![[140688] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277656/image_128/%5B140688%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=3e0bb17)
|
Type number: 5610B120 |
42.78 € | |
![[140709] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277657/image_128/%5B140709%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=e2f3e8a)
|
Type number: 5610B140 |
42.78 € | |
![[142184] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277726/image_128/%5B142184%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=be3ab8e)
|
Type number: 5626B266 |
81.11 € | |
![[142048] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277723/image_128/%5B142048%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=2bacb3d)
|
Type number: 5626B206 |
81.11 € | |
![[142079] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277724/image_128/%5B142079%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=cbaa130)
|
Type number: 5626B226 |
81.11 € | |
![[142167] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277725/image_128/%5B142167%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=a867c1c)
|
Type number: 5626B246 |
81.11 € | |
![[141305] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277710/image_128/%5B141305%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=3d40b8c)
|
Type number: 5624B264 |
72.28 € | |
![[141275] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277707/image_128/%5B141275%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=4336f5e)
|
Type number: 5624B204 |
71.29 € | |
![[141276] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277708/image_128/%5B141276%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=e30543b)
|
Type number: 5624B224 |
71.29 € | |
![[141277] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277709/image_128/%5B141277%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=88d0f66)
|
Type number: 5624B244 |
72.28 € | |
![[141274] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277706/image_128/%5B141274%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=5391f76)
|
Type number: 5624B164 |
72.28 € | |
![[141271] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277703/image_128/%5B141271%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=f6339fe)
|
Type number: 5624B104 |
72.28 € | |
![[141272] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277704/image_128/%5B141272%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=215b509)
|
Type number: 5624B124 |
72.28 € | |
![[141273] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277705/image_128/%5B141273%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=414f55f)
|
Type number: 5624B144 |
72.28 € | |
![[141837] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277722/image_128/%5B141837%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=31587ec)
|
Type number: 5626B166 |
81.11 € | |
![[141349] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277719/image_128/%5B141349%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=f732e24)
|
Type number: 5626B106 |
81.11 € | |
![[141812] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277720/image_128/%5B141812%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=9dbc900)
|
Type number: 5626B126 |
81.11 € | |
![[141813] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277721/image_128/%5B141813%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=e163363)
|
Type number: 5626B146 |
81.11 € | |
![[141345] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277718/image_128/%5B141345%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=5dc2ba5)
|
Type number: 5625B265 |
81.11 € | |
![[141333] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277715/image_128/%5B141333%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=b4d5ae5)
|
Type number: 5625B205 |
81.11 € | |
![[141336] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277716/image_128/%5B141336%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=2e38dcf)
|
Type number: 5625B225 |
81.11 € | |
![[141339] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277717/image_128/%5B141339%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=2eb1d8f)
|
Type number: 5625B245 |
81.11 € | |
![[141331] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277714/image_128/%5B141331%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=4892b40)
|
Type number: 5625B165 |
81.11 € | |
![[141307] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277711/image_128/%5B141307%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=ea86d92)
|
Type number: 5625B105 |
81.11 € | |
![[141310] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277712/image_128/%5B141310%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=03b146d)
|
Type number: 5625B125 |
81.11 € | |
![[141270] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277702/image_128/%5B141270%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=8b41e7f)
|
Type number: 5623B263 |
72.28 € | |
![[141267] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277699/image_128/%5B141267%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=cd665d0)
|
Type number: 5623B203 |
72.28 € | |
![[141268] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277700/image_128/%5B141268%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=2818d27)
|
Type number: 5623B223 |
72.28 € | |
![[141269] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277701/image_128/%5B141269%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=047b0f1)
|
Type number: 5623B243 |
72.28 € | |
![[141266] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277698/image_128/%5B141266%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=1d8987b)
|
Type number: 5623B163 |
72.28 € | |
![[141263] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277695/image_128/%5B141263%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=18f9da3)
|
Type number: 5623B103 |
72.28 € | |
![[141264] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277696/image_128/%5B141264%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=7b85fcb)
|
Type number: 5623B123 |
72.28 € | |
![[141265] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277697/image_128/%5B141265%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=34d7994)
|
Type number: 5623B143 |
72.28 € | |
![[141262] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277694/image_128/%5B141262%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=b8542b3)
|
Type number: 5620B260 |
60.12 € | |
![[141259] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277691/image_128/%5B141259%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=a8d8891)
|
Type number: 5620B200 |
60.12 € | |
![[141260] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277692/image_128/%5B141260%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=dbcdd86)
|
Type number: 5620B220 |
60.12 € | |
![[141261] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277693/image_128/%5B141261%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=9c6d62e)
|
Type number: 5620B240 |
60.12 € | |
![[141258] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...12bar, RMSA, o. Mano.](/web/image/product.template/277690/image_128/%5B141258%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.12bar%2C%20RMSA%2C%20o.%20Mano.?unique=ec25b3c)
|
Type number: 5620B160 |
60.12 € | |
![[141255] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...2bar, RMSA, o. Mano.](/web/image/product.template/277687/image_128/%5B141255%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.2bar%2C%20RMSA%2C%20o.%20Mano.?unique=0f3eff2)
|
Type number: 5620B100 |
60.12 € | |
![[141256] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...4bar, RMSA, o. Mano.](/web/image/product.template/277688/image_128/%5B141256%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.4bar%2C%20RMSA%2C%20o.%20Mano.?unique=bf191b0)
|
Type number: 5620B120 |
60.12 € | |
![[141257] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...8bar, RMSA, o. Mano.](/web/image/product.template/277689/image_128/%5B141257%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.8bar%2C%20RMSA%2C%20o.%20Mano.?unique=ee3d9bf)
|
Type number: 5620B140 |
60.12 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=236e132)
|
Type number: 217-KD |
6.30 € | |
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=2b365fa)
|
Type number: 206-KD |
6.30 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=97e15b0)
|
Type number: 9210010 |
6.88 € | |
![[145469] RIEGLER Mounting bracket, for "SYNTESI" BG 2, etc.](/web/image/product.template/279225/image_128/%5B145469%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20%22SYNTESI%22%20BG%202%2C%20etc.?unique=602c45c)
|
Type number: 9400701 |
4.53 € | |
![[145474] RIEGLER Metal Work pressure gauge, G 1/4 rear, 0-12 bar, Ø63](/web/image/product.template/279230/image_128/%5B145474%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-4%20rear%2C%200-12%20bar%2C%20%C3%9863?unique=a0daeba)
|
Type number: 9900101 |
13.08 € | |
![[145477] RIEGLER Adapter for pressure gauge, G 1/4 AG, G 1/8 IG](/web/image/product.template/279233/image_128/%5B145477%5D%20RIEGLER%20Adapter%20for%20pressure%20gauge%2C%20G%201-4%20AG%2C%20G%201-8%20IG?unique=6b98fd9)
|
Type number: 9210005 |
2.50 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=279bb29)
|
Type number: 9210019 |
6.40 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=062fb2e)
|
Type number: 9210006 |
6.56 € | |
![[145506] RIEGLER Assembly wrench for "SYNTESI" container, BG 2](/web/image/product.template/279262/image_128/%5B145506%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20container%2C%20BG%202?unique=0b9a402)
|
Type number: 9210050 |
78.43 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=0d5ee23)
|
Type number: 9210031 |
0.76 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=0d4ee1b)
|
Type number: 9062401 |
12.10 € | |
![[145615] RIEGLER SYNTESI" container, BG 2, RA fully automatic](/web/image/product.template/279272/image_128/%5B145615%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RA%20fully%20automatic?unique=296261c)
|
Type number: 9210106 |
38.76 € | |
![[145616] RIEGLER SYNTESI" container, BG 2, SAC fully automatic](/web/image/product.template/279273/image_128/%5B145616%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20SAC%20fully%20automatic?unique=c0c8ce5)
|
Type number: 9210107 |
23.12 € | |
![[145623] RIEGLER Filter element "SYNTESI", BG 2, 20 µm](/web/image/product.template/279280/image_128/%5B145623%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=d048404)
|
Type number: 9210156 |
6.50 € | |
![[145624] RIEGLER Filter element "SYNTESI", BG 2, 50 µm](/web/image/product.template/279281/image_128/%5B145624%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=ccfc096)
|
Type number: 9210157 |
6.50 € | |
![[145655] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 20 µm](/web/image/product.template/279312/image_128/%5B145655%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=27a23ef)
|
Type number: 9210232 |
10.84 € | |
![[145656] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 50 µm](/web/image/product.template/279313/image_128/%5B145656%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=e900ad9)
|
Type number: 9210233 |
10.84 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=3ca0a3b)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=0cf8781)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=9e4c4f3)
|
Type number: 9210155 |
6.50 € | |
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=520f07e)
|
Type number: 233.03-N |
0.62 € | |
![[145647] RIEGLER Regulator attachment (bell) "SYNTESI", BG 2, 0 - 8 bar](/web/image/product.template/279304/image_128/%5B145647%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%202%2C%200%20-%208%20bar?unique=0898e21)
|
Type number: 9210222 |
23.49 € | |
![[145614] RIEGLER SYNTESI" container, BG 2, RMSA semi-automatic](/web/image/product.template/279271/image_128/%5B145614%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RMSA%20semi-automatic?unique=1e3a891)
|
Type number: 9210105 |
14.66 € | |
![[145639] RIEGLER SYNTESI" spring, BG 2, 0 - 8 bar](/web/image/product.template/279296/image_128/%5B145639%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%202%2C%200%20-%208%20bar?unique=52e959e)
|
Type number: 9210197 |
3.20 € | |

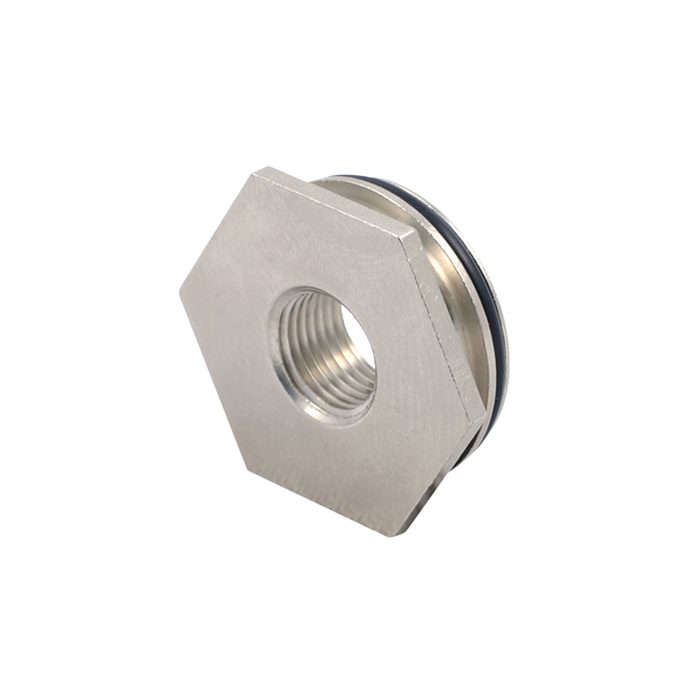

![[144693] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/4, incl. 2 screws](/web/image/product.template/277875/image_128/%5B144693%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%20incl.%202%20screws?unique=a76a9c4)
|
Type number: 9210013 |
10.26 € | |
![[145654] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 5 µm](/web/image/product.template/279311/image_128/%5B145654%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=00d4f4c)
|
Type number: 9210231 |
10.84 € | |
