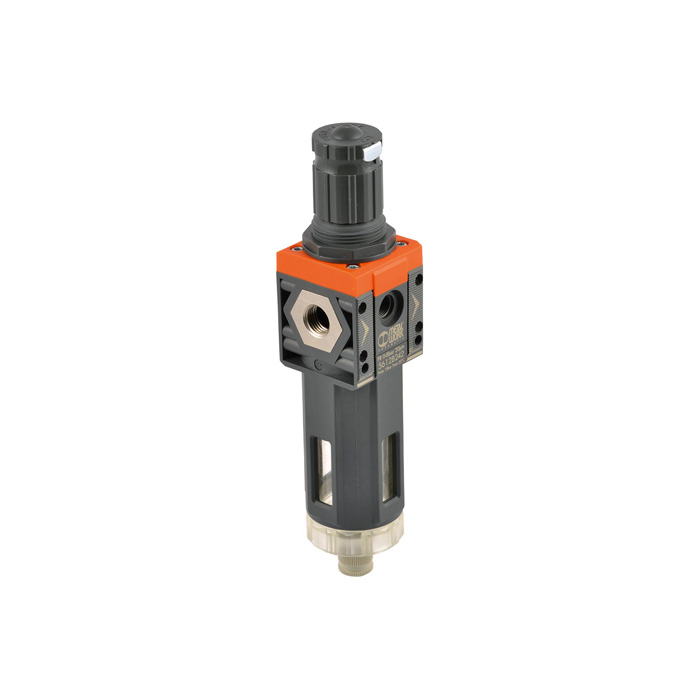

RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...10bar, RA, o. Mano.
Type number: 5612B462
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "SYNTESI" made of technopolymer, for compressed air treatment, 0 bar - Type 5612B462
The RIEGLER filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...10bar, RA, o. Mano. combines compressed air filtration and pressure regulation in one compact device. The housing is made of technopolymer with NBR seals. The control range extends from 0 bar to 10 bar with a maximum inlet pressure of 10 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Filter fineness 5 µm, container made of technopolymer. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 10 bar |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 42 mm |
| B | 202 mm |
| Flow 1 | 800 Nl/min |
| Flow 2 | 2000 Nl/min |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 126.2 mm |
| Air purity class at the outlet according to | 38171 |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Spring cover | Technopolymer |
| Condensate drain | RA fully automatic |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

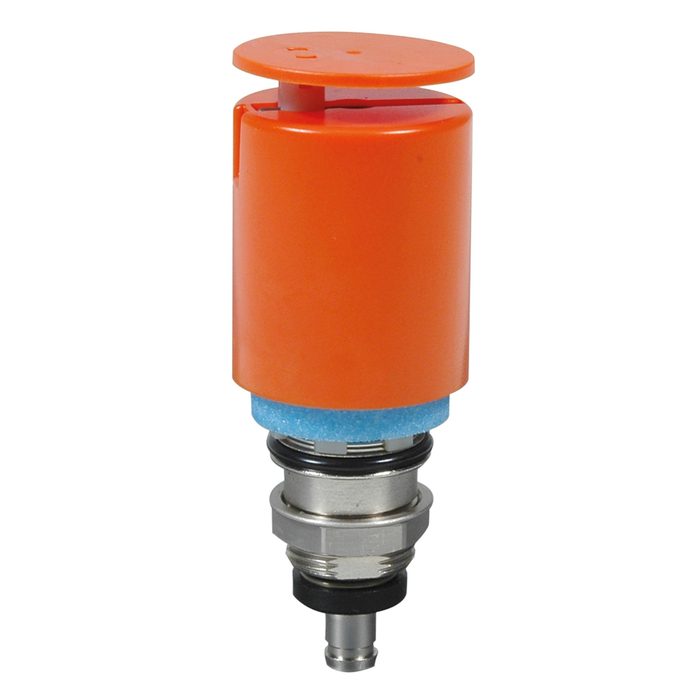

![[145609] RIEGLER Automatic drain valve "SYNTESI", RA](/web/image/product.template/279266/image_128/%5B145609%5D%20RIEGLER%20Automatic%20drain%20valve%20%22SYNTESI%22%2C%20RA?unique=9833340)
|
Type number: 9000802 |
37.41 € | |

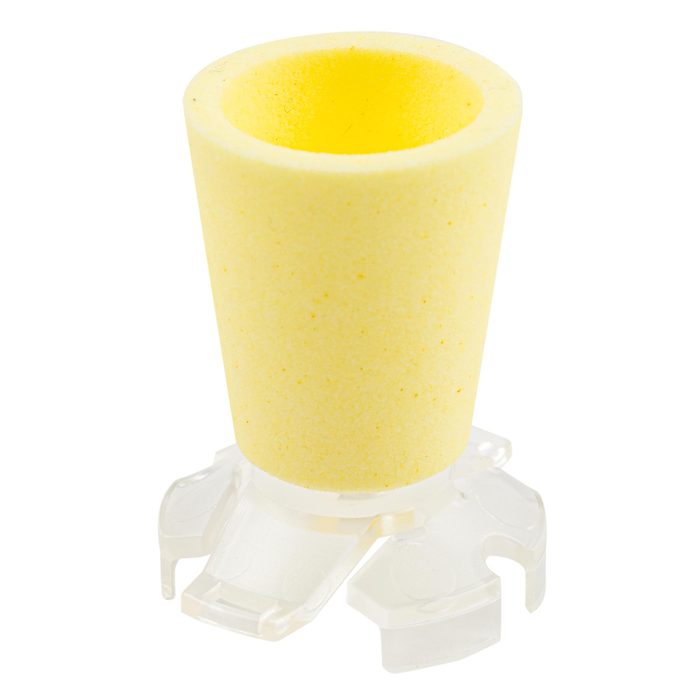

![[145619] RIEGLER Filter element "SYNTESI", BG 1, 5 µm](/web/image/product.template/279276/image_128/%5B145619%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=aa4a678)
|
Type number: 9210150 |
4.90 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=1e60c06)
|
Type number: 233.02-N |
0.42 € | |
![[145644] RIEGLER Regulator attachment (bell) "SYNTESI", BG 1, 0 - 12 bar](/web/image/product.template/279301/image_128/%5B145644%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%201%2C%200%20-%2012%20bar?unique=635d0c5)
|
Type number: 9210203 |
12.86 € | |

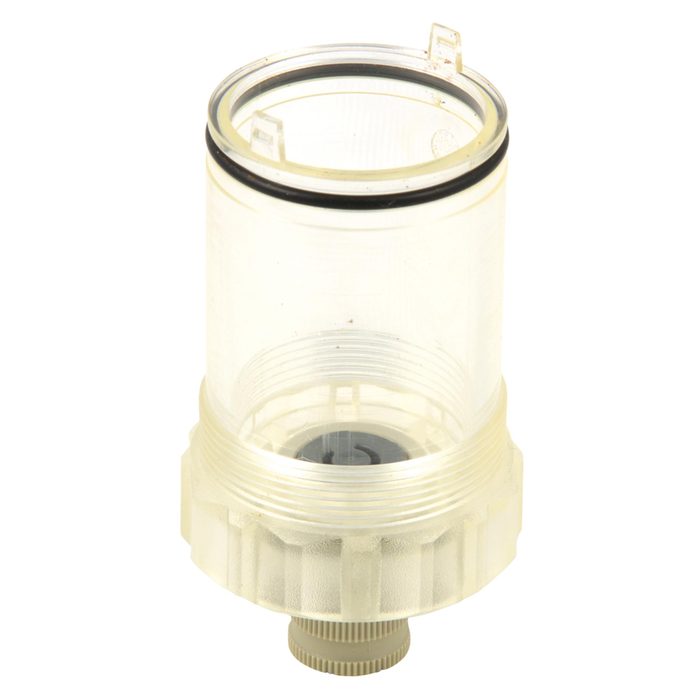

![[145612] RIEGLER SYNTESI" container, BG 1, RA fully automatic](/web/image/product.template/279269/image_128/%5B145612%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RA%20fully%20automatic?unique=8541412)
|
Type number: 9210101 |
30.12 € | |
![[145636] RIEGLER SYNTESI" spring, BG 1, 0 - 12 bar](/web/image/product.template/279293/image_128/%5B145636%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%201%2C%200%20-%2012%20bar?unique=723a002)
|
Type number: 9210193 |
2.42 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=d46c4e7)
|
Type number: 9210002 |
1.86 € | |

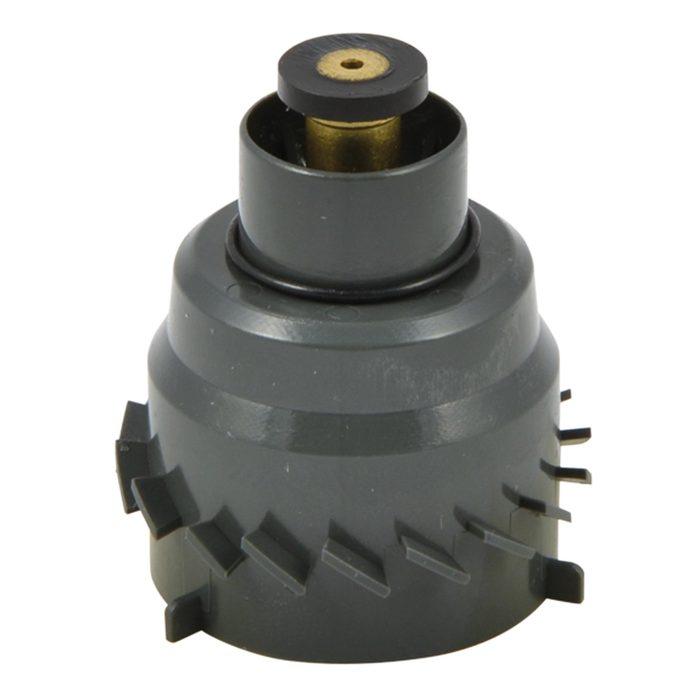

![[145651] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 5 µm](/web/image/product.template/279308/image_128/%5B145651%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=2e046b7)
|
Type number: 9210211 |
6.70 € | |
