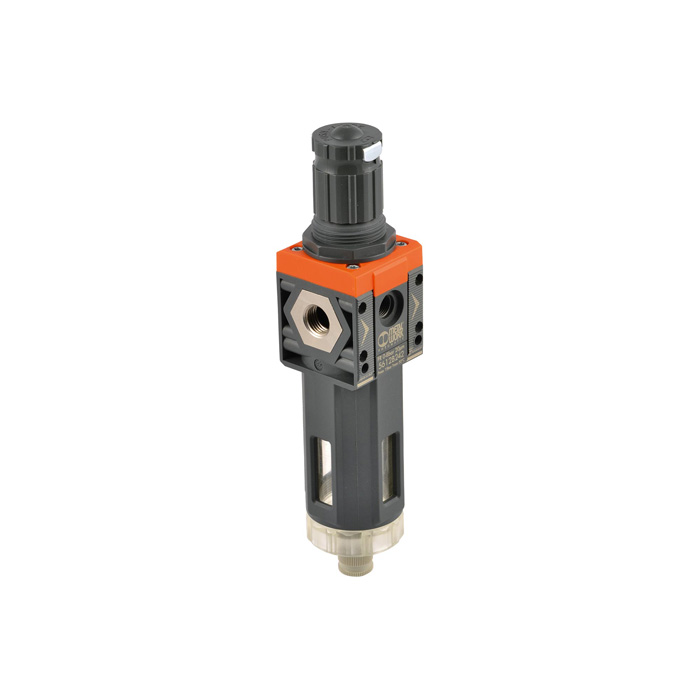

RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...8bar, RA, o. Mano.
Type number: 5620B440
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator »SYNTESI«, size 2, w/o bushings, 5 µm, p1 = max. 10 bar, p2 = 0…8 bar, RA fully autom., T = -10…50 °C, w/o gauge
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 8 bar |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 250 mm |
| Flow_1 | 5200 Nl/min |
| Flow_2 | 7400 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 143.8 mm |
| Air purity class at the outlet according to | 38171 |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Spring cover | Technopolymer |
| Condensate drain | RA fully automatic |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[142273] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277750/image_128/%5B142273%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=ad0c7ca)
|
Type number: 5612B562 |
68.22 € | |
![[142270] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277747/image_128/%5B142270%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=ad912ab)
|
Type number: 5612B502 |
68.22 € | |
![[142271] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277748/image_128/%5B142271%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=6904895)
|
Type number: 5612B522 |
68.22 € | |
![[142272] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277749/image_128/%5B142272%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=36084c7)
|
Type number: 5612B542 |
68.22 € | |
![[142269] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277746/image_128/%5B142269%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=7e36085)
|
Type number: 5612B462 |
68.22 € | |
![[142266] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277743/image_128/%5B142266%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=5dd77bb)
|
Type number: 5612B402 |
68.22 € | |
![[142267] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277744/image_128/%5B142267%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=8b4406b)
|
Type number: 5612B422 |
68.22 € | |
![[142268] RIEGLER Filter regulator "SYNTESI", BG1, G 1/4, 5µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277745/image_128/%5B142268%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=8037623)
|
Type number: 5612B442 |
68.22 € | |
![[142265] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277742/image_128/%5B142265%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=f98229d)
|
Type number: 5611B561 |
68.22 € | |
![[142262] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277739/image_128/%5B142262%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=5079ee9)
|
Type number: 5611B501 |
68.22 € | |
![[142263] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277740/image_128/%5B142263%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=ceb1f17)
|
Type number: 5611B521 |
68.22 € | |
![[142264] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277741/image_128/%5B142264%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=047a458)
|
Type number: 5611B541 |
68.22 € | |
![[142261] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277738/image_128/%5B142261%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=3df229b)
|
Type number: 5611B461 |
68.22 € | |
![[142258] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277735/image_128/%5B142258%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=91ebe43)
|
Type number: 5611B401 |
68.22 € | |
![[142259] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277736/image_128/%5B142259%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=660f55c)
|
Type number: 5611B421 |
68.22 € | |
![[142260] RIEGLER Filter regulator "SYNTESI", BG1, G 1/8, 5µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277737/image_128/%5B142260%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=4e82367)
|
Type number: 5611B441 |
68.22 € | |
![[142281] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277758/image_128/%5B142281%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=c1b927a)
|
Type number: 5613B563 |
68.22 € | |
![[142278] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277755/image_128/%5B142278%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=899b407)
|
Type number: 5613B503 |
68.22 € | |
![[142279] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277756/image_128/%5B142279%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=2dcdbeb)
|
Type number: 5613B523 |
68.22 € | |
![[142280] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277757/image_128/%5B142280%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=201b09c)
|
Type number: 5613B543 |
68.22 € | |
![[142277] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277754/image_128/%5B142277%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=2dd0fe4)
|
Type number: 5613B463 |
68.22 € | |
![[142274] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277751/image_128/%5B142274%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=ebbaf22)
|
Type number: 5613B403 |
68.22 € | |
![[142275] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277752/image_128/%5B142275%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=928827c)
|
Type number: 5613B423 |
68.22 € | |
![[142276] RIEGLER Filter regulator "SYNTESI", BG1, G 3/8, 5µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277753/image_128/%5B142276%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=d5ac7ee)
|
Type number: 5613B443 |
68.22 € | |
![[142257] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277734/image_128/%5B142257%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=4432c4f)
|
Type number: 5610B560 |
66.94 € | |
![[142254] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277731/image_128/%5B142254%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=aad77da)
|
Type number: 5610B500 |
66.94 € | |
![[142255] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277732/image_128/%5B142255%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=046059d)
|
Type number: 5610B520 |
66.94 € | |
![[142256] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277733/image_128/%5B142256%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=6ae1897)
|
Type number: 5610B540 |
66.94 € | |
![[142253] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277730/image_128/%5B142253%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=0b0cf72)
|
Type number: 5610B460 |
66.94 € | |
![[142189] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277727/image_128/%5B142189%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=0820edd)
|
Type number: 5610B400 |
66.94 € | |
![[142222] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277728/image_128/%5B142222%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=3cadb46)
|
Type number: 5610B420 |
66.94 € | |
![[142252] RIEGLER Filter regulator "SYNTESI", BG1, o. B., 5µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277729/image_128/%5B142252%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG1%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=2a0ba0d)
|
Type number: 5610B440 |
66.94 € | |
![[142803] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277804/image_128/%5B142803%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=bba52c6)
|
Type number: 5626B566 |
103.23 € | |
![[142800] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277801/image_128/%5B142800%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=4823573)
|
Type number: 5626B506 |
103.23 € | |
![[142801] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277802/image_128/%5B142801%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=4daa901)
|
Type number: 5626B526 |
103.23 € | |
![[142802] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277803/image_128/%5B142802%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=c17894a)
|
Type number: 5626B546 |
103.23 € | |
![[142709] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277783/image_128/%5B142709%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=2ea85af)
|
Type number: 5624B564 |
94.52 € | |
![[142387] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277779/image_128/%5B142387%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=80d350f)
|
Type number: 5624B504 |
94.52 € | |
![[142395] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277780/image_128/%5B142395%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=8261b8e)
|
Type number: 5624B524 |
94.52 € | |
![[142699] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277782/image_128/%5B142699%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=a107727)
|
Type number: 5624B544 |
94.52 € | |
![[142380] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277778/image_128/%5B142380%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=71e9fa4)
|
Type number: 5624B464 |
94.52 € | |
![[142372] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277775/image_128/%5B142372%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=991fa69)
|
Type number: 5624B404 |
94.52 € | |
![[142375] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277776/image_128/%5B142375%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=ca99e4f)
|
Type number: 5624B424 |
94.52 € | |
![[142377] RIEGLER Filter regulator "SYNTESI", BG2, G 1/2, 5µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277777/image_128/%5B142377%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=d7a4c29)
|
Type number: 5624B444 |
94.52 € | |
![[142799] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277800/image_128/%5B142799%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=408e499)
|
Type number: 5626B466 |
103.23 € | |
![[142796] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277797/image_128/%5B142796%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=3fee33a)
|
Type number: 5626B406 |
103.23 € | |
![[142797] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277798/image_128/%5B142797%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=99bf58e)
|
Type number: 5626B426 |
103.23 € | |
![[142798] RIEGLER Filter regulator "SYNTESI", BG2, G 1, 5µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277799/image_128/%5B142798%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=9c19593)
|
Type number: 5626B446 |
103.23 € | |
![[142795] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277796/image_128/%5B142795%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=729cd8b)
|
Type number: 5625B565 |
103.23 € | |
![[142765] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277788/image_128/%5B142765%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=740f662)
|
Type number: 5625B505 |
103.23 € | |
![[142770] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277789/image_128/%5B142770%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=f7d0a77)
|
Type number: 5625B525 |
103.23 € | |
![[142794] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277795/image_128/%5B142794%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=f996612)
|
Type number: 5625B545 |
103.23 € | |
![[142762] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277787/image_128/%5B142762%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=0b056e5)
|
Type number: 5625B465 |
103.23 € | |
![[142722] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277784/image_128/%5B142722%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=e6d402b)
|
Type number: 5625B405 |
103.23 € | |
![[142725] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277785/image_128/%5B142725%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=6333ad2)
|
Type number: 5625B425 |
103.23 € | |
![[142733] RIEGLER Filter regulator "SYNTESI", BG2, G 3/4, 5µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277786/image_128/%5B142733%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=318b4ee)
|
Type number: 5625B445 |
103.23 € | |
![[142356] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277774/image_128/%5B142356%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=34068aa)
|
Type number: 5623B563 |
94.52 € | |
![[142347] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277771/image_128/%5B142347%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=75d6164)
|
Type number: 5623B503 |
94.52 € | |
![[142350] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277772/image_128/%5B142350%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=ae4a4e2)
|
Type number: 5623B523 |
94.52 € | |
![[142352] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277773/image_128/%5B142352%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=7b26ca1)
|
Type number: 5623B543 |
94.52 € | |
![[142322] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277770/image_128/%5B142322%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=38a187b)
|
Type number: 5623B463 |
94.52 € | |
![[142290] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277767/image_128/%5B142290%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=abad68c)
|
Type number: 5623B403 |
94.52 € | |
![[142291] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277768/image_128/%5B142291%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=01a9fca)
|
Type number: 5623B423 |
94.52 € | |
![[142292] RIEGLER Filter regulator "SYNTESI", BG2, G 3/8, 5µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277769/image_128/%5B142292%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=2489a4a)
|
Type number: 5623B443 |
94.52 € | |
![[142289] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277766/image_128/%5B142289%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=ffc90ee)
|
Type number: 5620B560 |
84.51 € | |
![[142286] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277763/image_128/%5B142286%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=d4e97b1)
|
Type number: 5620B500 |
84.51 € | |
![[142287] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277764/image_128/%5B142287%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=601f012)
|
Type number: 5620B520 |
84.51 € | |
![[142288] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 20µm, 0...8bar, RA, o. Mano.](/web/image/product.template/277765/image_128/%5B142288%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%2020%C2%B5m%2C%200--.8bar%2C%20RA%2C%20o.%20Mano.?unique=b0121a2)
|
Type number: 5620B540 |
84.51 € | |
![[142285] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...10bar, RA, o. Mano.](/web/image/product.template/277762/image_128/%5B142285%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.10bar%2C%20RA%2C%20o.%20Mano.?unique=cf9b8bf)
|
Type number: 5620B460 |
84.51 € | |
![[142282] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...2bar, RA, o. Mano.](/web/image/product.template/277759/image_128/%5B142282%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.2bar%2C%20RA%2C%20o.%20Mano.?unique=fa85984)
|
Type number: 5620B400 |
84.51 € | |
![[142283] RIEGLER Filter regulator "SYNTESI", BG2, o. B., 5µm, 0...4bar, RA, o. Mano.](/web/image/product.template/277760/image_128/%5B142283%5D%20RIEGLER%20Filter%20regulator%20%22SYNTESI%22%2C%20BG2%2C%20o.%20B.%2C%205%C2%B5m%2C%200--.4bar%2C%20RA%2C%20o.%20Mano.?unique=47915e7)
|
Type number: 5620B420 |
84.51 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=236e132)
|
Type number: 217-KD |
6.30 € | |
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=2b365fa)
|
Type number: 206-KD |
6.30 € | |
![[144691] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/8, incl. 2 screws](/web/image/product.template/277873/image_128/%5B144691%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%20incl.%202%20screws?unique=a230588)
|
Type number: 9210011 |
5.85 € | |
![[144692] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1/2, incl. 2 screws](/web/image/product.template/277874/image_128/%5B144692%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20incl.%202%20screws?unique=6d49e78)
|
Type number: 9210012 |
5.85 € | |
![[144693] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/4, incl. 2 screws](/web/image/product.template/277875/image_128/%5B144693%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%20incl.%202%20screws?unique=a76a9c4)
|
Type number: 9210013 |
10.26 € | |
![[144694] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1, incl. 2 screws](/web/image/product.template/277876/image_128/%5B144694%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%20incl.%202%20screws?unique=2d97ca5)
|
Type number: 9210014 |
10.26 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=97e15b0)
|
Type number: 9210010 |
6.88 € | |
![[145469] RIEGLER Mounting bracket, for "SYNTESI" BG 2, etc.](/web/image/product.template/279225/image_128/%5B145469%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20%22SYNTESI%22%20BG%202%2C%20etc.?unique=602c45c)
|
Type number: 9400701 |
4.53 € | |
![[145474] RIEGLER Metal Work pressure gauge, G 1/4 rear, 0-12 bar, Ø63](/web/image/product.template/279230/image_128/%5B145474%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-4%20rear%2C%200-12%20bar%2C%20%C3%9863?unique=a0daeba)
|
Type number: 9900101 |
13.08 € | |
![[145477] RIEGLER Adapter for pressure gauge, G 1/4 AG, G 1/8 IG](/web/image/product.template/279233/image_128/%5B145477%5D%20RIEGLER%20Adapter%20for%20pressure%20gauge%2C%20G%201-4%20AG%2C%20G%201-8%20IG?unique=6b98fd9)
|
Type number: 9210005 |
2.50 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=279bb29)
|
Type number: 9210019 |
6.40 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=062fb2e)
|
Type number: 9210006 |
6.56 € | |
![[145506] RIEGLER Assembly wrench for "SYNTESI" container, BG 2](/web/image/product.template/279262/image_128/%5B145506%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20container%2C%20BG%202?unique=0b9a402)
|
Type number: 9210050 |
78.43 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=0d5ee23)
|
Type number: 9210031 |
0.76 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=0d4ee1b)
|
Type number: 9062401 |
12.10 € | |
![[145614] RIEGLER SYNTESI" container, BG 2, RMSA semi-automatic](/web/image/product.template/279271/image_128/%5B145614%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RMSA%20semi-automatic?unique=1e3a891)
|
Type number: 9210105 |
14.66 € | |
![[145616] RIEGLER SYNTESI" container, BG 2, SAC fully automatic](/web/image/product.template/279273/image_128/%5B145616%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20SAC%20fully%20automatic?unique=c0c8ce5)
|
Type number: 9210107 |
23.12 € | |
![[145623] RIEGLER Filter element "SYNTESI", BG 2, 20 µm](/web/image/product.template/279280/image_128/%5B145623%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=d048404)
|
Type number: 9210156 |
6.50 € | |
![[145624] RIEGLER Filter element "SYNTESI", BG 2, 50 µm](/web/image/product.template/279281/image_128/%5B145624%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=ccfc096)
|
Type number: 9210157 |
6.50 € | |
![[145655] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 20 µm](/web/image/product.template/279312/image_128/%5B145655%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=27a23ef)
|
Type number: 9210232 |
10.84 € | |
![[145656] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 50 µm](/web/image/product.template/279313/image_128/%5B145656%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=e900ad9)
|
Type number: 9210233 |
10.84 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=3ca0a3b)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=0cf8781)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145609] RIEGLER Automatic drain valve "SYNTESI", RA](/web/image/product.template/279266/image_128/%5B145609%5D%20RIEGLER%20Automatic%20drain%20valve%20%22SYNTESI%22%2C%20RA?unique=970b812)
|
Type number: 9000802 |
37.41 € | |

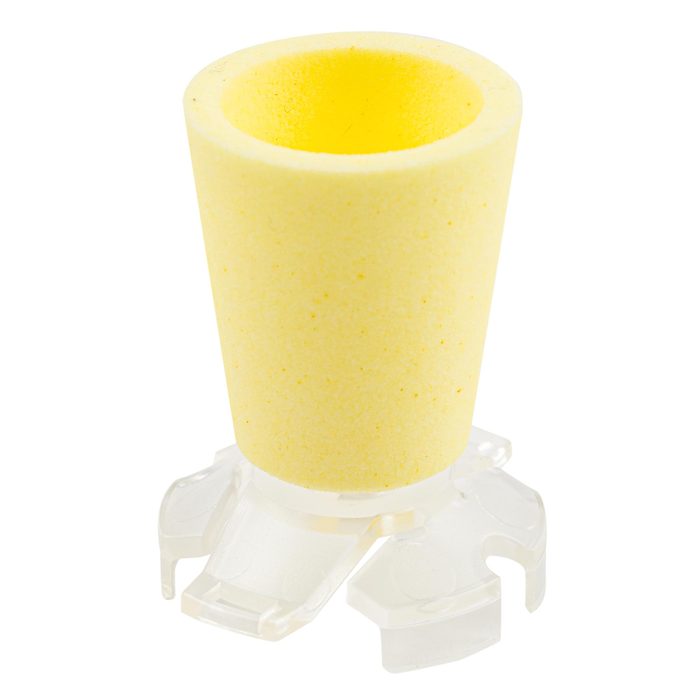

![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=9e4c4f3)
|
Type number: 9210155 |
6.50 € | |

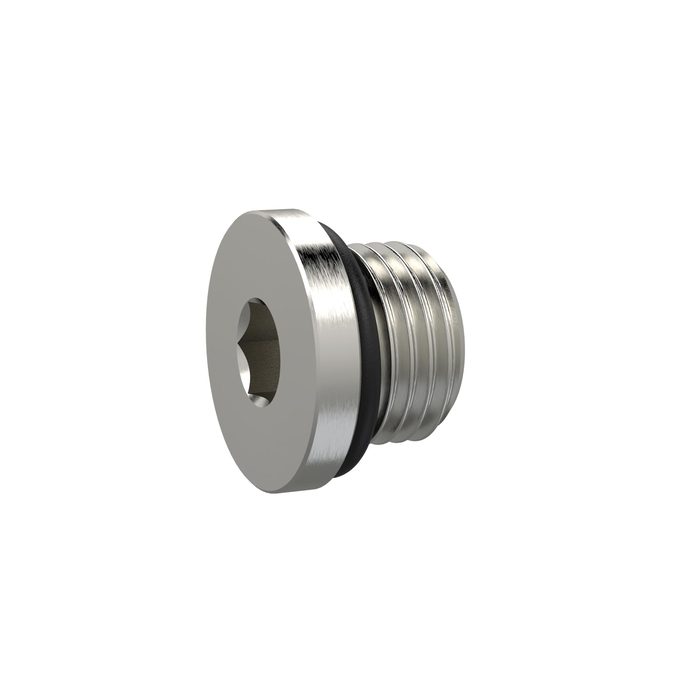

![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=520f07e)
|
Type number: 233.03-N |
0.62 € | |

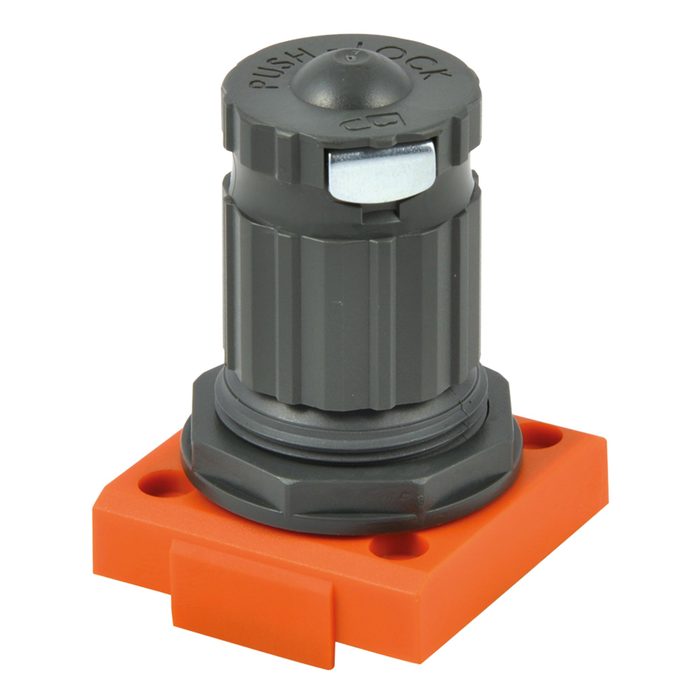

![[145647] RIEGLER Regulator attachment (bell) "SYNTESI", BG 2, 0 - 8 bar](/web/image/product.template/279304/image_128/%5B145647%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%202%2C%200%20-%208%20bar?unique=0898e21)
|
Type number: 9210222 |
23.49 € | |

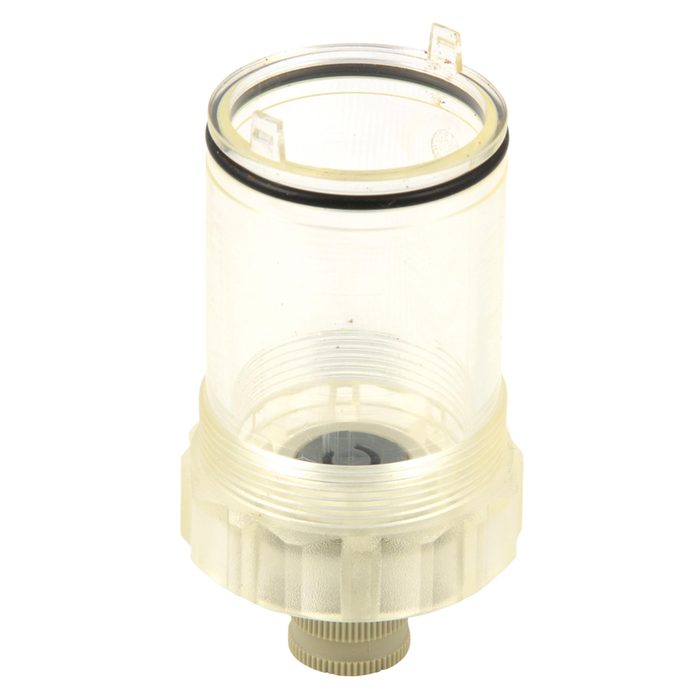

![[145615] RIEGLER SYNTESI" container, BG 2, RA fully automatic](/web/image/product.template/279272/image_128/%5B145615%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RA%20fully%20automatic?unique=296261c)
|
Type number: 9210106 |
38.76 € | |

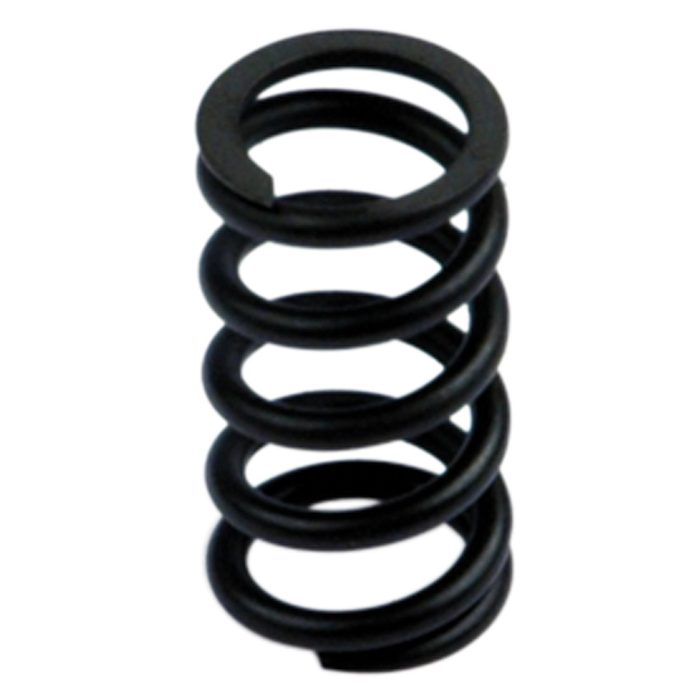

![[145639] RIEGLER SYNTESI" spring, BG 2, 0 - 8 bar](/web/image/product.template/279296/image_128/%5B145639%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%202%2C%200%20-%208%20bar?unique=52e959e)
|
Type number: 9210197 |
3.20 € | |

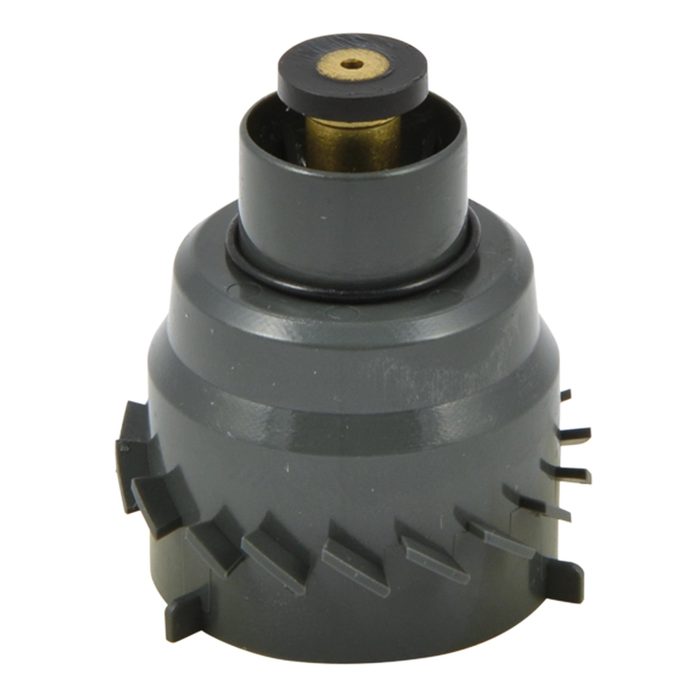

![[145654] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 5 µm](/web/image/product.template/279311/image_128/%5B145654%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=00d4f4c)
|
Type number: 9210231 |
10.84 € | |
