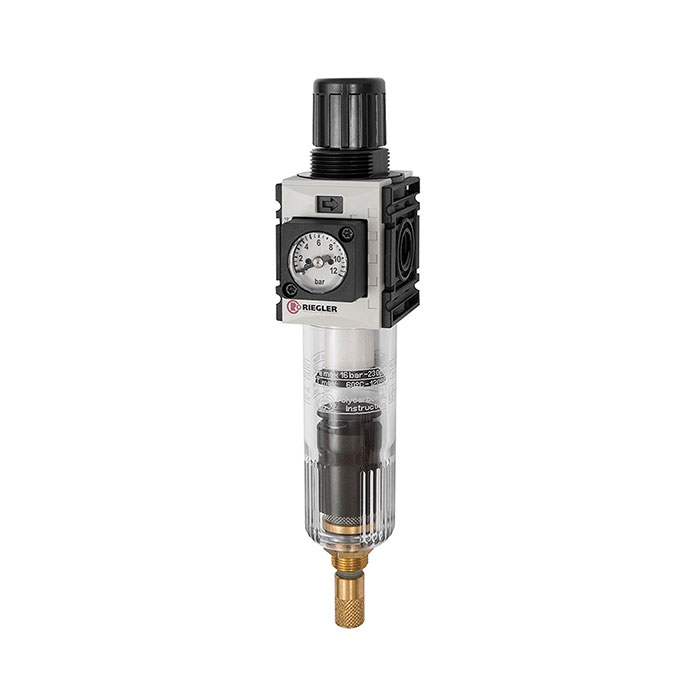

RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4, 0.1-4
Type number: FUM 821-4-KMC
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filter regulator "FUTURA-mini", PC bowl, compact mano, 5 µm, BG 0, G 1/4, PE 1.5 - 12 bar, control range 0.1 - 4 bar, drain VA (NC)
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Polycarbonate container |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1/4 |
| Flow rate | 1000 l/min |
| Control range min. | 0.1 bar |
| Control range max. | 4 bar |
| Condensate drain | fully automatic (pressureless closed) |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 6 bar |
| BG | 0 |
| A | 43 mm |
| B | 206 mm |
| C | 63 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

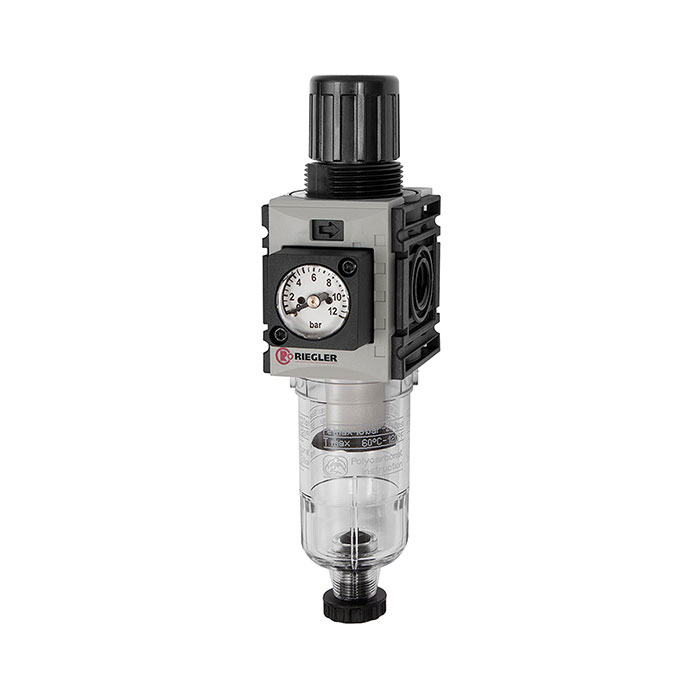

![[142417] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4, 0.1-4](/web/image/product.template/210723/image_128/%5B142417%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C%200.1-4?unique=8b5d497)
|
