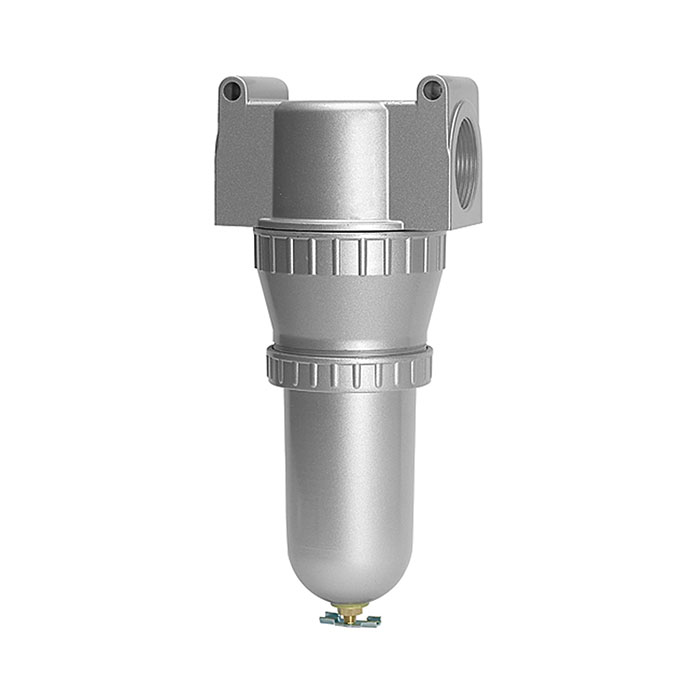

RIEGLER Filter »Standard« with metal container, 5 µm, Size 3, G 1
Type number: 650 E/M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter »Standard« with metal container, 5 µm, Size 3, G 1, Input pressure max. 25 bar, Medium / ambient temperature max. 60 °C
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | with P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 4000 l/min |
| Condensate drain | manually |
| DN | 25 |
| BG | 3 |
| A | 90 mm |
| C | 26.5 mm |
| D | 172.5 mm |
| H | 50 mm |
| Class name | EASY |
