RIEGLER Pressure switch "SYNTESI", BG 2, without sockets, 2 m cable
Type number: 5620S100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Pressure switch "SYNTESI", BG 2, without sockets, 2 m cable, setting range = 0.5 ? 10 bar, p1 = max. 13 bar, T = -10 ? 50°C
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Setting range min. | 0.5 bar |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 101 mm |
| Setting range max. | 10 bar |
| Class name | PLUS |
| Voltage max. | 250 V |
| Hysteresis min. (not adjustable) | 0.4 bar |
| Hysteresis max. (not adjustable) | 0.8 bar |
| Series | Syntesi |
| Protection class | IP65 |
| Electrical connection | 2m cable |
| Function | Changer |
| max. load | 0.08333333333333326 |
| F | 32.5 mm |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

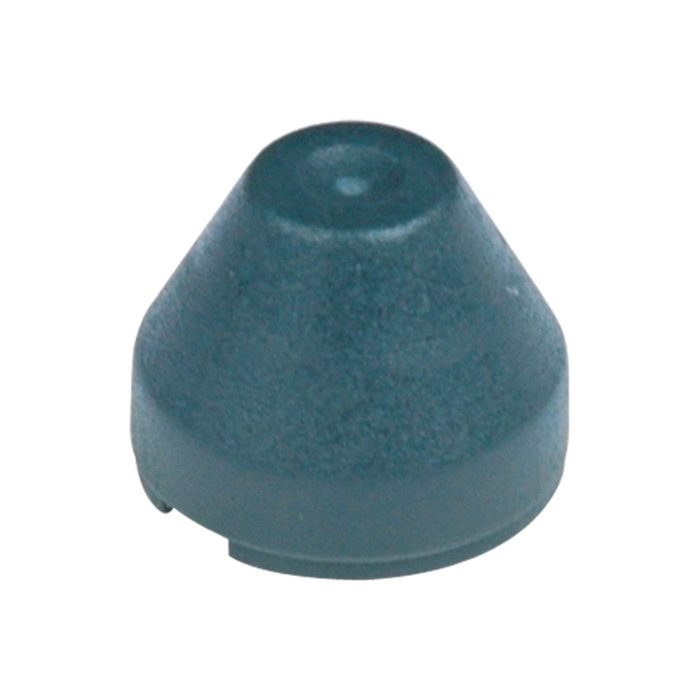

![[145559] RIEGLER Adjustment protection cap for pressure switches and soft start valves](/web/image/product.template/279265/image_128/%5B145559%5D%20RIEGLER%20Adjustment%20protection%20cap%20for%20pressure%20switches%20and%20soft%20start%20valves?unique=b2b2de1)
|
Type number: 9200703 |
3.09 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=e145e4b)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=acd7617)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=aaeebf7)
|
Type number: 233.03-N |
0.62 € | |
