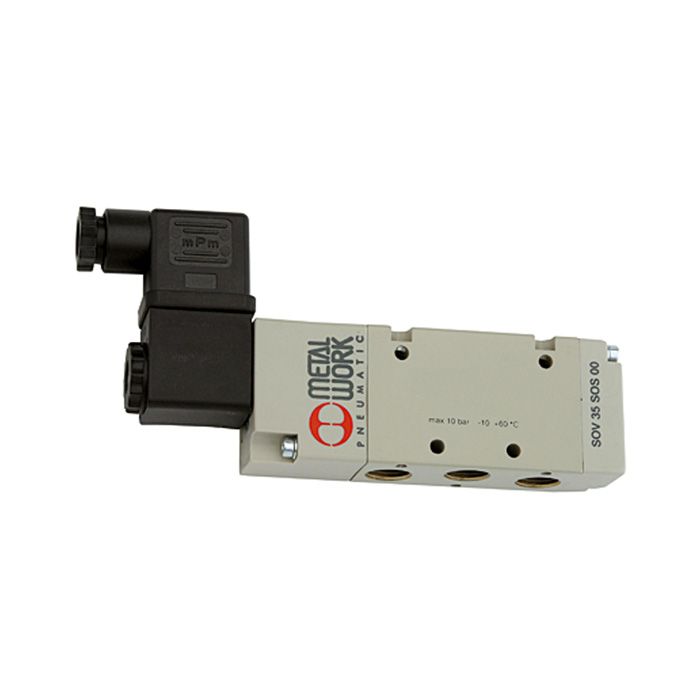

RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/2, 12 V DC

Typennummer: 517.52.12.M.12D

196.46 € 196.46 EUR 196.46 € VAT Included

229.29 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145935

EAN :

4047322774505

Category :

Valves Electropneumatically Operated

Weight :

0.27 kg

Description
Specifications

5/2-way valve, electropneumatic, monostable, G 1/2, 12 V DC, p = 2.5 ? 10 bar, aluminum

Medium	Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material	NBR
Series	Valves Series 70
Operating pressure min.	2.5 bar
Max. operating pressure	10 bar
Medium temperature min.	-10 °C
Medium temperature max.	60 °C
Ambient temperature min.	-10 °C
Ambient temperature max.	50 °C
Manual override	resting
DN	15
Actuation	monostable
Symbol	35
Tension	12 V DC
Connection	G 1/2
Flow 1	3200 Nl/min
Flow 2	4600 Nl/min
Class name	PLUS
Function	45327
Flow rate measurement 1	Flow rate at 6 bar and Δp 0.5 bar
Flow rate measurement 2	Flow rate at 6 bar and Δp 1.0 bar

Variants / Alternatives

Product		Price
	[145936] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/2, 24 V AC Typennummer: 517.52.12.M.24A	196.46 €	Add to cart

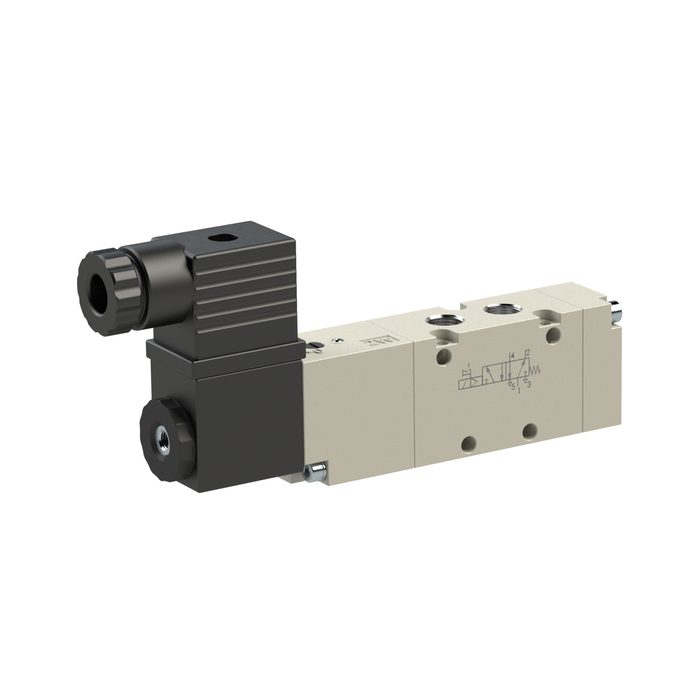

	[106547] RIEGLER 5/2-way valve, electropneum., monostable, G 1/2, DN 15, 24 V DC Type number: 517.203	196.46 €	Add to cart

Maintenance, wear and spare parts

	Price

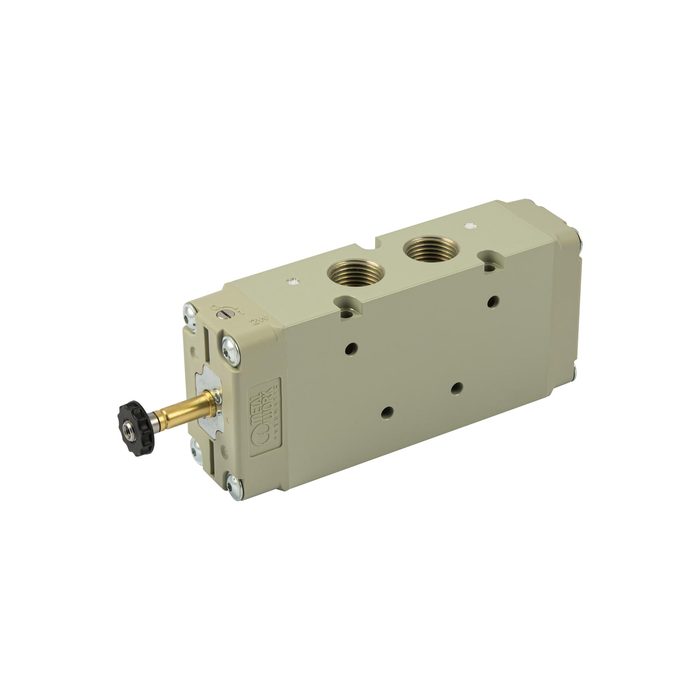

[145706] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/2 Type number: 7030021100	185.12 €	Add to cart
[117313] RIEGLER Device plug, 22 mm, type B Type number: 1920.9P	1.48 €	Add to cart
[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W Type number: 400-514-41	9.87 €	Add to cart
