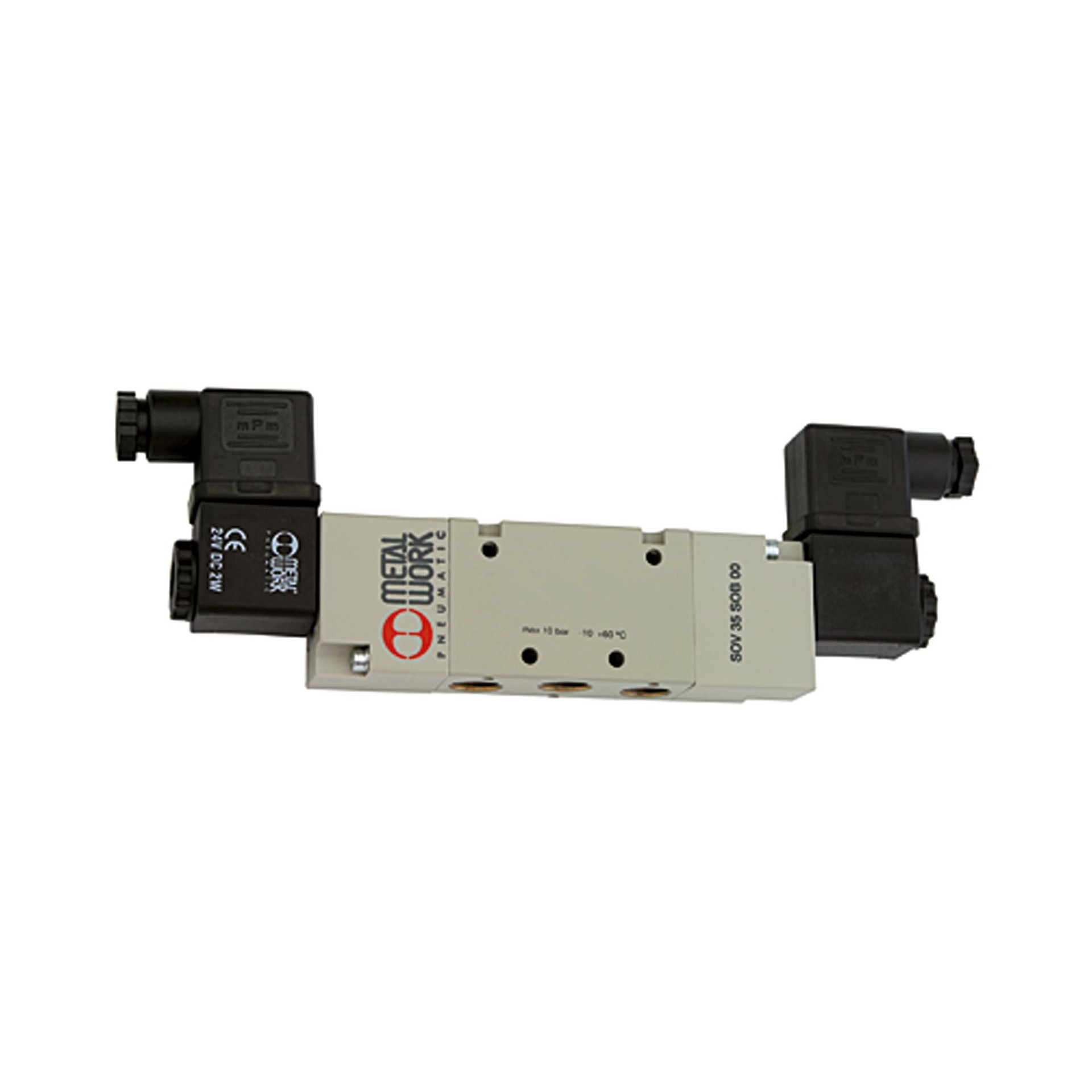

RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 3/8, 12 V DC
Type number: 517.52.38.E.B.12D
EAN: 4047322790192
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Electronic temperature switch, TSD-30, 2 switching outputs PNP, IO-Link, 4 - 20 mA, -20 to 80 °C, M12x1, 5-pin, G 1/2, 50 mm
| Execution | electropneumatic |
| DN | 133 |
| Control air supply | external |
| Symbol | 60 |
| Scope of delivery | with plug and coil |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow_2 | 2150 Nl/min |
| Flow_1 | 1560 Nl/min |
| Actuation | bistable |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Function | 5/2 |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Tension | 12 V DC |
| Control pressure min. | 2.5 bar |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Pilot air connection | G 1/8 |
| Connection | G 3/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
