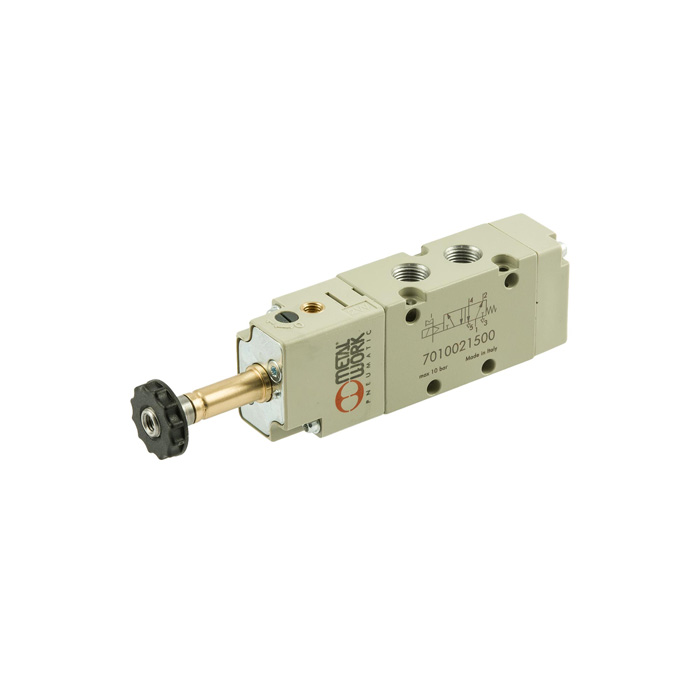

RIEGLER 5/2-way valve, electropneumatic, monostable, G 3/8

Price:

102.20 €

English (US)
  2. Shop
  3. Valves Electropneumatically Operated
  4. RIEGLER 5/2-way valve, electropneumatic, monostable, G 3/8
RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/2
RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/2
185.12 € 185.12 €
RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/2, 12 V DC
RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/2, 12 V DC
196.46 € 196.46 €

RIEGLER 5/2-way valve, electropneumatic, monostable, G 3/8

https://www.filcom-technik.de/web/image/product.template/279332/image_1920?unique=f5afaa1

Type number: 7040021100

102.20 € 102.2 EUR 102.20 € VAT Included

119.28 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145705

EAN :

4047322771764

Category :

Valves Electropneumatically Operated

Weight :

0.33 kg

5/2-way valve, electropneumatic, monostable, G 3/8, p = 2.5 ? 10 bar, T = -10 ? 60 °C, aluminum, without plug/coil

Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Series Valves Series 70
Operating pressure min. 2.5 bar
Max. operating pressure 10 bar
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 60 °C
Manual override resting
DN 45364
Actuation monostable
Symbol 35
Connection G 3/8
Flow 1 1560 Nl/min
Flow 2 2150 Nl/min
Class name PLUS
Function 45327
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
