RIEGLER 3/2-way valve, electropneumatic, bistable, G 1/2, 110 V AC

Typennummer: 517.32.12.B.110A

210.30 € 210.3 EUR 210.30 € VAT Included

245.45 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145946

EAN :

4047322774611

Category :

Valves Electropneumatically Operated

Weight :

0.01 kg

Description
Specifications

3/2-way valve, electropneumatic, bistable, G 1/2, 110 V AC, 50/60 Hz, p = 1 ? 10 bar, aluminum

Medium	Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material	NBR
Series	Valves Series 70
Operating pressure min.	1 bar
Max. operating pressure	10 bar
Medium temperature min.	-10 °C
Medium temperature max.	60 °C
Ambient temperature min.	-10 °C
Ambient temperature max.	50 °C
Manual override	resting
DN	15
Actuation	bistable
Symbol	34
Connection	G 1/2
Flow 1	3200 Nl/min
Flow 2	4600 Nl/min
Class name	PLUS
Function	45325
Tension	110 V, 50/60 Hz
Flow rate measurement 1	Flow rate at 6 bar and Δp 0.5 bar
Flow rate measurement 2	Flow rate at 6 bar and Δp 1.0 bar

Maintenance, wear and spare parts

	Price

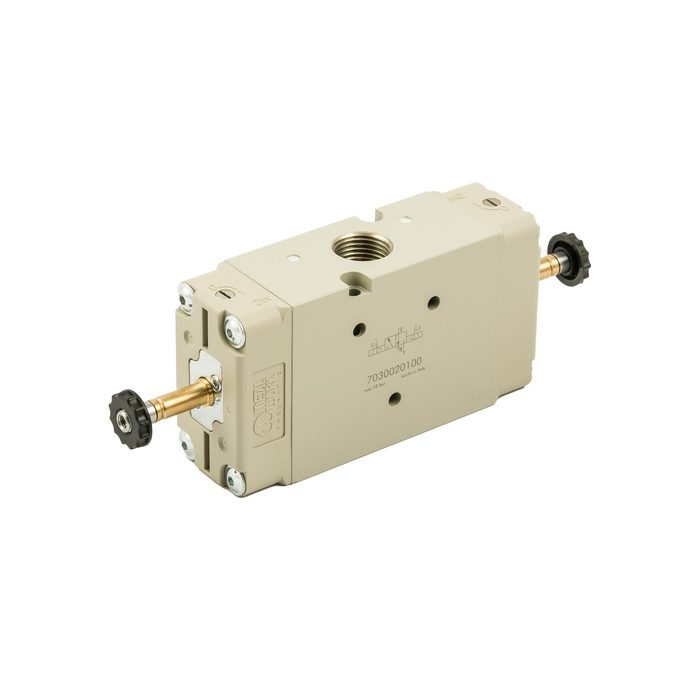

[145702] RIEGLER 3/2-way valve, electropneumatic, bistable, G 1/2 Type number: 7030020100	198.97 €	Add to cart
[117313] RIEGLER Device plug, 22 mm, type B Type number: 1920.9P	1.48 €	Add to cart
[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA Type number: 400-514-07	9.87 €	Add to cart
