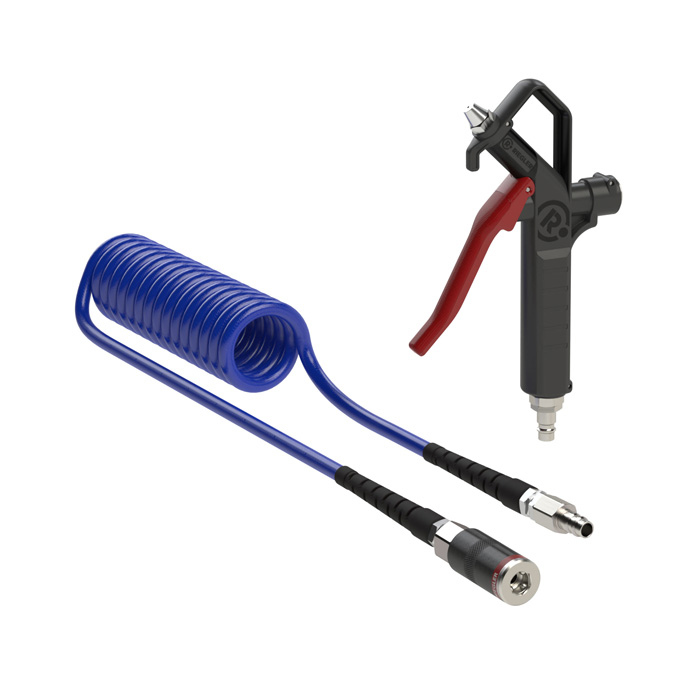

RIEGLER Spiral hose gun set plastic PU hose ø 10x6.5, max. 3m
Typennummer: SPPSKR10300PU
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral hose gun set plastic PU hose ø made of polyurethane (spiral hose) - type SPPSKR10300PU
The RIEGLER spiral hose gun set plastic PU hose ø 10x6.5, max. 3 m flexibly and reliably conducts compressed air from the compressor to the consumer. The housing is made of polyurethane (spiral hose). Designed for a maximum operating pressure of 11 bar. The operating temperature is between -10 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. Hose Ø 10x6.5 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Max. operating pressure | 11 bar |
| Material | Polyurethane (spiral hose) |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Thread | G 1/4 |
| Hose Ø | 10x6.5 mm |
| Windings | 16 |
| Working length max. | 3 m |
| outer winding Ø | 69 mm |
| Connection type | Nipple NW 7.2 |
| Class name | MAX |
| Hand lever | Polyamide with glass fiber (PA6 GF30) |
| Gun body | Polypropylene (PP) |
| Nozzle type | Standard nozzle |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

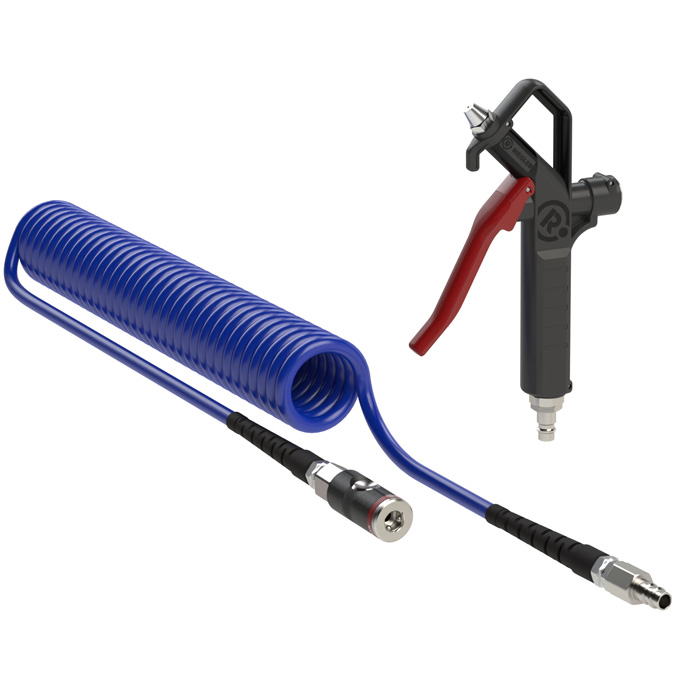

![[146091] RIEGLER Spiral hose gun set plastic PU hose ø 10x6.5, max. 6m](/web/image/product.template/275904/image_128/%5B146091%5D%20RIEGLER%20Spiral%20hose%20gun%20set%20plastic%20PU%20hose%20%C3%B8%2010x6.5%2C%20max.%206m?unique=804122e)
|
Typennummer: SPPSKR10600PU |
103.18 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[107551] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / galv. steel, G 1/4 IT](/web/image/product.template/191452/image_128/%5B107551%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20galv.%20steel%2C%20G%201-4%20IT?unique=36bddb2)
|
Type number: 243.55 ST |
2.96 € | |
![[158160] RIEGLER Spiral hose, Fitting, Kink protection spring, PU, Ø 10x6.5, 3 m](/web/image/product.template/214645/image_128/%5B158160%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Kink%20protection%20spring%2C%20PU%2C%20%C3%98%2010x6.5%2C%203%20m?unique=4b44377)
|
Type number: SP10300PU |
54.03 € | |

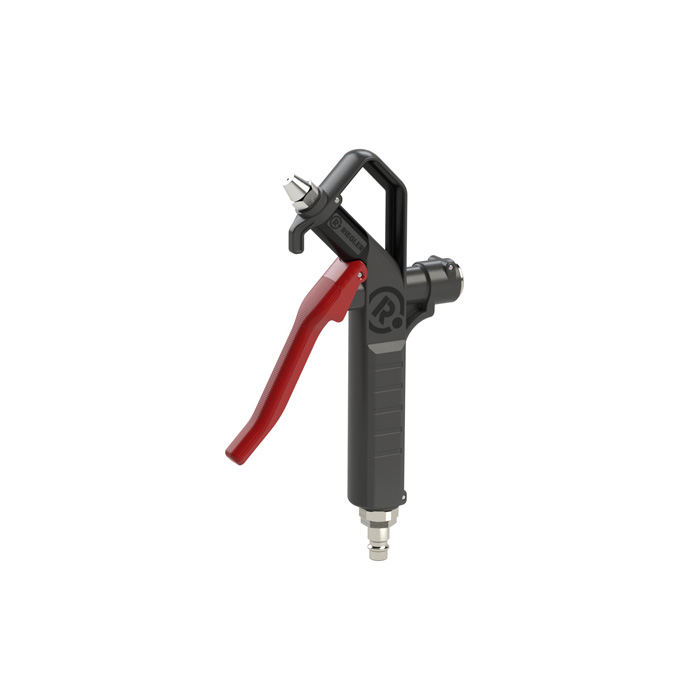

![[129371] RIEGLER Blow gun, plastic, standard d., and connecting nipple NW 7.2](/web/image/product.template/281249/image_128/%5B129371%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20standard%20d.%2C%20and%20connecting%20nipple%20NW%207.2?unique=2a1f277)
|
