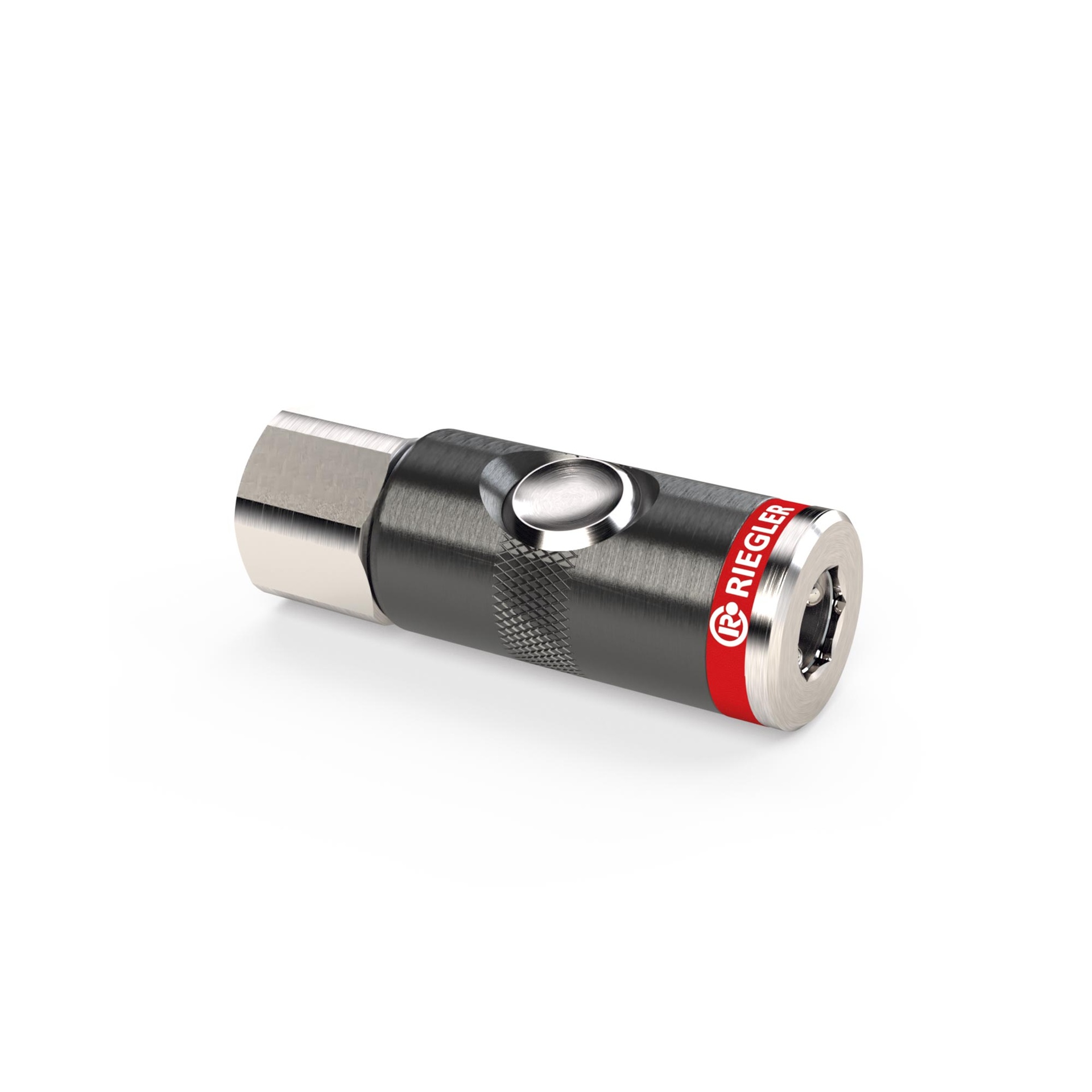

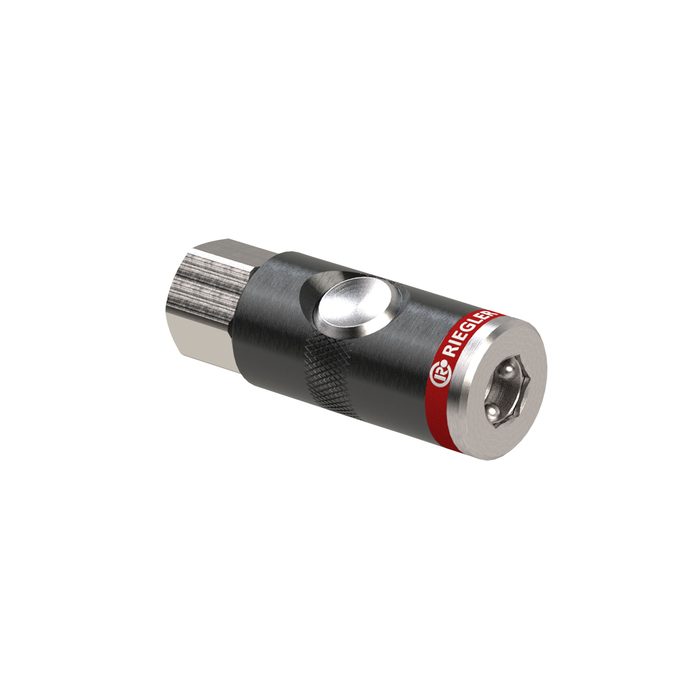

RIEGLER Push-button safety coupling NW 7,4, G1/4IG
Type number: DKSKIG14
EAN: 4047322698429
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-button safety coupling NW 7.4, rotatable, aluminum, G 1/4 female, operating pressure 12bar, medium/ambient temp. -20°C to 70°C
| Connection | G 1/4 FEMALE THREAD |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.4 and 4 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6b, 6c |
| Max. operating pressure | 12 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |
| Flow rate | 1600 l/min (air) |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Housing | Aluminum, anodized |
| Threaded piece | Nickel-plated brass |
| Interior parts | Stainless steel 1.4301 |
| Class name | MAX |
| Button | Hardened and galvanized steel |
| Length | 71.3 mm |
| Material identification | CW614N, AL2011 |
| Medium temperature max. | 70 °C |
| Medium temperature min. | -20 °C |
| NW | 74 |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW | 21 mm |
| Ambient temperature max. | 70 °C |
| Ambient temperature min. | -20 °C |
| Valve | Hardened and galvanized steel |
