RIEGLER 1/3 Tube fitting G11/4x25 taper seat without collar lightw.,Brass
Typennummer: SV11425MS13FL
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 1/3 brass hose fitting CW614N, for pneumatic installation, max. 16 bar - type SV11425MS13FL
The RIEGLER 1/3 hose connector G11/4x25 flat without collar, light MS version connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of brass CW614N. The operating pressure range is 0 bar to 16 bar. The operating temperature is between -10 °C and 100 °C. Connection thread G 1 1/4 - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 16 bar |
| Material | Brass CW614N |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | G 1 1/4 |
| for hose | 25 mm |
| D | 41.3 mm |
| L1 | 39.8 mm |
| L2 | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146150] RIEGLER 1/3 Tube fitting G11/2x32 taper seat without collar lightw.,Brass](/web/image/product.template/210424/image_128/%5B146150%5D%20RIEGLER%201-3%20Tube%20fitting%20G11-2x32%20taper%20seat%20without%20collar%20lightw.%2CBrass?unique=bf0b21f)
|
Typennummer: SV11232MS13FL |
3.96 € | |
![[146151] RIEGLER 1/3 Tube fitting G11/2x38 taper seat without collar lightw.,Brass](/web/image/product.template/210425/image_128/%5B146151%5D%20RIEGLER%201-3%20Tube%20fitting%20G11-2x38%20taper%20seat%20without%20collar%20lightw.%2CBrass?unique=0dc2ffe)
|
Typennummer: SV11238MS13FL |
5.95 € | |
![[146142] RIEGLER 1/3 Tube fitting G1/2x10 taper seat, without collar lightw.,Brass](/web/image/product.template/210416/image_128/%5B146142%5D%20RIEGLER%201-3%20Tube%20fitting%20G1-2x10%20taper%20seat%2C%20without%20collar%20lightw.%2CBrass?unique=5527a3b)
|
Typennummer: SV1210MS13FL |
0.65 € | |
![[146143] RIEGLER 1/3 Tube fitting G1/2x13 taper seat, without collar lightw.,Brass](/web/image/product.template/210417/image_128/%5B146143%5D%20RIEGLER%201-3%20Tube%20fitting%20G1-2x13%20taper%20seat%2C%20without%20collar%20lightw.%2CBrass?unique=9154574)
|
Typennummer: SV1213MS13FL |
0.76 € | |
![[146147] RIEGLER 1/3 Tube fitting G1x19 taper seat, without collar lightw.,Brass](/web/image/product.template/210421/image_128/%5B146147%5D%20RIEGLER%201-3%20Tube%20fitting%20G1x19%20taper%20seat%2C%20without%20collar%20lightw.%2CBrass?unique=953b1a4)
|
Typennummer: SV1019MS13FL |
1.27 € | |
![[146148] RIEGLER 1/3 Tube fitting G1x25 taper seat, without collar lightw.,Brass](/web/image/product.template/210422/image_128/%5B146148%5D%20RIEGLER%201-3%20Tube%20fitting%20G1x25%20taper%20seat%2C%20without%20collar%20lightw.%2CBrass?unique=935256b)
|
Typennummer: SV1025MS13FL |
1.51 € | |
![[146152] RIEGLER 1/3 Tube fitting G2x50 taper seat, without collar lightw.,Brass](/web/image/product.template/210426/image_128/%5B146152%5D%20RIEGLER%201-3%20Tube%20fitting%20G2x50%20taper%20seat%2C%20without%20collar%20lightw.%2CBrass?unique=d466273)
|
Typennummer: SV2050MS13FL |
10.56 € | |
![[146144] RIEGLER 1/3 Tube fitting G3/4x13 taper seat, without collar lightw.,Brass](/web/image/product.template/210418/image_128/%5B146144%5D%20RIEGLER%201-3%20Tube%20fitting%20G3-4x13%20taper%20seat%2C%20without%20collar%20lightw.%2CBrass?unique=a574508)
|
Typennummer: SV3413MS13FL |
0.80 € | |

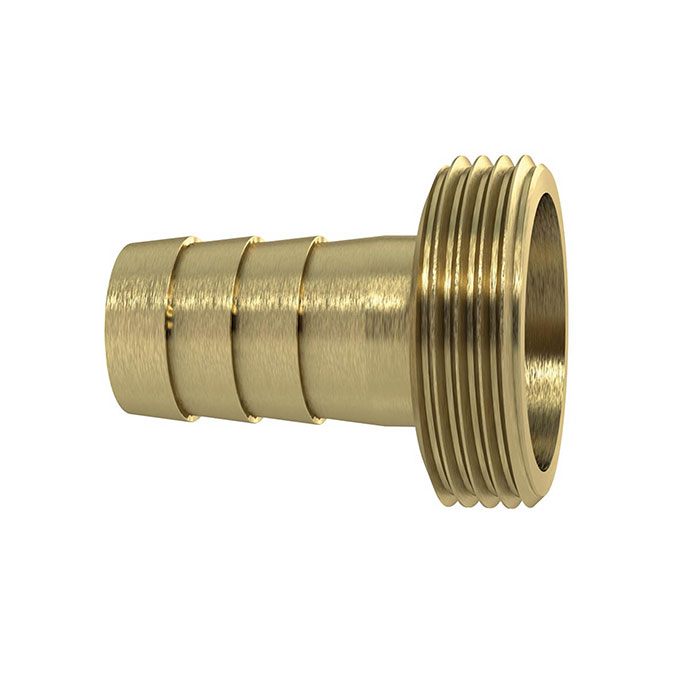

![[146145] RIEGLER 1/3 Tube fitting G3/4x16 taper seat, without collar lightw.,Brass](/web/image/product.template/210419/image_128/%5B146145%5D%20RIEGLER%201-3%20Tube%20fitting%20G3-4x16%20taper%20seat%2C%20without%20collar%20lightw.%2CBrass?unique=1f8e19f)
|
