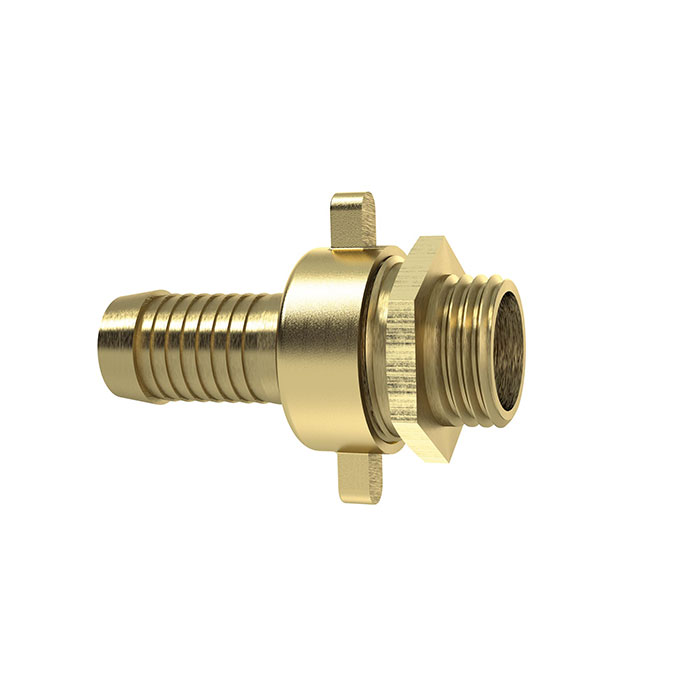

RIEGLER 3/3 Stand pipe fitting G1/2 ETx13, nut 3/4, taper seat, Brass
Typennummer: SRV1213MS33F
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/3 standpipe fitting made of brass CW614N, for pneumatic installation, max. 16 bar - Type SRV1213MS33F
The RIEGLER 3/3 standpipe connector, G 1/2 AGx13, nut 3/4, flat seal, MS connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of brass CW614N. The operating pressure range is 0 bar to 16 bar. The operating temperature is between -10 °C and 100 °C. G 1/2 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 16 bar |
| Material | Brass CW614N |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | G 1/2 |

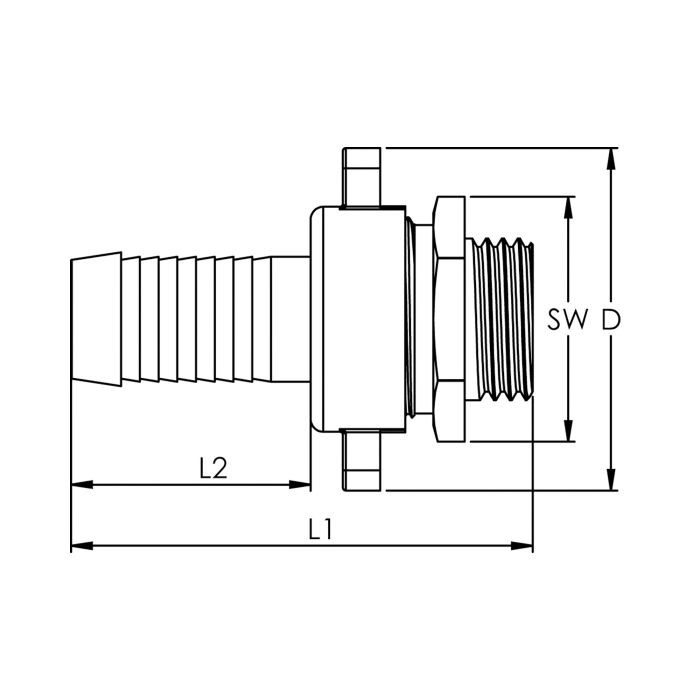

| SW | 27 mm |
| for hose | 13 mm |
| D | 49 mm |
| L1 | 65.5 mm |
| L2 | 33 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Union nut | 45385 |
| Class name | FLEX |
