RIEGLER 3/3 Stand pipe fitting G1 ETx25 nut1 1/4, taper seat, lightweight
Typennummer: SRV1025MS33FL
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

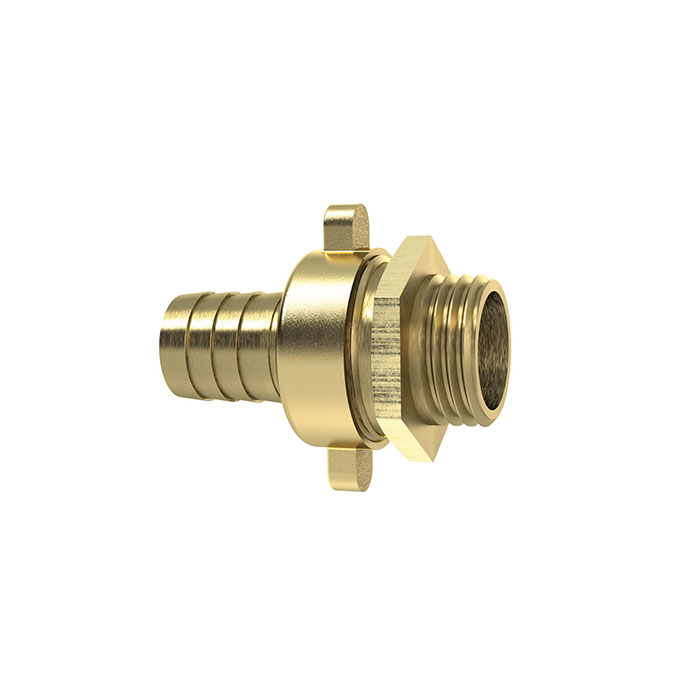

RIEGLER 3/3 standpipe valve made of brass CW614N, for pneumatic installation, max. 16 bar - Type SRV1025MS33FL
The RIEGLER 3/3 standpipe connector, G 1 AGx25, nut 1 1/4, flat, lightweight, MS connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of brass CW614N. The operating pressure range is 0 bar to 16 bar. The operating temperature is between -10 °C and 100 °C. Connection thread G 1 - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 16 bar |
| Material | Brass CW614N |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | G 1 |

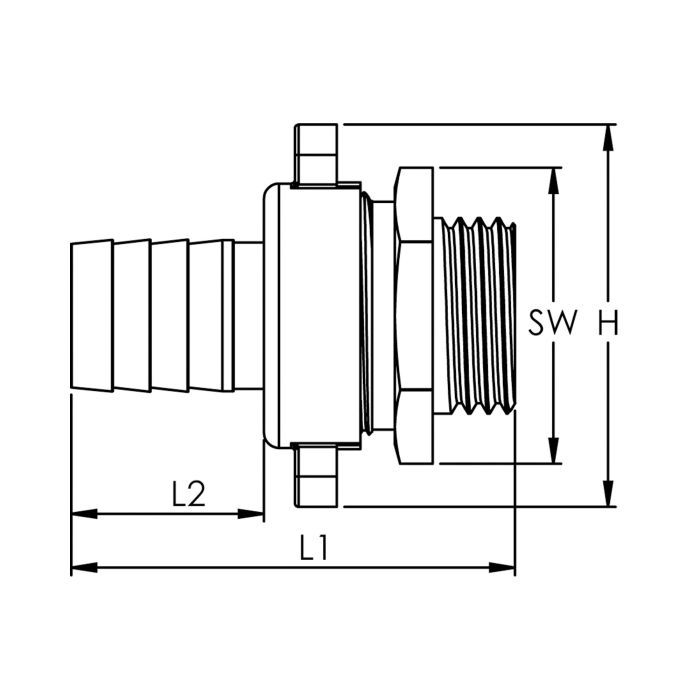

| SW | 41 mm |
| for hose | 25 mm |
| D | 63.4 mm |
| L1 | 69.5 mm |
| L2 | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Union nut | 1.25 |
| Class name | FLEX |
