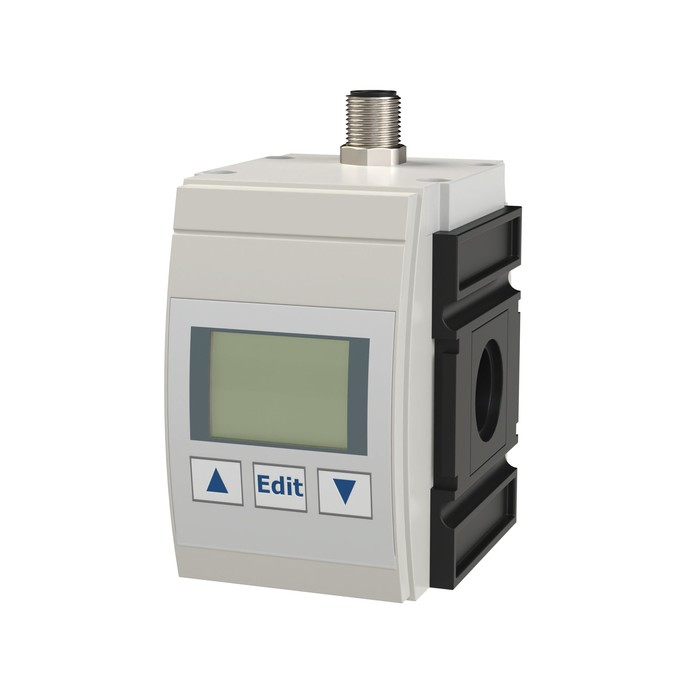

RIEGLER differential pressure flow meter "FUTURA", BG 2, IO-Link
Type number: KDDM-2.2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Differential pressure flow meter "FUTURA" for pressure measurement, compressed air, neutral gases - Type KDDM-2.2
The RIEGLER differential pressure flow meter "FUTURA", BG 2, IO-Link measures pressure or temperature reliably and precisely. The maximum inlet pressure is 16 bar. The temperature range extends between -10 °C and 50 °C. Suitable for compressed air, neutral gases. Protection class IP 65. Reliable measured values for safe processes.
Field of application
Typical areas of application: Pressure monitoring and temperature control.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Series | FUTURA |
| Protection class | IP 65 |
| Measuring system | Differential pressure method |
| Display | with |
| Required cleanliness class according to ISO 8573-1 | 6.4.4 |
| Flow direction | unidirectional |
| Digital output | PNP / NPN |
| Analogue output | 0 - 5 V DC / 0 - 10 V DC / 4 - 20 mA |
| BG | 2 |
| Flow measuring range min. | 20 l/min |
| Flow measuring range max. | 2000 l/min |
| Theme shop | SAFETY |
| Class name | MAX |
| Operating voltage min. | 12 V DC |
| Operating voltage max. | 36 V DC |
| IO-Link | with |
| WiFi | without |
| Supply voltage | 24 ± 50 % V DC |
