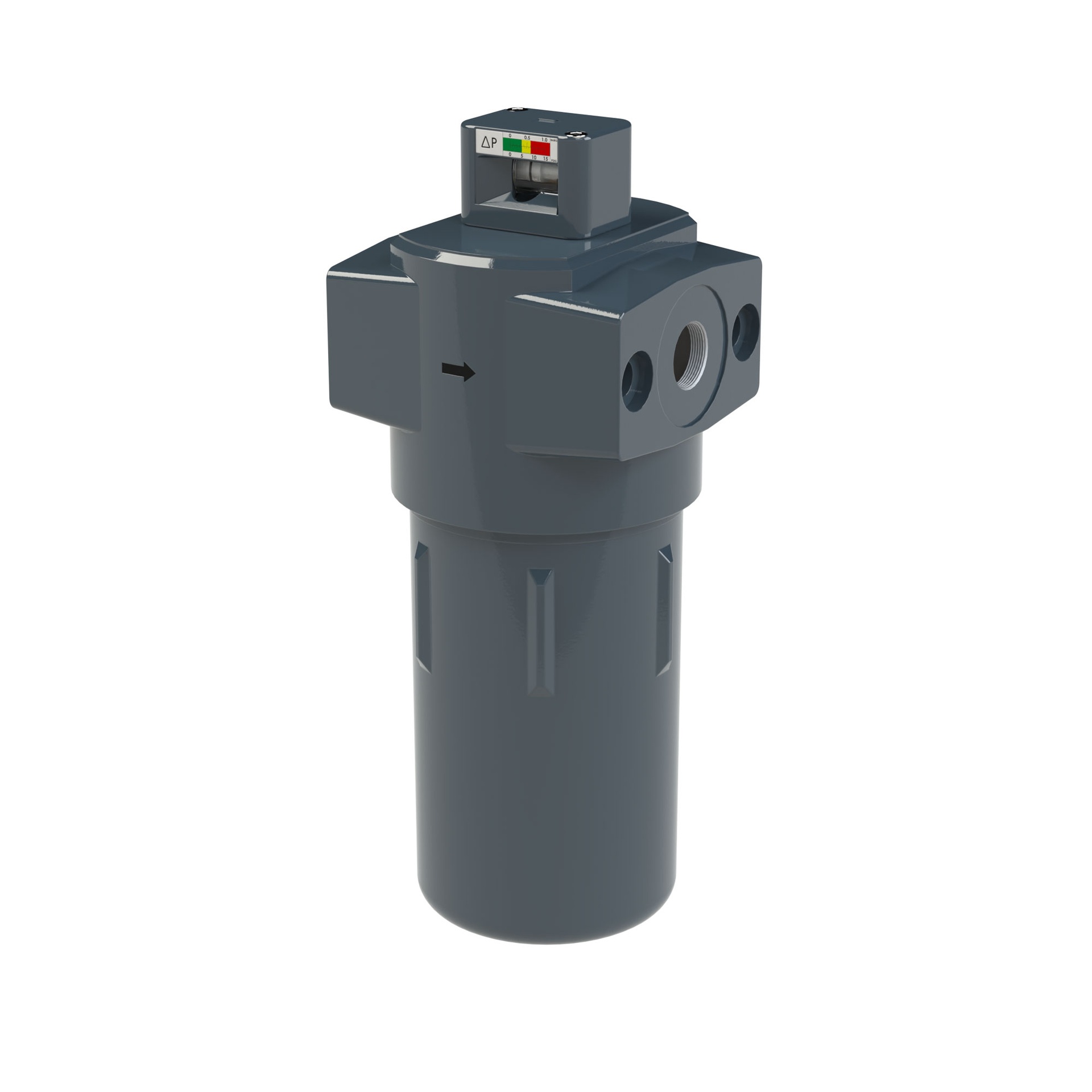

RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 3/4
Typennummer: FSPA.G34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter w. aluminum differential pressure gauge, for compressed air treatment - Type FSPA.G34
The RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 3/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 16 bar. The temperature range is between 5 °C and 50 °C. G 3/4 connection thread - suitable for common industry standards. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Display range of the | 1 bar |
| Execution | with differential pressure gauge |
| Steam trap | semi-automatic drain valve |
| D | 259 mm |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Flow 1 | 3000 l/min |
| Display range of the | 0 bar |
| Residual oil content | 0.003 mg/m³ |
| A | 130 mm |
| Inlet pressure max. | 16 bar |
| Inlet pressure min. | 4 bar |
| C | 43 mm |
| Temperature range min. | 5 °C |
| Temperature range max. | 50 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Filter element | Activated carbon |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 3/4 |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[147702] RIEGLER connection set for 2 filters, G 3/4 to G 1 1/2](/web/image/product.template/284400/image_128/%5B147702%5D%20RIEGLER%20connection%20set%20for%202%20filters%2C%20G%203-4%20to%20G%201%201-2?unique=2eb76e3)
|
Typennummer: VBSFSP.2.G34-G112 |
93.66 € | |
![[147704] RIEGLER connection set for 3 filters, G 3/4 to G 1 1/2](/web/image/product.template/284402/image_128/%5B147704%5D%20RIEGLER%20connection%20set%20for%203%20filters%2C%20G%203-4%20to%20G%201%201-2?unique=380c44c)
|
Typennummer: VBSFSP.3.G34-G112 |
88.81 € | |
![[147706] RIEGLER wall mounting set for 1 filter, G 3/4 to G 1 1/2](/web/image/product.template/284404/image_128/%5B147706%5D%20RIEGLER%20wall%20mounting%20set%20for%201%20filter%2C%20G%203-4%20to%20G%201%201-2?unique=9052347)
|
Typennummer: WMSFSP.G34-G112 |
39.94 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[146967] RIEGLER differential pressure gauge, 0 - 1 bar](/web/image/product.template/284052/image_128/%5B146967%5D%20RIEGLER%20differential%20pressure%20gauge%2C%200%20-%201%20bar?unique=0e2156a)
|
Typennummer: FSPDM.0-1B |
53.26 € | |
![[147728] RIEGLER filter element for activated carbon filter, 0.003 mg/m³, G 3/4](/web/image/product.template/284426/image_128/%5B147728%5D%20RIEGLER%20filter%20element%20for%20activated%20carbon%20filter%2C%200.003%20mg-m%C2%B3%2C%20G%203-4?unique=230c160)
|
Typennummer: FEFSPA.G34 |
53.98 € | |
![[147709] RIEGLER semi-automatic drain valve for activated charcoal filter, G 1/4 - G 1 1/2](/web/image/product.template/284407/image_128/%5B147709%5D%20RIEGLER%20semi-automatic%20drain%20valve%20for%20activated%20charcoal%20filter%2C%20G%201-4%20-%20G%201%201-2?unique=fc22e5c)
|
Typennummer: HAAFSPVM.G14-G112 |
32.38 € | |
