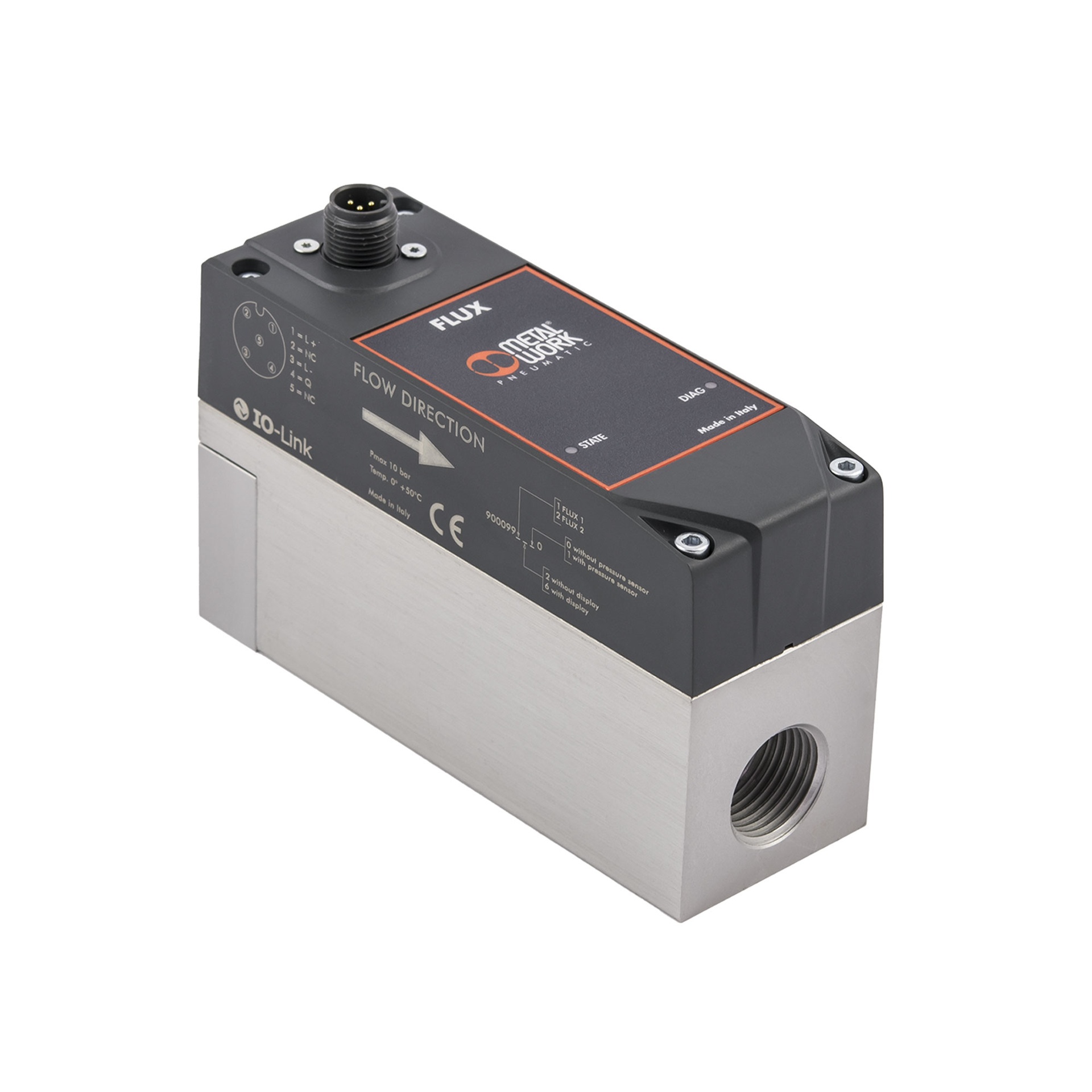

RIEGLER flow meter "FLUX", BG 1, IO-Link
Typennummer: 9000991200
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Flow meter "FLUX", BG 1, 0?2000 Nl/min, G 1/2, p1 = 0?10 bar, T = 0?50 °C, 12?24 V DC, with IO-Link
| WiFi | without |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC * |
| Compatible with app | no |
| IO-Link | with |
| Flow measuring range min. | 0 Nl/min |
| Flow measuring range max. | 2000 Nl/min |
| Pressure sensor | without |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| Function | Flow meter/switch, manometer/thermometer, pressure switch |
| Analogue output | 0 - 10 V / 4 - 20 mA |
| Output of the measured values | only via cable |
| Digital output | one allocated bit |
| Hysteresis | adjustable |
| Flow direction | unidirectional |
| Display | without |
| Measuring system | thermal |
| Series | FLUX |
| Medium | filtered, unlubricated compressed air and neutral gases |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| BG | 1 |
| Temperature range min. | 0 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| A | 116 mm |
| Temperature range max. | 50 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| B | 79 mm |
| Housing | Aluminum |
| Connection | G 1/2 IG |
| Protection class | IP 65 |
| Class name | MAX |
| Theme shop | SAFETY |
