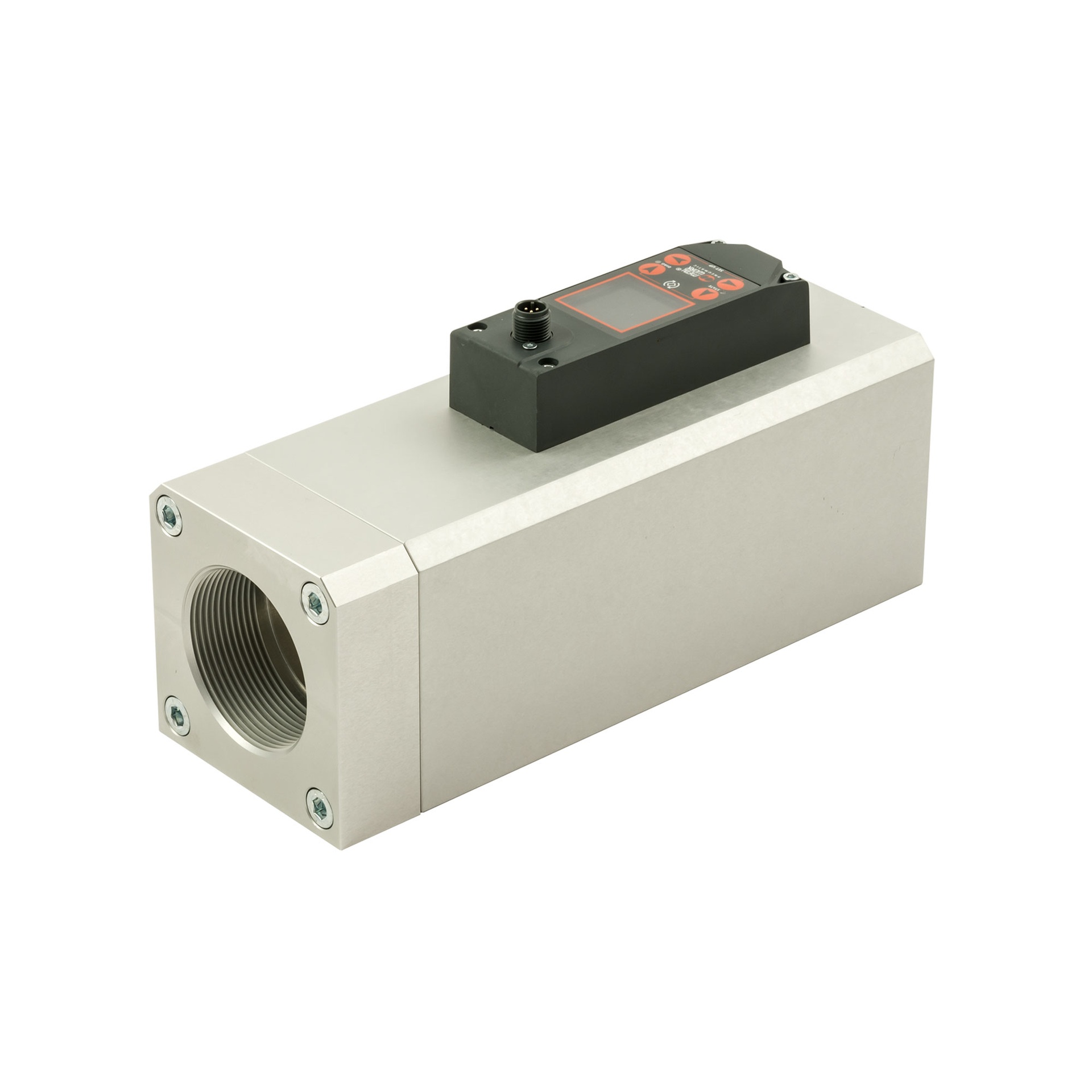

RIEGLER "FLUX" flow meter, BG 4, IO-Link/display/pressure sensor/WiFi
Typennummer: 9000994611
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Flow meter "FLUX" made of aluminum, for pressure measurement, max. 10 bar - type 9000994611
The RIEGLER flow meter "FLUX", BG 4, IO-Link/display/pressure sensor/WiFi measures pressure or temperature reliably and precisely. The housing is made of aluminum. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 50 °C. Connection thread G 2 IG - suitable for common industry standards. Suitable for filtered, non-lubricated compressed air and neutral gases. Protection class IP 65. Reliable measured values for safe processes.
Field of application
Typical areas of application: Pressure monitoring and temperature control.
| Connection | G 2 IG |
| WiFi | with |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC * |
| Compatible with app | yes |
| IO-Link | with |
| Flow measuring range min. | 0 Nl/min |
| Flow measuring range max. | 15000 Nl/min |
| Pressure sensor | with |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| A | 246.5 mm |
| Function | Flow meter/switch, manometer/thermometer, pressure switch |
| Analogue output | 0 - 10 V / 4 - 20 mA |
| Output of the measured values | via cable and display |
| Digital output | one allocated bit |
| Hysteresis | adjustable |
| Flow direction | unidirectional |
| Display | with |
| Measuring system | thermal |
| Series | FLUX |
| Medium | filtered, unlubricated compressed air and neutral gases |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| BG | 4 |
| Temperature range min. | 0 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| B | 127 mm |
| Temperature range max. | 50 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Housing | Aluminum |
| Protection class | IP 65 |
