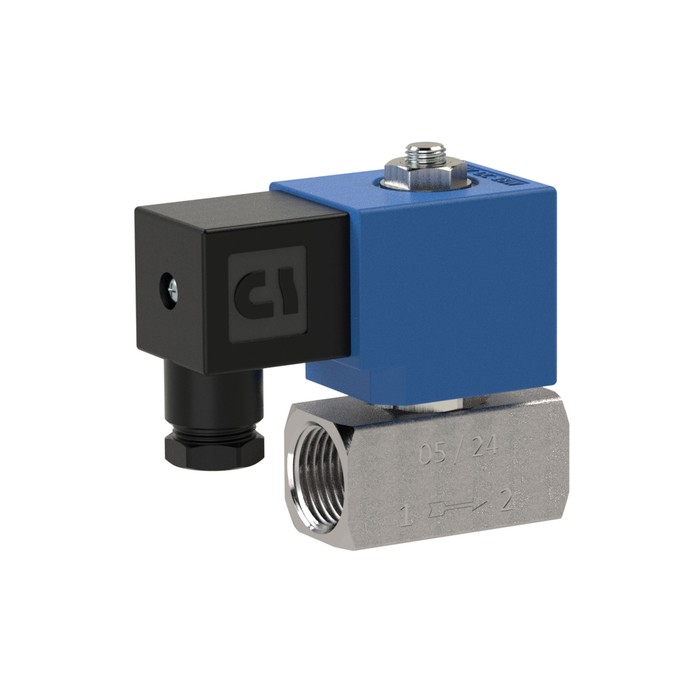

RIEGLER 2/2-way valve, ES, NC, direct, 24 V DC, G 1/8, PN 0-10 bar, PTFE
Type number: MVA.ES.24V.G18.0-10B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way solenoid valve, stainless steel, NC, direct operated, 24 V DC, medium temperature -10 °C - 160 °C, G 1/8, PN 0 - 10 bar, PTFE
| Housing | Stainless steel 1.4401 |
| Sealing material | PTFE |
| Protection class | IP 65 |
| Electrical connection | ISO 4400 / EN 175301-803 Type A |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel |
| Thread | G 1/8 FEMALE THREAD |
| Thread standard | DIN EN ISO 228-1 |
| Setting range min. | 1 |
| A | 762 |
| B | 40 mm |
| C | 775 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | EASY |
| Opening | 3 mm |
