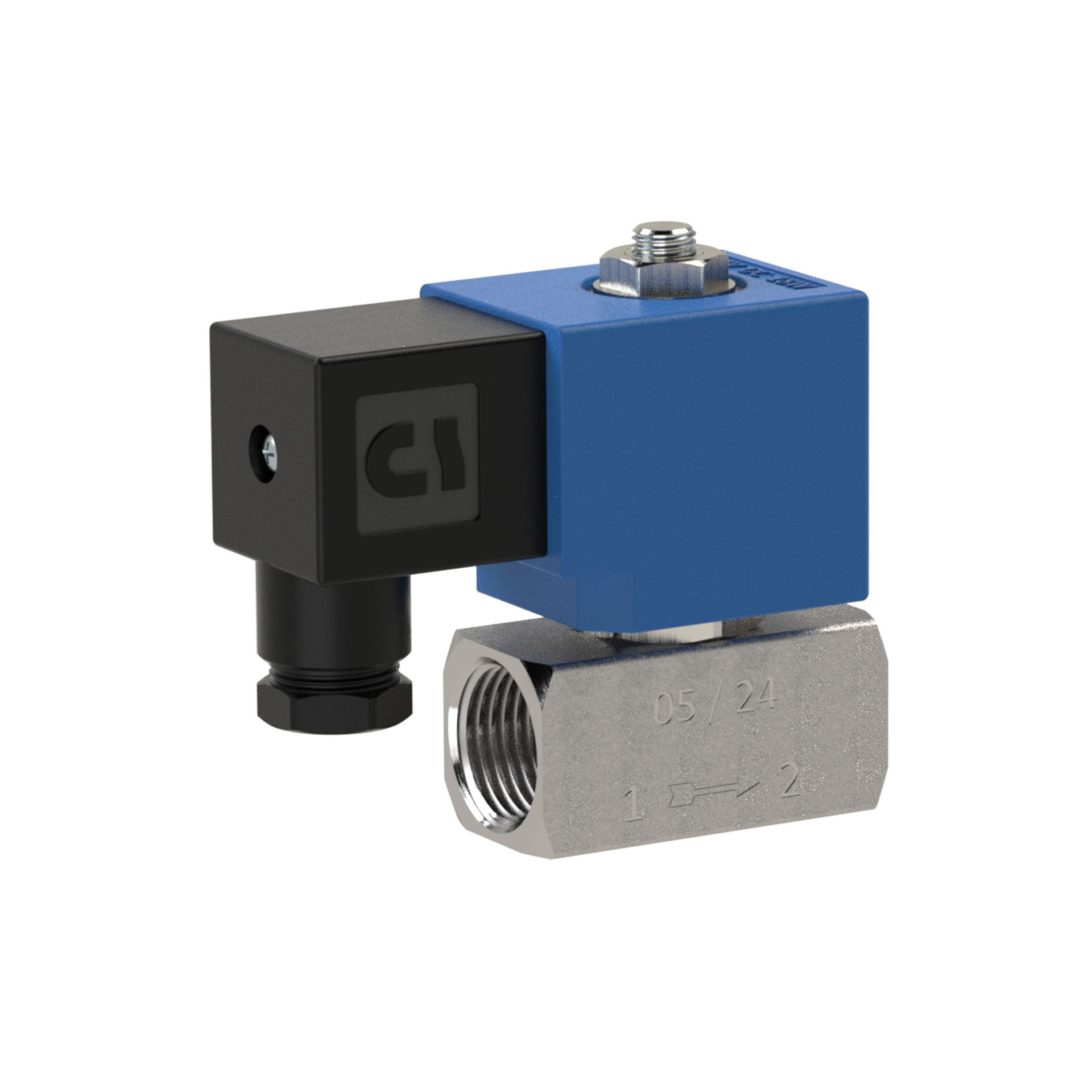

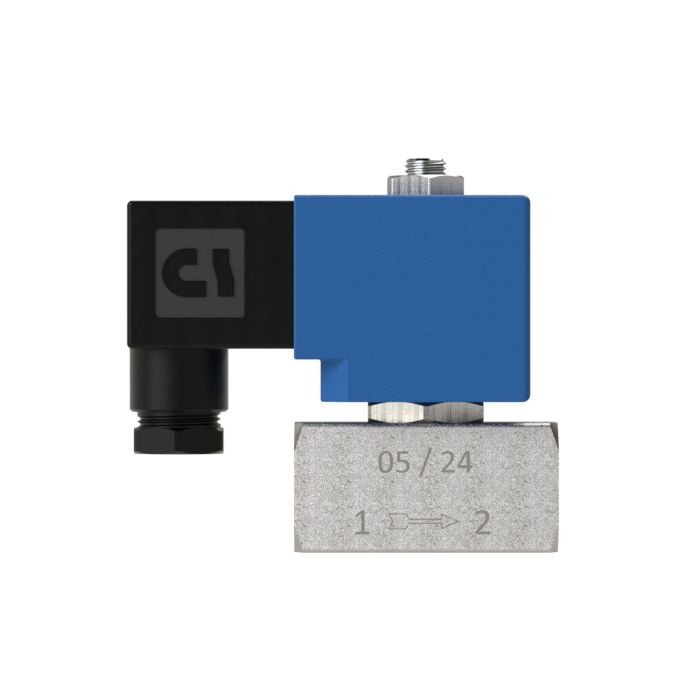

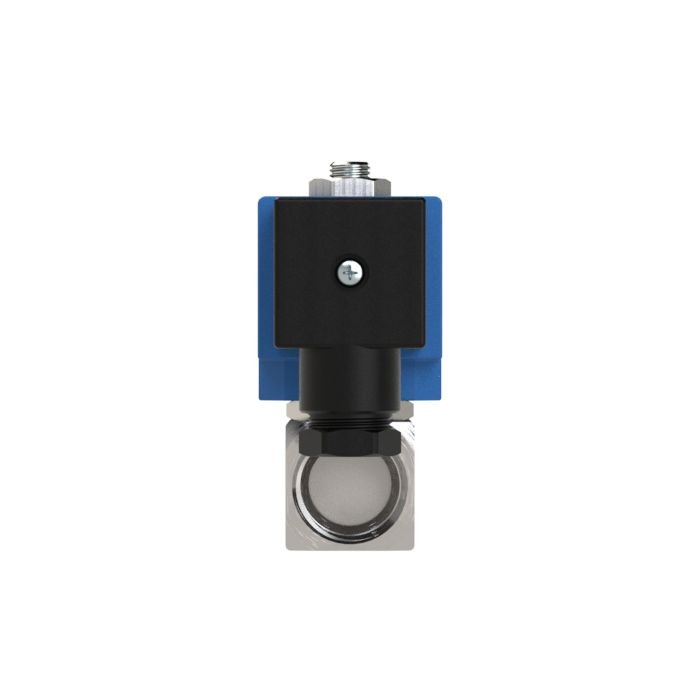

RIEGLER 2/2-way valve, ES, NC, 24 V DC, G 3/4, PN 0.5-16 bar, NBR
Typennummer: MVA.ES.24V.G34.0,5-16B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/3-way valve, electropneumatic, ext. control air, center vented, G 1/8, 24 V DC, p= vacuum?10 bar, control pressure 2.5?10 bar, aluminum
| Opening | 17 mm |
| Electrical connection | ISO 4400 / EN 175301-803 Type A |
| Valve seat | Stainless steel |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Thread standard | DIN EN ISO 228-1 |
| Design | 3 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Operating pressure min. | 0.5 bar |

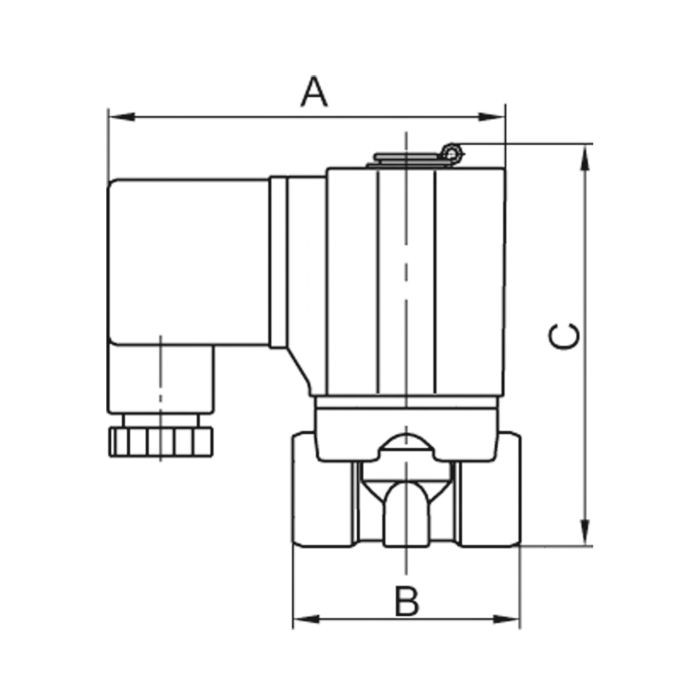

| C | 111 mm |
| Max. operating pressure | 16 bar |
| Ambient temperature max. | 60 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Medium temperature max. | 80 °C |
| B | 90 mm |
| A | 91 mm |
| Class name | EASY |
| Interior parts | Stainless steel |
| Housing | Stainless steel 1.4401 |
| Thread | G 3/4 IG |
| Protection class | IP 65 |
| Sealing material | NBR |
