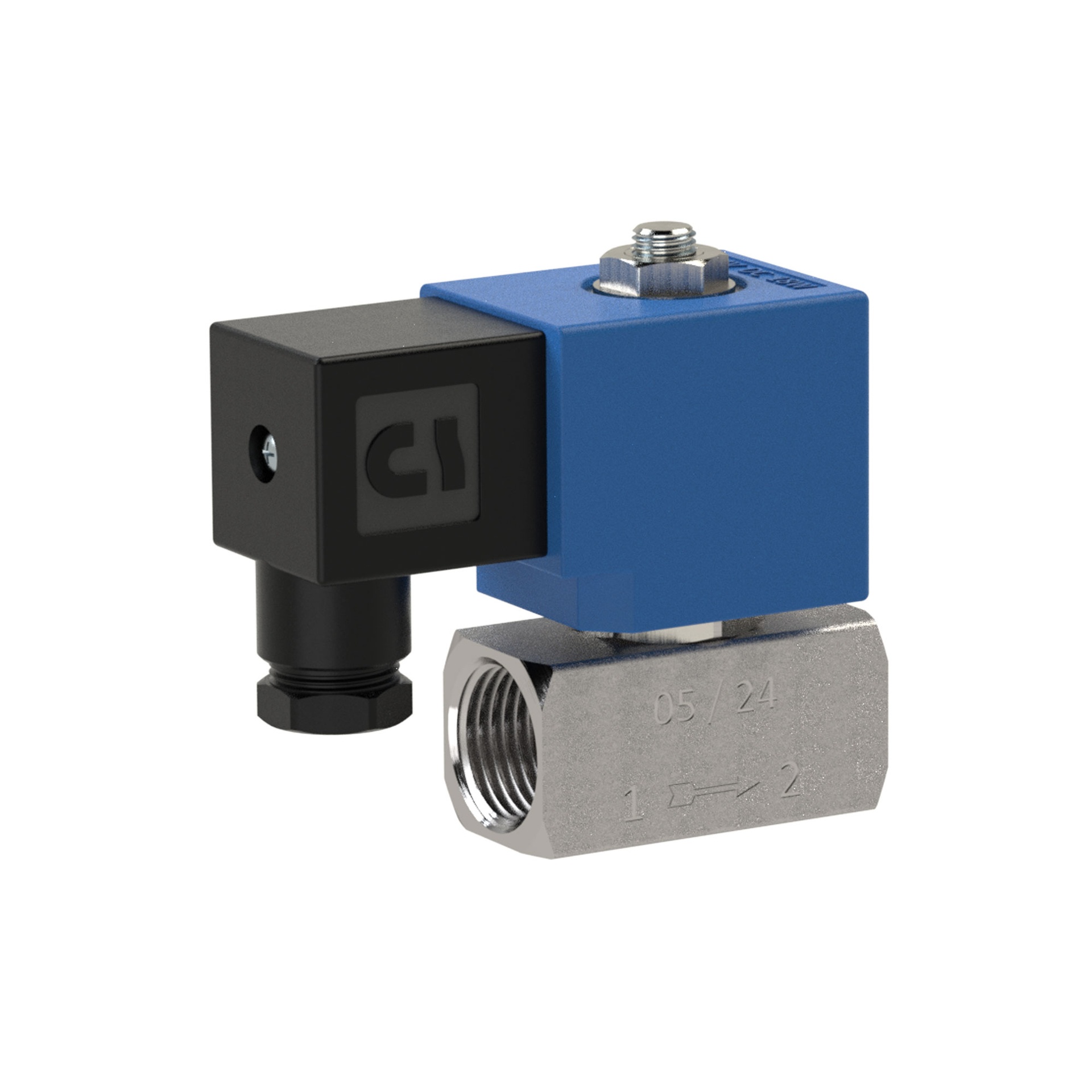

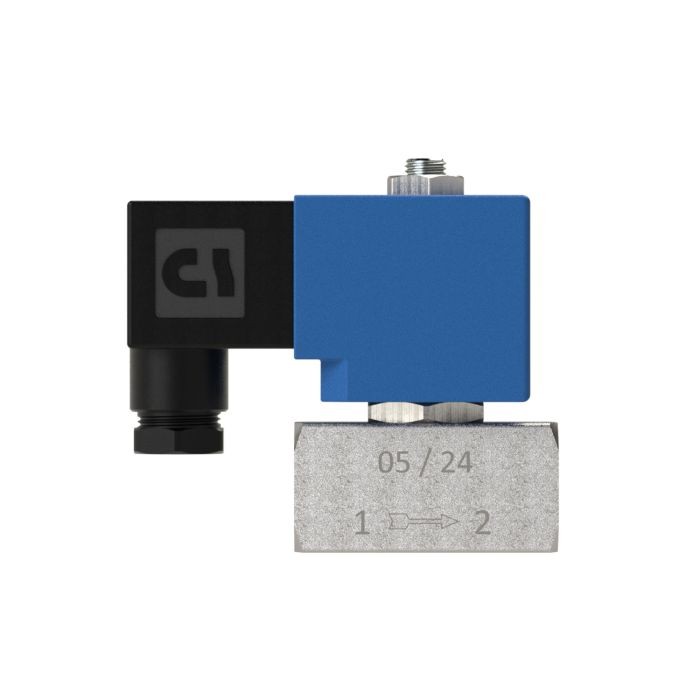

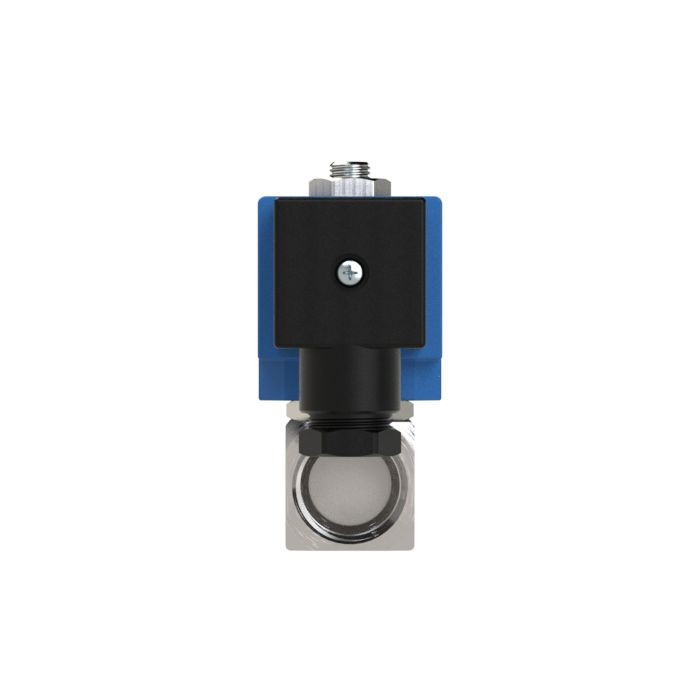

RIEGLER 2/2-way valve, ES, NC, direct, 230 V, G 1/8, PN 0-50 bar, PTFE
Typennummer: MVA.ES.230V.G18.0-50B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/3-way valve, electropneumatic, ext. control air, center vented, G 1/2, 12 V DC, p= vacuum?10 bar, control pressure 2.5?10 bar, aluminum
| Opening | 1.8 mm |

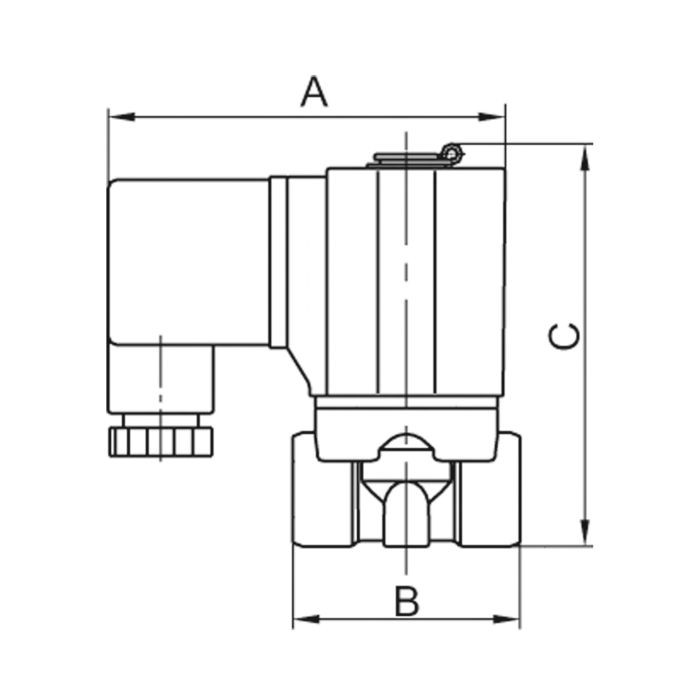

| A | 76.2 mm |
| Electrical connection | ISO 4400 / EN 175301-803 Type A |
| Valve seat | Stainless steel |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Thread standard | DIN EN ISO 228-1 |
| Design | 1 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Operating pressure min. | 0 bar |
| Medium temperature max. | 160 °C |
| B | 40 mm |
| Max. operating pressure | 50 bar |
| Ambient temperature max. | 60 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| C | 77.5 mm |
| Class name | EASY |
| Interior parts | Stainless steel |
| Housing | Stainless steel 1.4401 |
| Thread | G 1/8 FEMALE THREAD |
| Protection class | IP 65 |
| Sealing material | PTFE |
