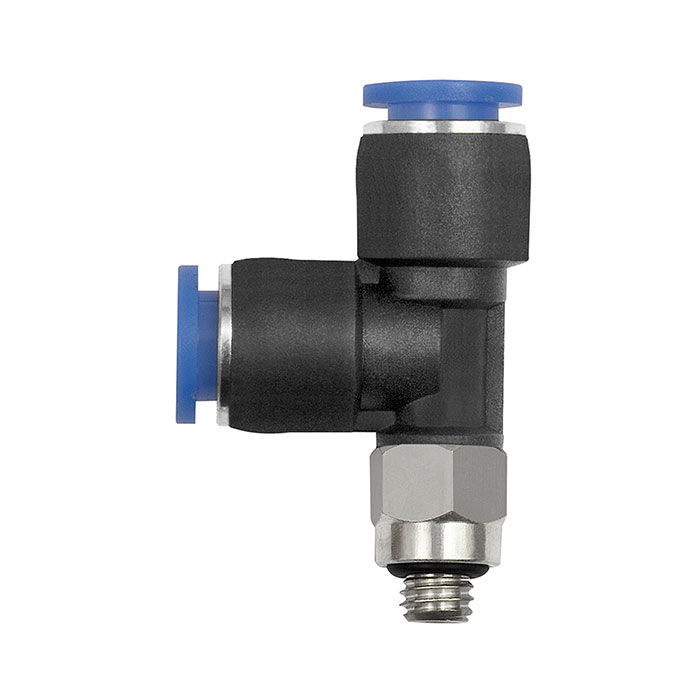

RIEGLER Push-in T-fitting »Blue Series« mini, L-shape, rotating, M5
Type number: 129.005-4M
EAN: 4047322582919
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-in T-fitting "Blue Series" mini, L-shaped, rotatable, M5, for hose outer Ø 4 mm, pmax 10 bar, plastic/MS nickel-plated
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 8 mm |
| Thread standard | DIN 13-1, NBR O-ring |
| for hose outer Ø | 4 mm |

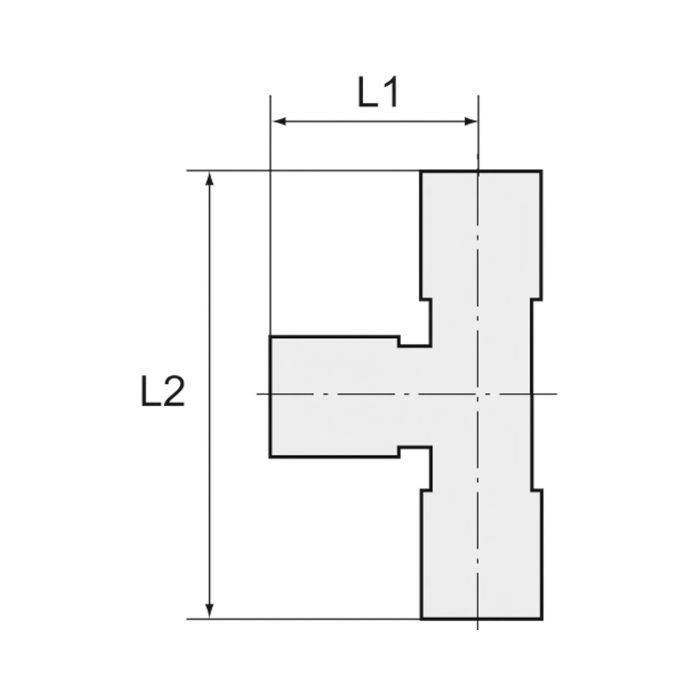

| L1 | 14.7 mm |
| L2 | 30.1 mm |
| Class name | EASY |
