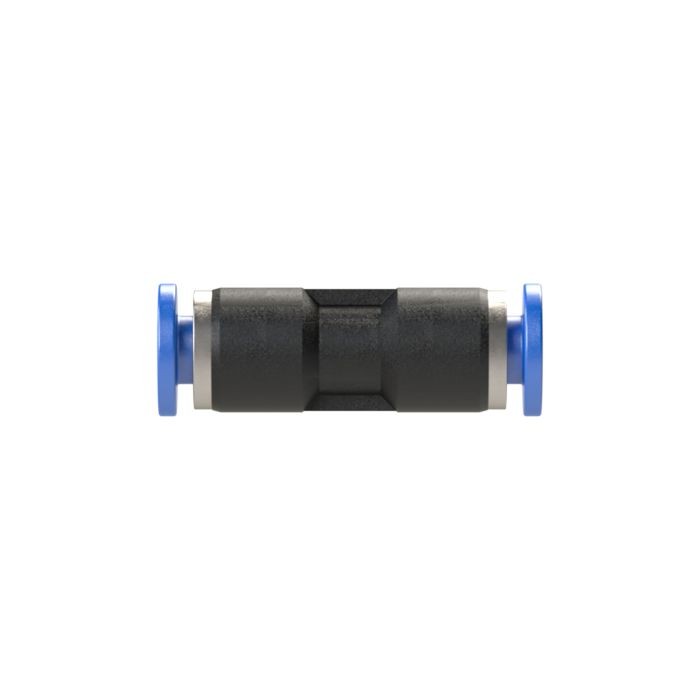

RIEGLER Straight push-in connector »Blue Series« mini, hose exterior Ø 4
Typennummer: 135.004M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight connector "Blue series" mini made of plastic or nickel-plated brass - type 135.004M
The RIEGLER "Blue Series" mini straight push-in connector for hose outer Ø 4 enables compressed air lines to be connected quickly and without tools - securely sealed and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 4 mm |
| L1 | 25.2 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[148863] RIEGLER Straight push-in connector »Blue Series« mini, hose exterior Ø 3](/web/image/product.template/210571/image_128/%5B148863%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20hose%20exterior%20%C3%98%203?unique=810f036)
|
Typennummer: 135.003M |
1.62 € | |

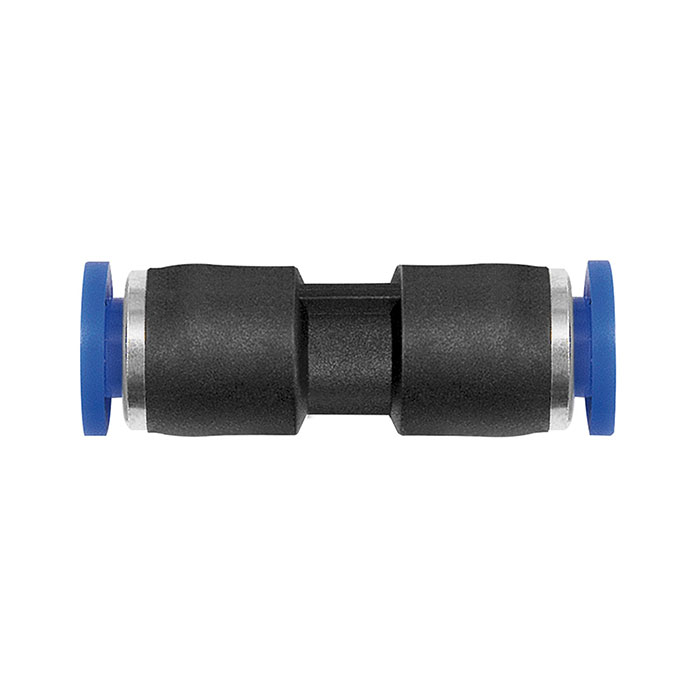

![[148865] RIEGLER Straight push-in connector »Blue Series« mini, hose exterior Ø 6](/web/image/product.template/210573/image_128/%5B148865%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20hose%20exterior%20%C3%98%206?unique=ce002cc)
|
