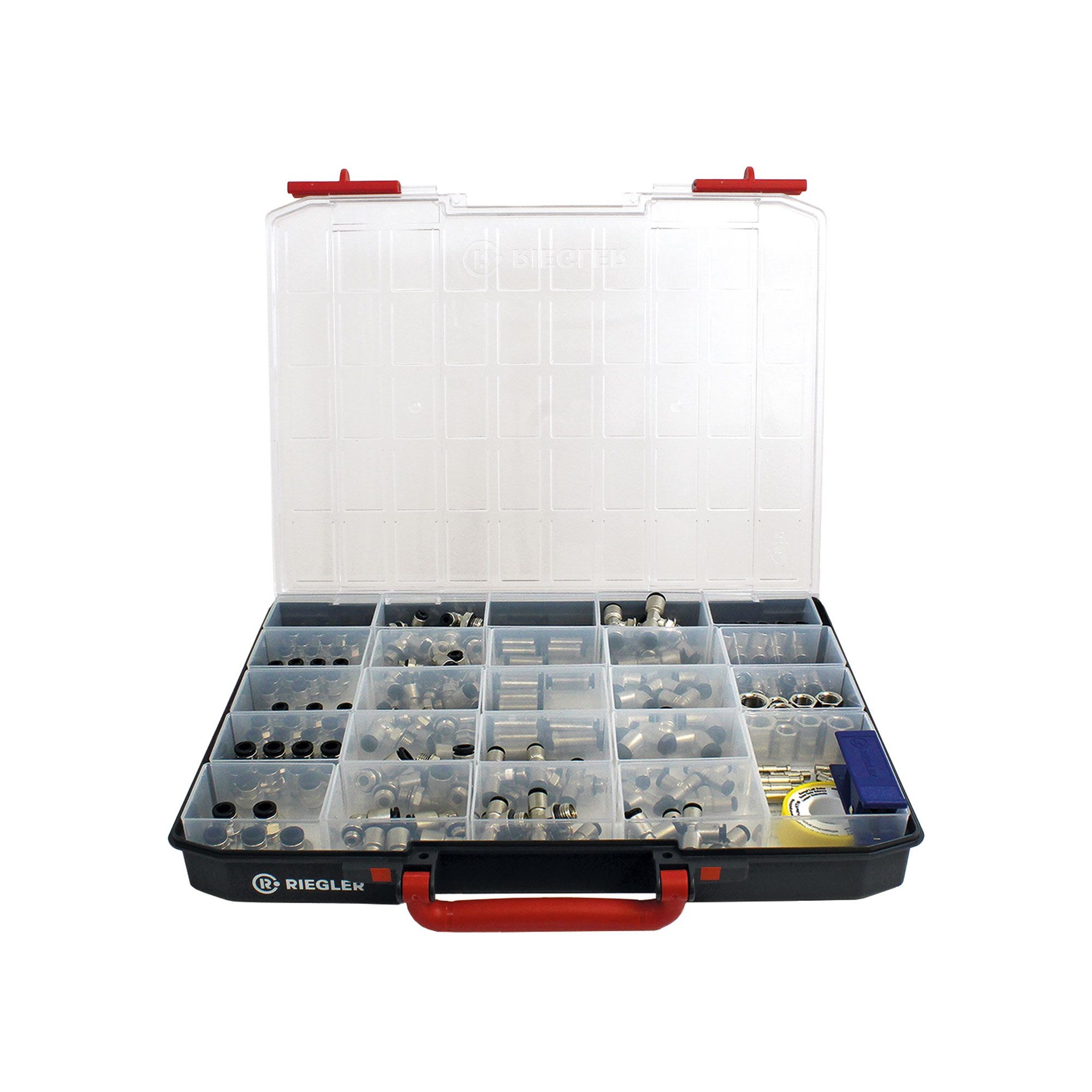

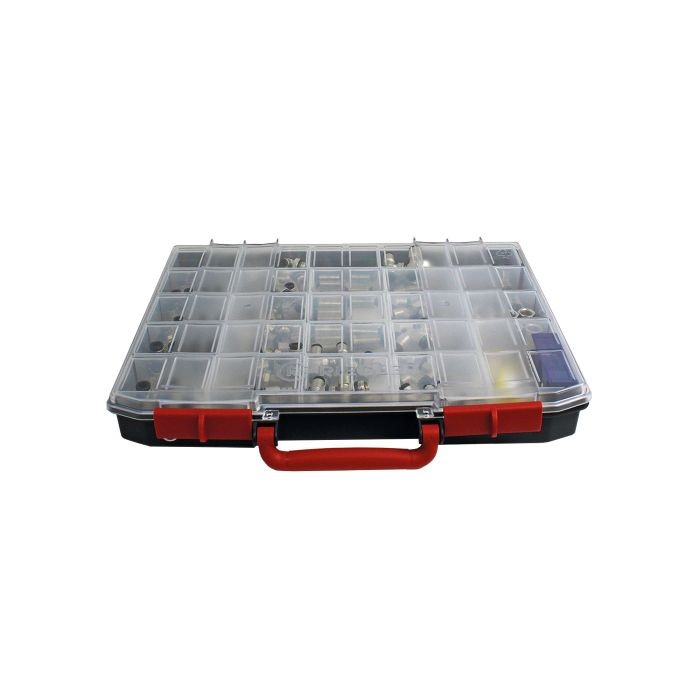

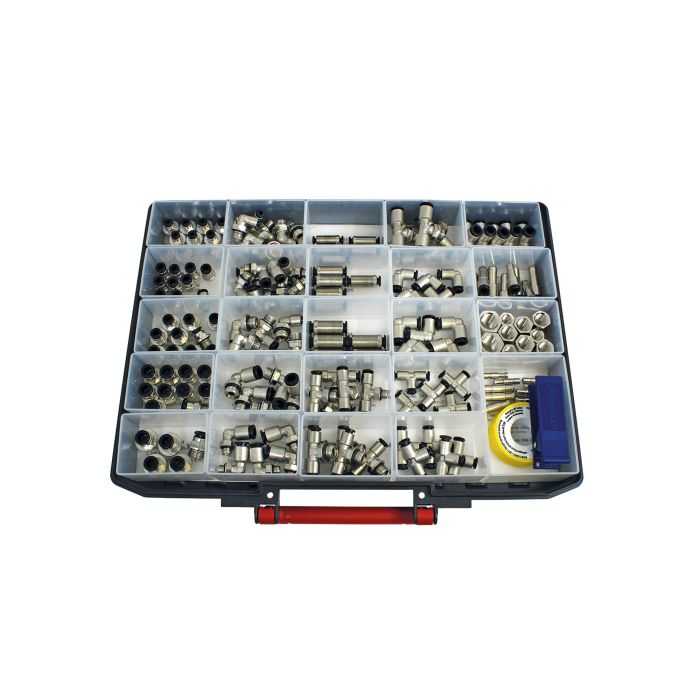

RIEGLER assortment box, quick connectors "click-clock"
Type number: SB.SSV.CC
EAN: 4047322805087
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Assortment box made of nickel-plated brass, for pneumatic installation, max. 16 bar - type SB.SSV.CC
The RIEGLER assortment box, quick connectors "click-clock" enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of nickel-plated brass with NBR seals. The operating pressure range is -0.99 bar to 16 bar. The operating temperature is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Working pressure min. | -0.99 bar |
| Operating temperature min. | -20 °C |
| Working pressure max. | 16 bar |
| Operating temperature max. | 80 °C |
| Series | click-clock |
| Medium | Compressed air |
| Area of application | Compressed air systems, vacuum |
| Clamping ring | Stainless steel |
| Solder ring | Hostaform |
| Material | Nickel-plated brass |
| Sealing material | NBR |
| Recommended hose | PA, PU |
| Class name | PLUS |
