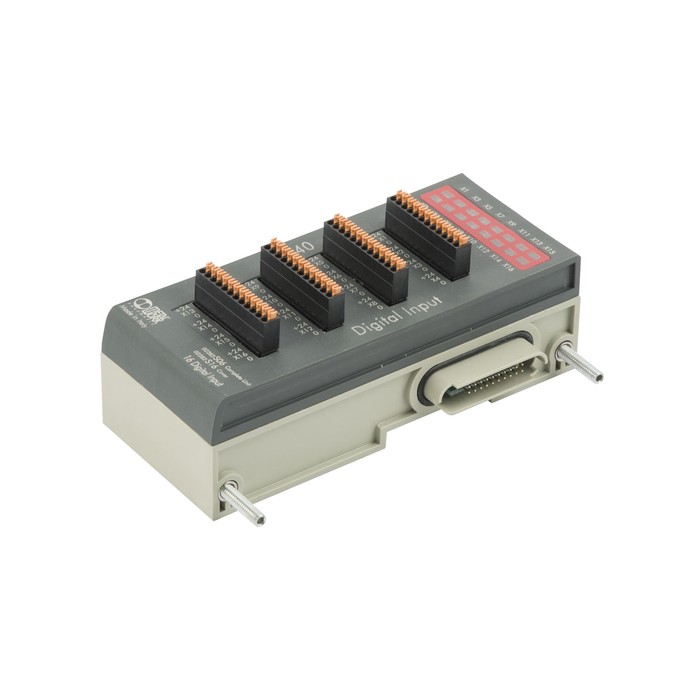

RIEGLER EB 80 signal module, 16x digital inputs, terminal strip
Type number: 02282S06
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Signal module for valve terminal EB 80, 16x digital inputs, terminal strip
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 40 |
| Electrical connection | 4x Steckerleiste mit Federklemme, 12-polig |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Input signal | PNP / NPN (mit Software konfigurierbar) |
| Execution | 16 digitale Eingänge, Klemmleiste |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC * |
| Module type | S |
| Module name | Signal module |
| Operating voltage sensors | depending on the supply voltage |
| Protective measures | against overload and short circuit at the inputs |
| Display of input activity | one LED per input |
| Diagnostics | local with LED display and software information |
| Diagnostic signals | Under/overvoltage, short circuit, overload |
| Max. Current carrying capacity per slot | 200 mA |
| Max. Current carrying capacity per module | 500 mA |
| Input resistance | 3.9 kΩ |
