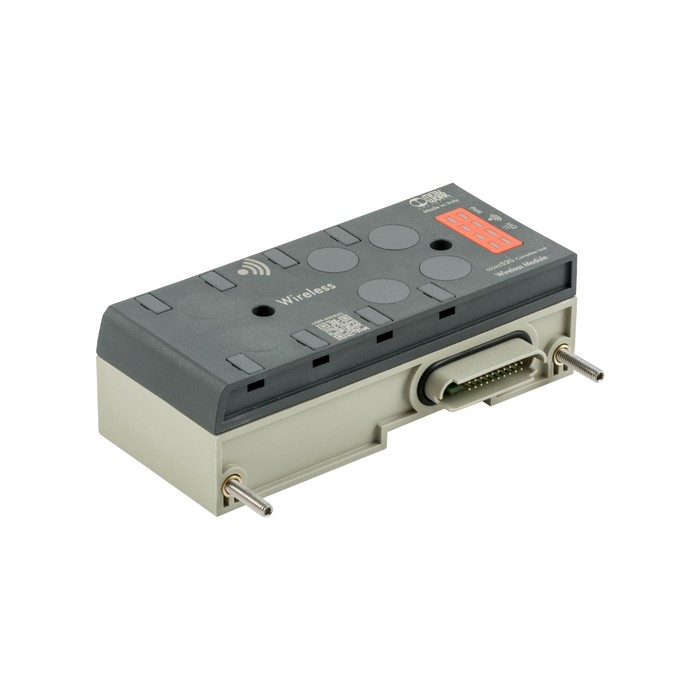

RIEGLER EB 80 wireless module, Wi-Fi, Bluetooth®
Type number: 02282S20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Wireless module EB 80 made of technopolymer, for pneumatic control - type 02282S20
The RIEGLER wireless module EB 80, Wi-Fi, Bluetooth® bundles several pneumatic valves on a common base plate. The housing is made of technopolymer with NBR seals. The ambient temperature is between -10 °C and 50 °C. Protection class IP 65. Protection class IP 65. Central valve control with minimal installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Execution | Wi-Fi MQTT/Bluetooth® LE |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Module type | S |
| Module name | Wireless module |
| Status display | 3 LEDs: Power supply - Wi-Fi - MQTT |
