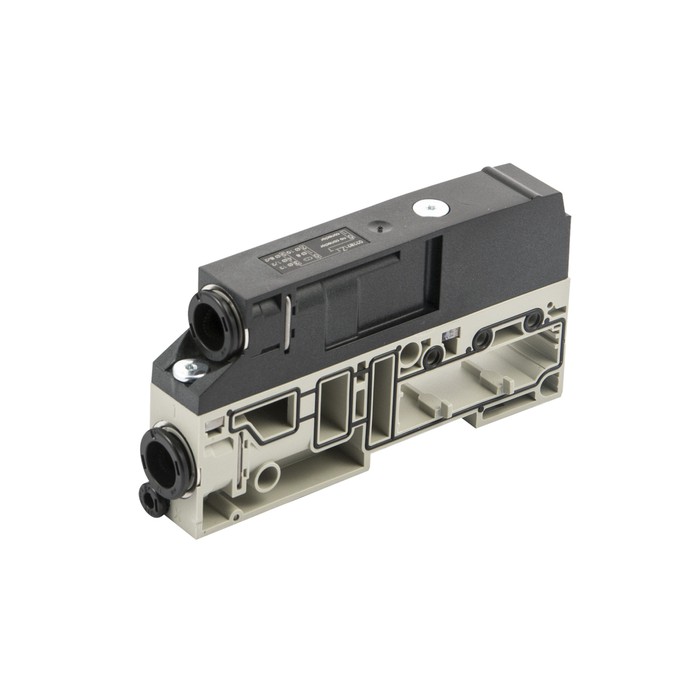

RIEGLER air connection EB 80, Ø 10, ducted exhaust air 1x Ø 10, int. control air
Type number: 02282P21Z20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Compressed air connection for valve terminal EB 80, Ø 10 mm, ducted exhaust air 1x Ø 10 mm, internal control air
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 4.7.3 |
| Control pressure max. | 8 bar |
| Connection | Ø 10 mm |
| Execution | mit gefasster Abluft |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| Flow 1 | 2800 Nl/min |
| REACH Info | contains SVHC substance |
| Flow rate measurement 1 | Druckversorgung über Anschluss 1, bei 6,3 bar ∆p 1 bar |
| Flow rate measurement 2 | Pressure supply via connection 3/5, at 6.3 bar Δp 1 bar |
| Class name | MAX |
| Control air supply | internal |
| Flow 2_3 | 3200 Nl/min |
| Anschluss 3+5 | 1x Ø 10 mm |
| Control pressure min. 2/2 and 3/2 directional control valves | 3-5 bar, depending on working pressure |
| Module type | P |
| Module name | Compressed air connection |
| Operating pressure min. 5/2-, 5/3-way valves with int. control air | 3 bar |
| Max. operating pressure with int. control air | 8 bar |
| Max. operating pressure with ext. control air | 10 bar |
| Control pressure min. 5/2- and 5/3-way valves | 3 bar |
| Operating pressure min. 2/2-, 3/2-way valves with int. control air | 3.5 bar |
| Operating pressure min. with ext. control air | -0.99 bar |
