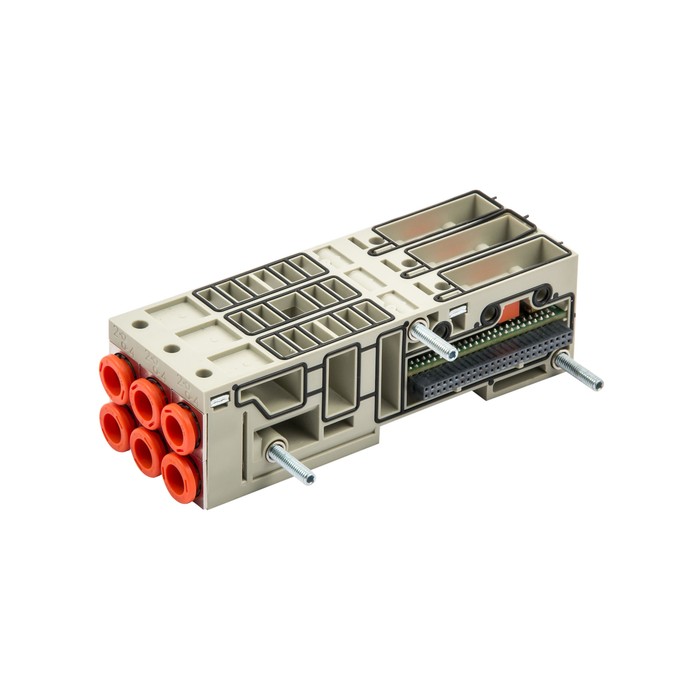

RIEGLER base plate EB 80, 3-gang, free passage, 3 spigots, without insert
Typennummer: 02282B3031110
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Base plate EB 80 made of technopolymer, for pneumatic control unit - type 02282B3031110
The RIEGLER base plate EB 80, 3-way, free passage, 3 ports, without insert combines several pneumatic valves on a common base plate. The housing is made of technopolymer with NBR seals. The ambient temperature is between -10 °C and 50 °C. Suitable for filtered, unlubricated compressed air. Protection class IP 65. Central valve control with minimum installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 4.7.3 |
| Execution | 3 Positionen |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Connection 2+4 | ohne Einsatz |
| Module type | B |
| Module name | Valve base plate |
| Channel separation | free passage |
| Number of controls | 3 |
