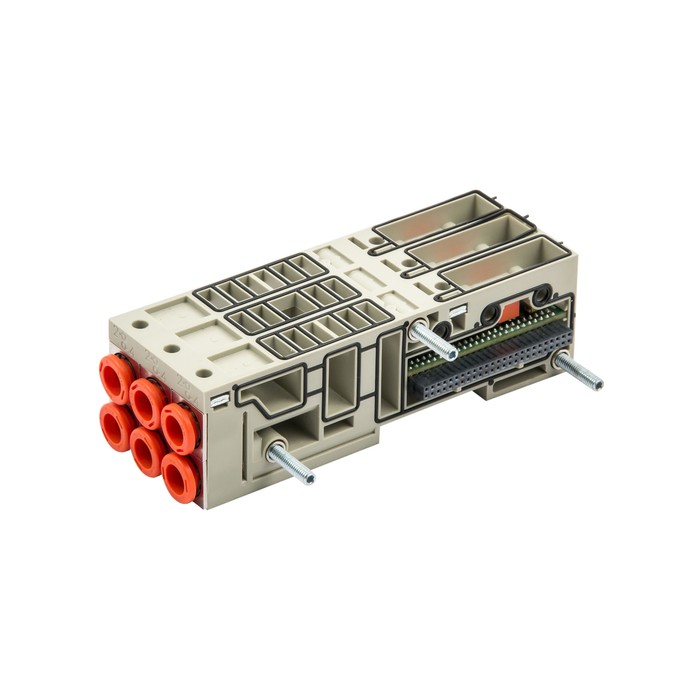

RIEGLER base plate EB 80, 3-way, free passage, 3 controls, Ø 6
Typennummer: 02282B3036660
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Valve base plate for valve terminal EB 80, 3 positions, free passage, 3 actuations, Ø 6 mm
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 4.7.3 |
| Execution | 3 Positionen |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Connection 2+4 | Ø 6 mm |
| Module type | B |
| Module name | Valve base plate |
| Channel separation | free passage |
| Number of controls | 3 |
