Filterregler FUTURA, Polycarbonatbehälter, Schutzkorb, Manometer, BG 1, G 3/8, 0,1-1 bar, VA
Type number: FU 822-1
lockable with padlock
"SS32" (see accessories)
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filterregler »FUTURA« mit PC-Behälter, Schutzkorb u. Mano., 5 µm, BG 1, G 3/8, PE 1,5 - 16 bar, Regelbereich 0,1-1 bar, Ablass VA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/8 |
| Flow 1 | 2500 l/min |
| Control range min. | 0.1 bar |
| Control range max. | 1 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 1.6 bar |
| BG | 1 |

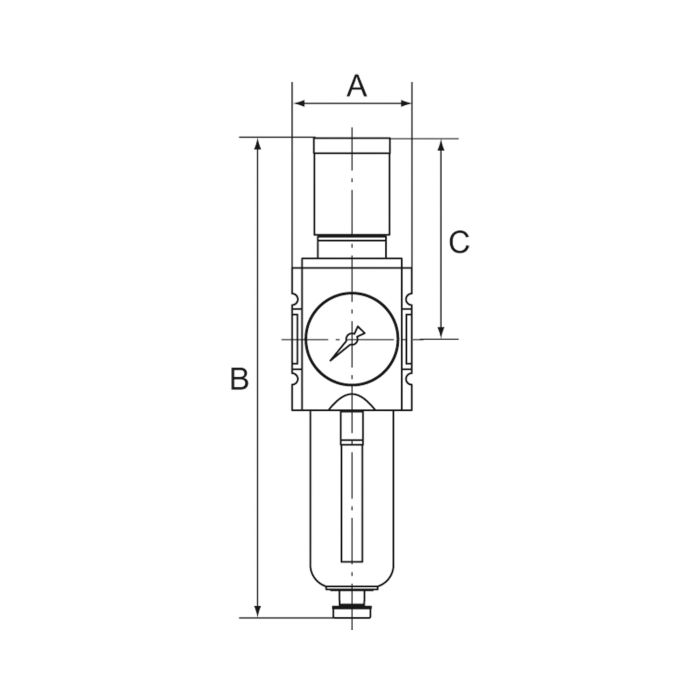

| A | 52 mm |
| B | 243 mm |
| C | 96 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
| Stand Material Compliance | 45159 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151790] Filterregler FUTURA, Polycarbonatbehälter, Schutzkorb, Manometer, BG 1, G 3/8, 0,1-2 bar, VA](/web/image/product.template/122307/image_128/%5B151790%5D%20Filterregler%20FUTURA%2C%20Polycarbonatbeh%C3%A4lter%2C%20Schutzkorb%2C%20Manometer%2C%20BG%201%2C%20G%203-8%2C%200%2C1-2%20bar%2C%20VA?unique=03c752a)
|
Type number: FU 822-2 lockable with padlock
"SS32" (see accessories) |
81.96 € | |
![[151791] Riegler Filter regulator »FUTURA«, PC, Size 1, G 3/8, 0.2-4 bar, Fully a.](/web/image/product.template/122308/image_128/%5B151791%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.2-4%20bar%2C%20Fully%20a.?unique=5aaa688)
|
Type number: FU 822-4 lockable with padlock
"SS32" (see accessories) |
81.96 € | |

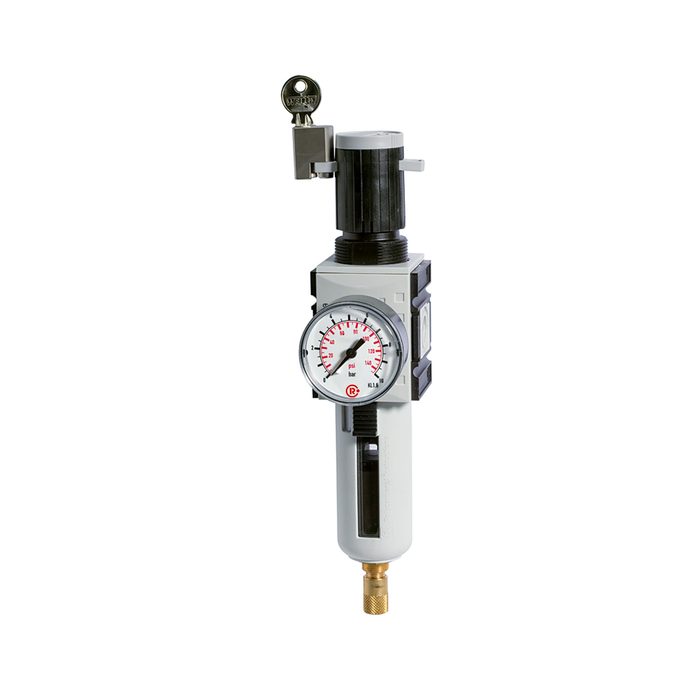

![[151792] Riegler Filter regulator »FUTURA«, PC, Size 1, G3/8, 0.5-10 bar, Fully a.](/web/image/product.template/122310/image_128/%5B151792%5D%20Riegler%20Filter%20regulator%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G3-8%2C%200.5-10%20bar%2C%20Fully%20a.?unique=5010420)
|
