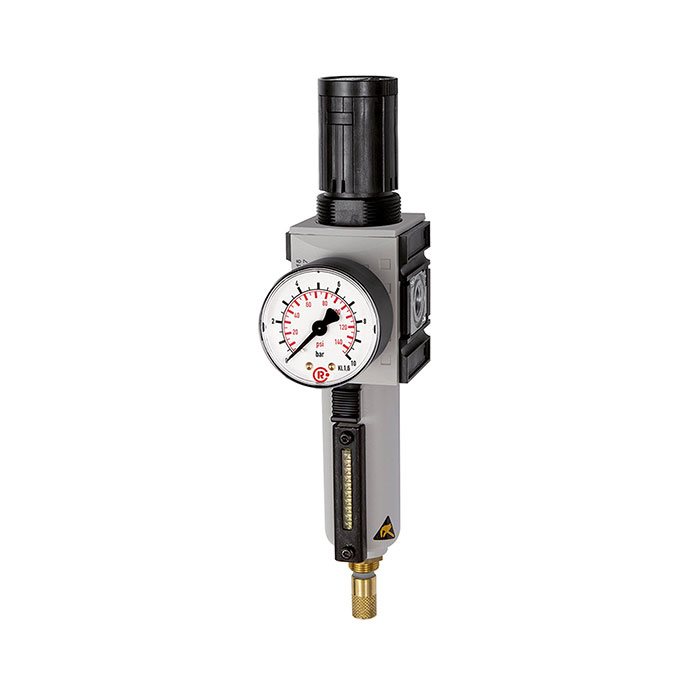

RIEGLER Filter regulator »FUTURA«, Metal, Size 4, G 1, 0.1-1 bar, Fully
Typennummer: FU 6121-M-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "FUTURA" made of PA66 GF60, for compressed air treatment, 0.1 bar - Type FU 6121-M-1
The RIEGLER filter regulator "FUTURA", MB, SR, Mano, BG 4, G 1, 0.1-1 bar, VA combines compressed air filtration and pressure regulation in one compact device. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.1 bar to 1 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 13000 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container with sight tube. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1 |
| Flow rate | 13000 l/min |
| Control range min. | 0.1 bar |
| Control range max. | 1 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 1.6 bar |
| BG | 4 |
| A | 85 mm |
| B | 343 mm |
| C | 137 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I. 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | MAX |
