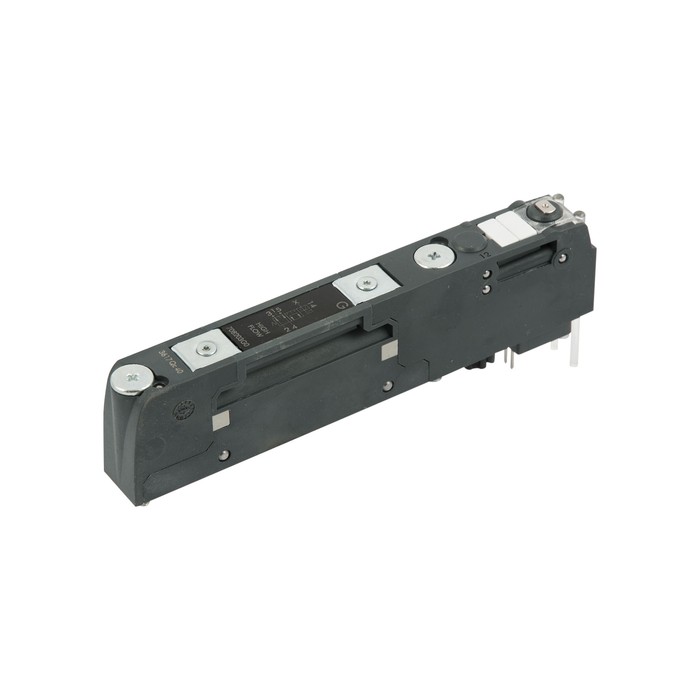

RIEGLER high performance valve EB 80, 3/2 NC, manual override monostable
Type number: 708203G0
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
High-performance valve for valve terminal EB 80, 3/2-way NC, manual override monostable
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 4.7.3 |
| Control pressure max. | 8 bar |
| Manual override | monostabil |
| Execution | 3/2 NC Hochleistungsventil |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| Flow_1 | 350 Nl/min |
| Flow_2 | 650 Nl/min |
| REACH Info | contains SVHC substance |
| Flow rate measurement 1 | mit Anschluss 2/4 Ø 4 mm, bei 6,3 bar ∆p 1 bar |
| Flow rate measurement 2 | with connection 2/4 Ø 6 mm, at 6.3 bar ∆p 1 bar |
| Class name | MAX |
| Control pressure min. | 3-5 bar, depending on working pressure |
| Flow_4 | 1250 Nl/min |
| Durchflusswertmessung 4 | with Y-connector Ø 10 mm, at 6.3 bar ∆p 1 bar |
| Flow rate measurement 3 | with connection 2/4 Ø 8 mm, at 6.3 bar ∆p 1 bar |
| Module type | G |
| Module name | Valve |
| Max. operating pressure with int. control air | 8 bar |
| Max. operating pressure with ext. control air | 10 bar |
| Flow_3 | 800 Nl/min |
| Switch-on time at 6 bar (TRA) | 13 |
| Switch-off time at 6 bar (TRR) | 36 |
| Operating pressure min. with ext. control air | -0.99 bar |
| Operating pressure min. with int. control air | 3.5 bar |
