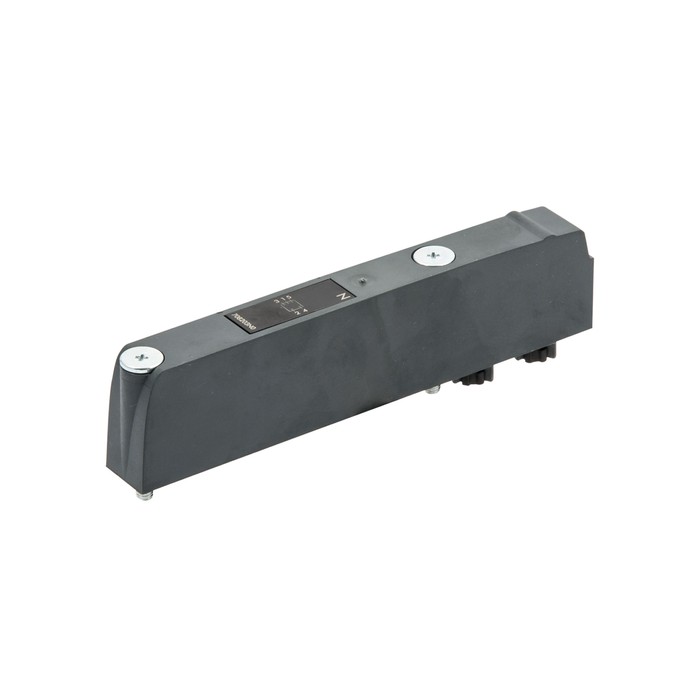

RIEGLER dummy valve (placeholder) EB 80
Type number: 708203N0
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Dummy valve (placeholder) EB 80 made of technopolymer, for pneumatic control - type 708203N0
The RIEGLER dummy valve (placeholder) EB 80 combines several pneumatic valves on a common base plate. The housing is made of technopolymer with NBR seals. The ambient temperature is between -10 °C and 50 °C. Suitable for filtered, unlubricated compressed air. Protection class IP 65. Central valve control with minimum installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 4.7.3 |
| Execution | Dummy-Ventil (Platzhalter) |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Module type | N |
| Module name | Valve |
| Max. operating pressure with int. control air | 10 bar |
| Max. operating pressure with ext. control air | 10 bar |
