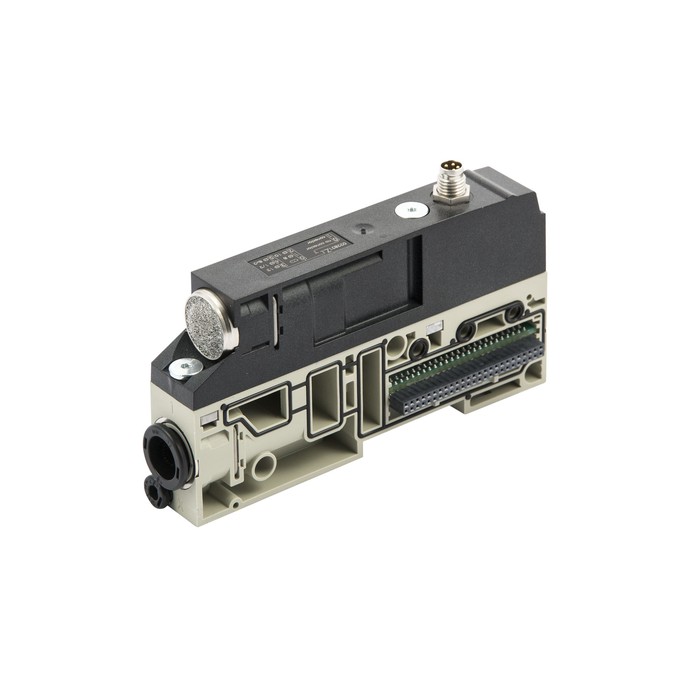

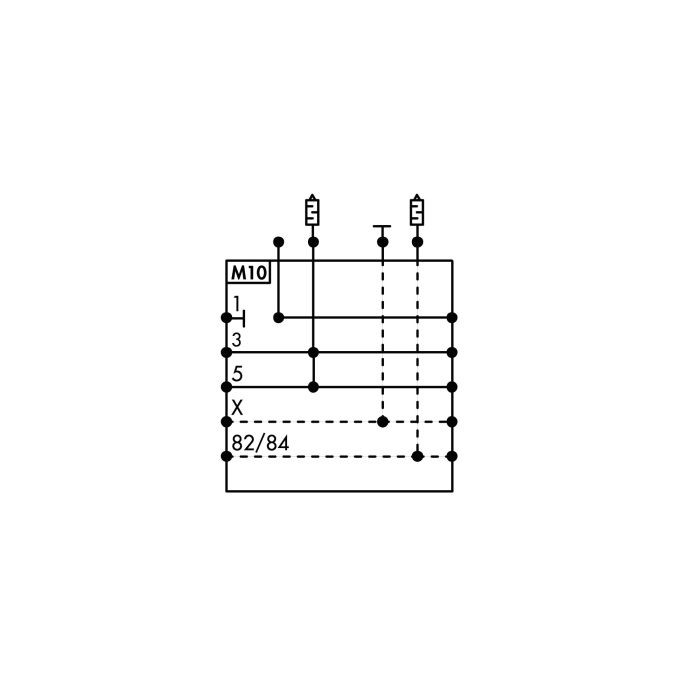

RIEGLER intermediate module EB80, Ø8, silenced, connection 1 separate, with electr. ins.
Type number: 02282M111Z01
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Intermediate module for valve terminal EB 80, Ø 8 mm, with silenced exhaust air, connection 1 separate, with additional electrical supply
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 4.7.3 |
| Control pressure max. | 8 bar |
| Connection | Ø 8 mm |
| Execution | mit schallgedämpfter Abluft |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| Flow_1 | 1800 Nl/min |
| REACH Info | contains SVHC substance |
| Flow rate measurement 1 | Druckversorgung über Anschluss 1, bei 6,3 bar ∆p 1 bar |
| Class name | MAX |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC |
| Additional electrical supply | with (M8, 4-pin) |
| Anschluss 3+5 | Schalldämpfer |
| Control pressure min. 2/2 and 3/2 directional control valves | 3-5 bar, depending on working pressure |
| Module type | M |
| Module name | Intermediate module |
| Channel separation | Connection 1 disconnected |
| Max. Number of simultaneous valve actuations when switching on | 24 V DC: 48 / 12 V DC: 32 |
| Operating pressure min. 5/2-, 5/3-way valves with int. control air | 3 bar |
| Max. operating pressure with int. control air | 8 bar |
| Max. operating pressure with ext. control air | 10 bar |
| Control pressure min. 5/2- and 5/3-way valves | 3 bar |
| Operating pressure min. 2/2-, 3/2-way valves with int. control air | 3.5 bar |
| Operating pressure min. with ext. control air | -0.99 bar |
