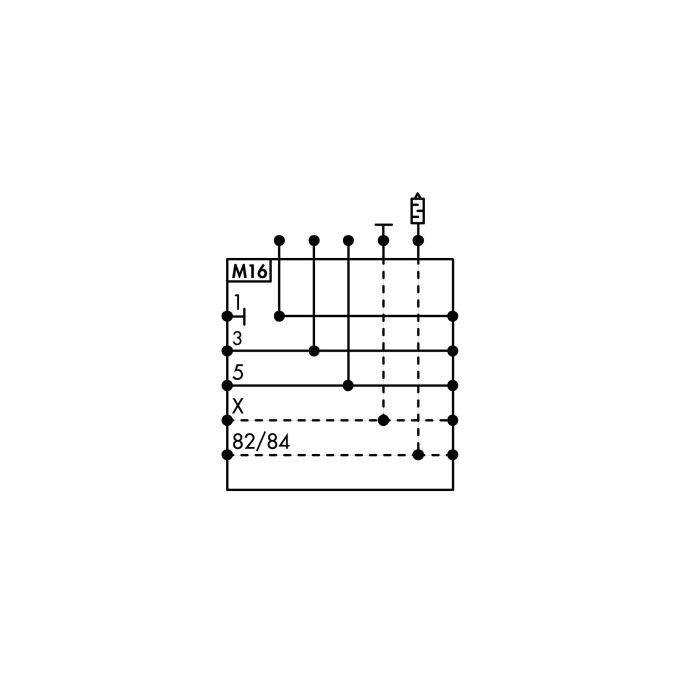

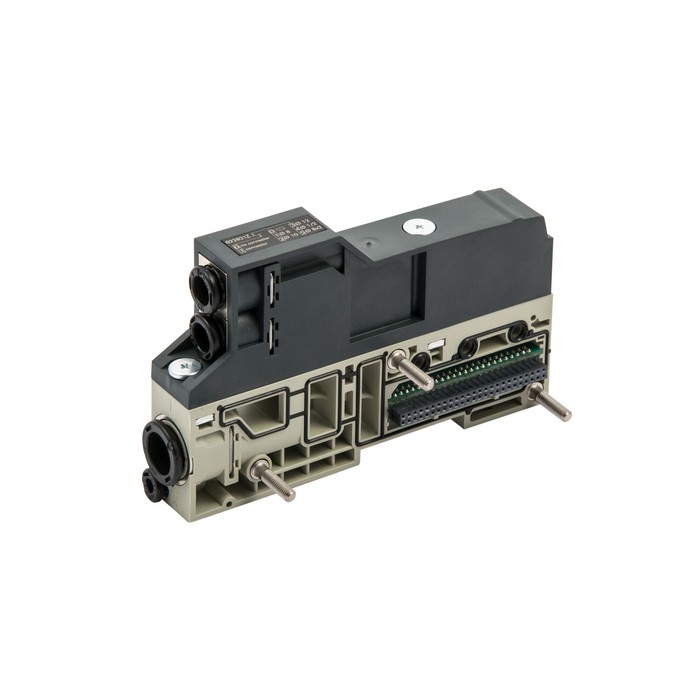

RIEGLER intermediate module EB80, Ø10, return air 2x Ø8, connection 1 separate, without el. injection
Type number: 02282M210Z60
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Intermediate module EB80 made of technopolymer, for pneumatic control, Ø 10 mm - Type 02282M210Z60
The RIEGLER EB80 intermediate module, Ø10, exhaust air 2x Ø8, connection 1 separate, without electrical injection, combines several pneumatic valves on a common base plate. The housing is made of technopolymer with NBR seals. The ambient temperature is between -10 °C and 50 °C. Connection thread Ø 10 mm - suitable for common industry standards. Suitable for filtered, unlubricated compressed air. Protection class IP 65. Central valve control with minimum installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 4.7.3 |
| Control pressure max. | 8 bar |
| Connection | Ø 10 mm |
| Execution | mit getrennter Abluft |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| Flow 1 | 2800 Nl/min |
| REACH Info | contains SVHC substance |
| Flow rate measurement 1 | Druckversorgung über Anschluss 1, bei 6,3 bar ∆p 1 bar |
| Flow rate measurement 2 | Pressure supply via connection 3/5, at 6.3 bar Δp 1 bar |
| Class name | MAX |
| Additional electrical supply | without |
| Flow 2_3 | 1800 x 2 Nl/min |
| Anschluss 3+5 | 2x Ø 8 mm |
| Control pressure min. 2/2 and 3/2 directional control valves | 3-5 bar, depending on working pressure |
| Module type | M |
| Module name | Intermediate module |
| Channel separation | Connection 1 disconnected |
| Operating pressure min. 5/2-, 5/3-way valves with int. control air | 3 bar |
| Max. operating pressure with int. control air | 8 bar |
| Max. operating pressure with ext. control air | 10 bar |
| Control pressure min. 5/2- and 5/3-way valves | 3 bar |
| Operating pressure min. 2/2-, 3/2-way valves with int. control air | 3.5 bar |
| Operating pressure min. with ext. control air | -0.99 bar |
