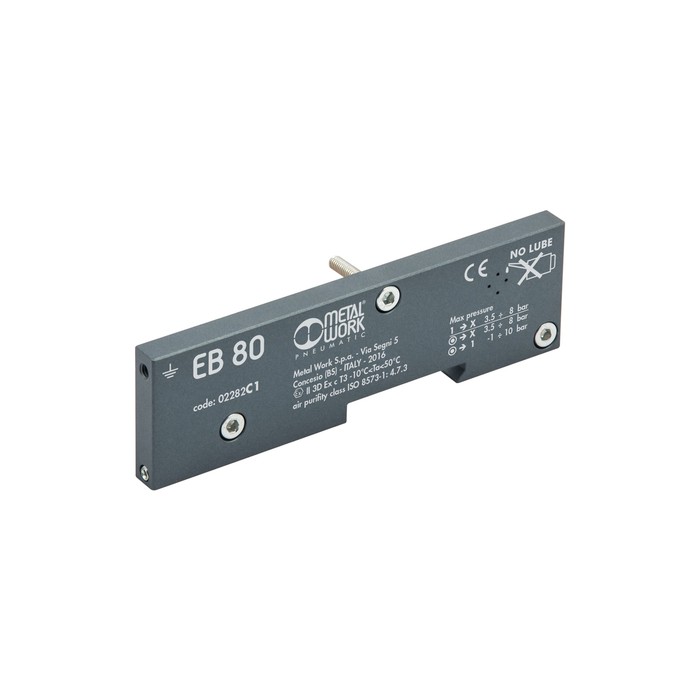

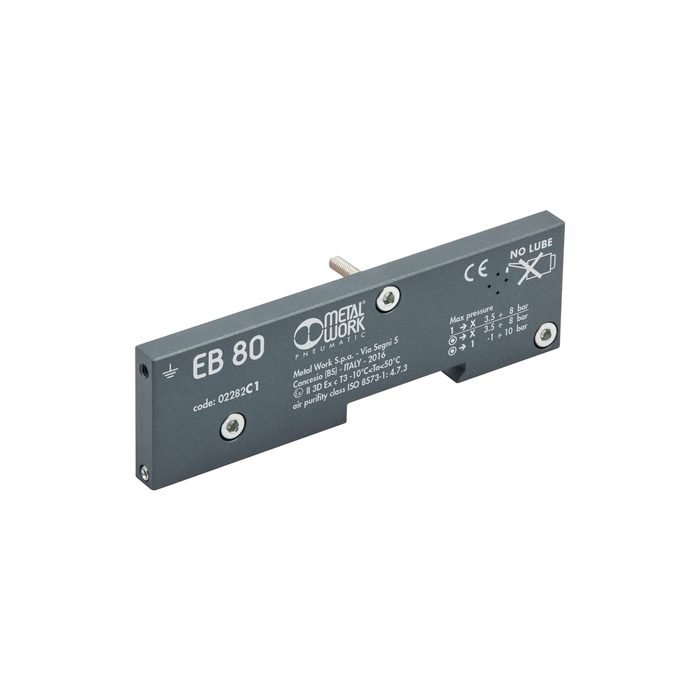

RIEGLER EB 80 end plate with multi-pin plug connection
Type number: 02282C1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER End plate EB 80 with multipole connection made of aluminum, for pneumatic control - type 02282C1
The RIEGLER EB 80 end plate with multi-pin plug connection combines several pneumatic valves on a common base plate. The housing is made of aluminum with NBR seals. The ambient temperature is between -10 °C and 50 °C. Protection class IP 65. Central valve control with minimum installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Housing | Aluminum |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Execution | für Inseln mit Multipol-Anschluss |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Module type | C |
| Module name | End plate/blind |
