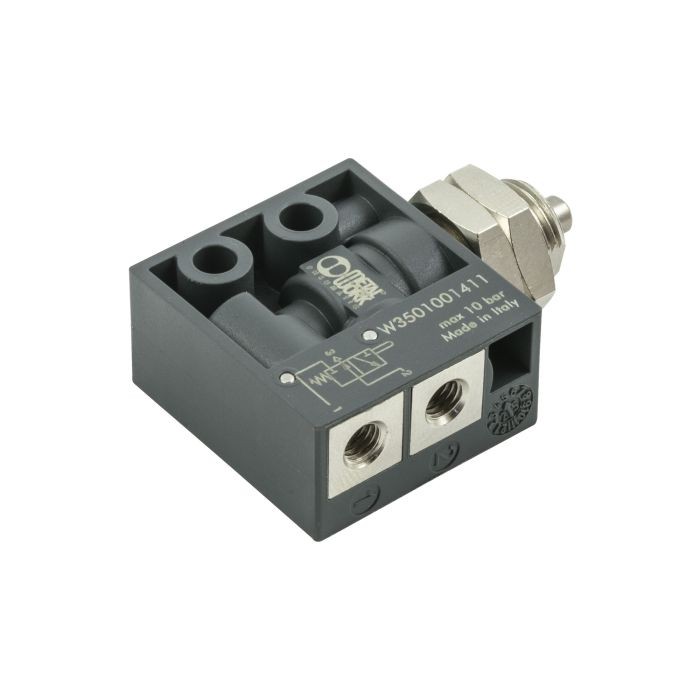

RIEGLER 3/2 Mini Valve, mechanical, spool type, panel-mounted, NC, M5 side connection
Part Number: W3501001411
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way mini valve made of aluminum, for pneumatics and automation – Type W3501001411
The RIEGLER 3/2-way mini valve, mechanical, spool type, panel-mounted, NC, M5 side-mounted, controls compressed air flows precisely and reliably. The housing is made of aluminum with NBR seals. The operating pressure ranges from 0.5 bar to 10 bar. The permissible medium temperature ranges from -10 °C to 60 °C. M5 female thread connection on the side—compatible with common industrial standards. The flow rate is 35 Nl/min. Suitable for filtered compressed air, with or without oil. If oiled, it must be continuously lubricated. Designed for precise switching operations in continuous operation.
Scope of Application
Typical applications: Mini pneumatic valves, 3/2-way mini valves, mechanical valves in compressed air and pneumatic systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Reihe VME |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| DN | 2.5 mm |
| Function | 3/2 NC |
| Actuation | monostable |
| Symbol | 2 |
| Execution | mechanisch betätigt |
| Connection | M5 IG lateral |
| Flow 1 | 35 Nl/min |
| Flow 2 | 60 Nl/min |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

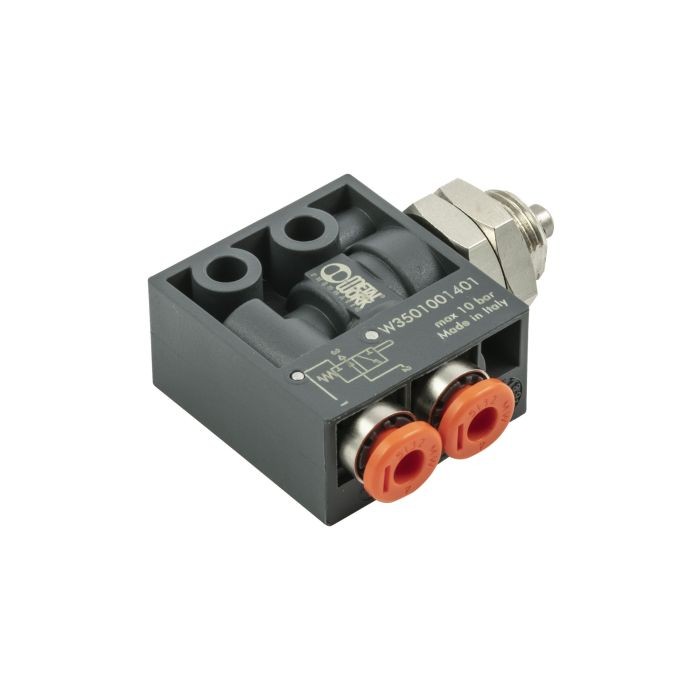

![[154012] RIEGLER 3/2 Mini Valve, mechanical, spool type, panel-mounted, NC, 4 mm side connection](/web/image/product.template/336871/image_128/%5B154012%5D%20RIEGLER%203-2%20Mini%20Valve%2C%20mechanical%2C%20spool%20type%2C%20panel-mounted%2C%20NC%2C%204%20mm%20side%20connection?unique=620c8ba)
|
