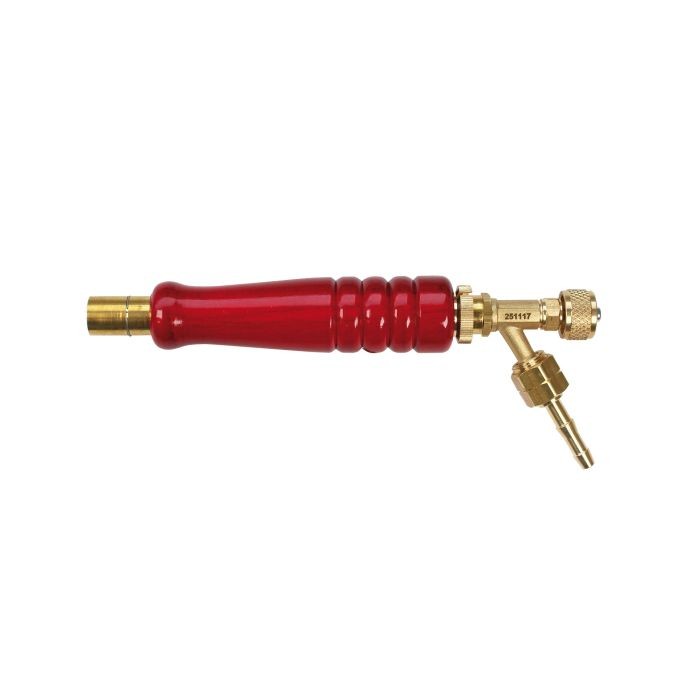

RIEGLER Wooden Handle, Round with Valve, Propane, M15x1, G 3/8 LH
Model Number: GS.R.H.38
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Wooden grip for pneumatic and automation systems – Type GS.R.H.38
The RIEGLER wooden handle, round with valve, propane, M15x1, G 3/8 LH, controls compressed air flow precisely and reliably. The housing is made of brass and wood. The permissible medium temperature ranges from -20 °C to 60 °C. Designed for precise switching operations in continuous operation.
Scope of Application
Typical applications: Propane control valve in compressed air and pneumatic systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Max. operating pressure | 4 bar |
| Material | Brass, wood |
| Gas type | Propan |
| for hose | LW 6 mm |
| Thread 1 | M15x1,0 AG |
| Thread 2 | G 3/8 LH AG |
| Class name | FLEX |
| Standard | according to EN ISO 9012 |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

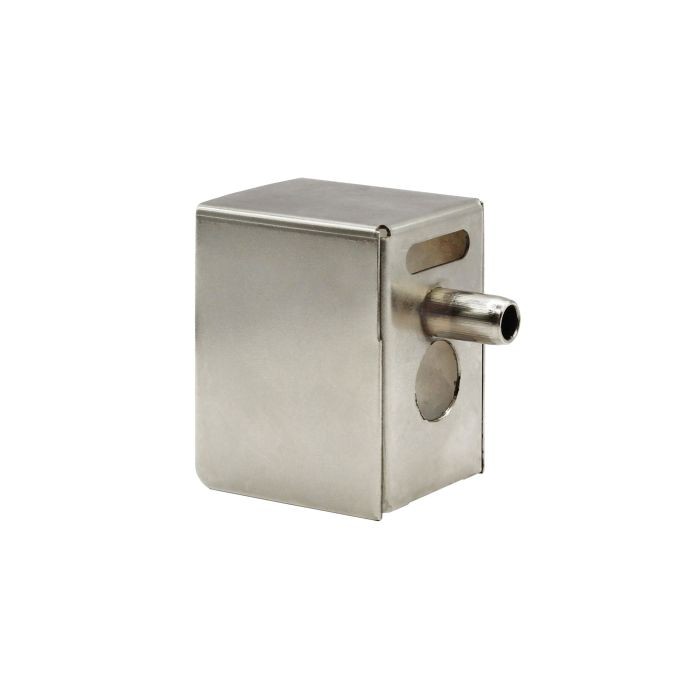

![[155093] RIEGLER Protective Cover for Soldering Irons, Stainless Steel](/web/image/product.template/336468/image_128/%5B155093%5D%20RIEGLER%20Protective%20Cover%20for%20Soldering%20Irons%2C%20Stainless%20Steel?unique=c7111f6)
|
