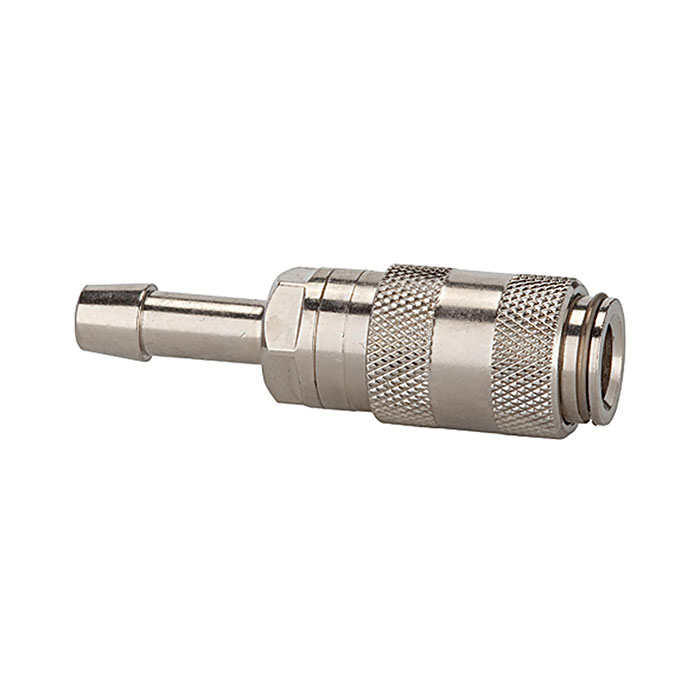

RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, Sleeve I.D. 4
Typennummer: 243.08/6-ES-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Quick-release coupling made of stainless steel 1.4305, for compressed air supply, LW 4 - type 243.08/6-ES-E
The RIEGLER quick-release coupling NW 2.7, stainless steel 1.4305, nozzle LW 4 connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of stainless steel 1.4305 with FPM seals. The permissible medium temperature is between -20 °C and 200 °C. Connection thread LW 4 - suitable for common industry standards. The flow rate is 120 l/min (air) (at 6 bar and Δp = 1 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Stainless steel 1.4305 |
| Sealing material | FPM |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 120 l/min (air) |
| Ball | Stainless steel 1.4034 |
| Spring | Stainless steel 1.4310 |
| Valve body | Stainless steel 1.4305 |
| Sleeve | Stainless steel 1.4305 |
| Snap ring | Stainless steel 1.4310 |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| NW | 2.7 |
| Length | 34 mm |
| Connection | LW 4 |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

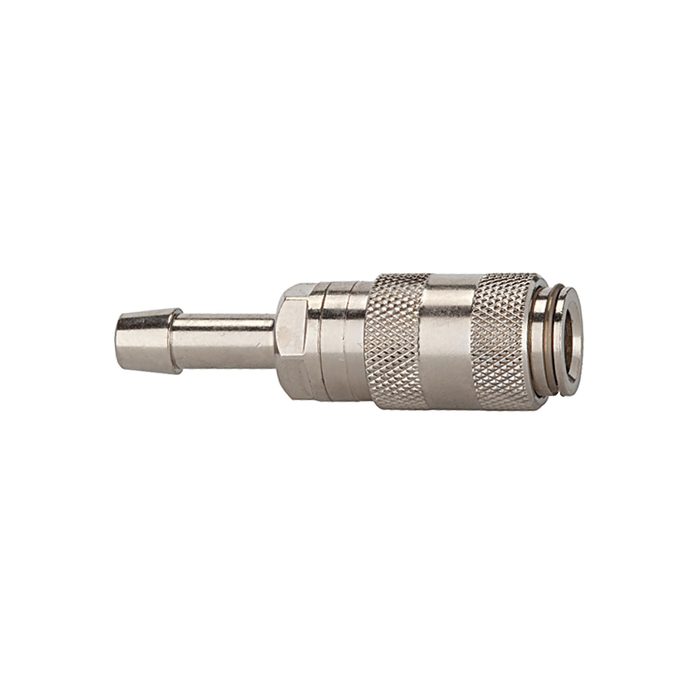

![[156208] RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, Sleeve I.D. 3](/web/image/product.template/213273/image_128/%5B156208%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20St.%20steel%201.4305%2C%20Sleeve%20I.D.%203?unique=92c91b9)
|
