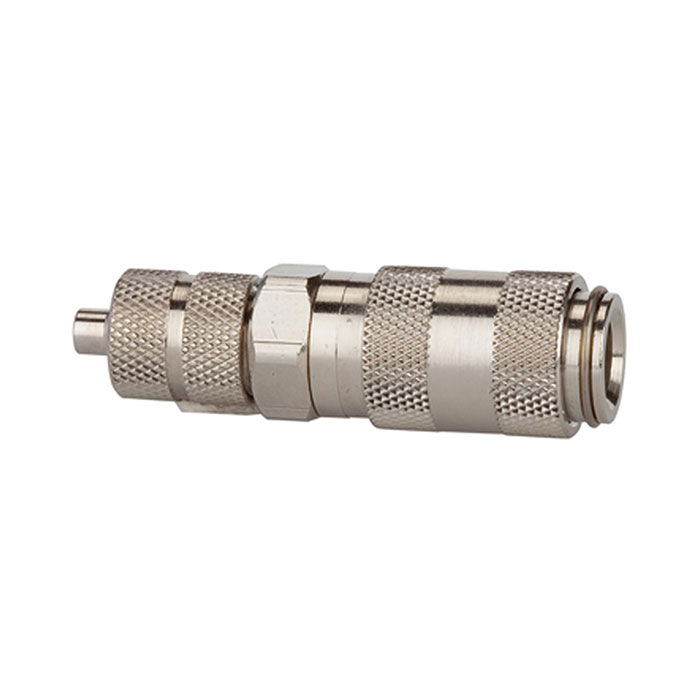

RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4305, Hose 5x3
Typennummer: 243.08/8-ES-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Quick-release coupling NW 2.7, ES 1.4305, hose connection 5x3, operating pressure 0-35 bar, medium/ambient temperature -20°C to 200°C
| Housing | Stainless steel 1.4305 |
| Sealing material | FPM |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 120 l/min (air) |
| Ball | Stainless steel 1.4034 |
| Spring | Stainless steel 1.4310 |
| Valve body | Stainless steel 1.4305 |
| Sleeve | Stainless steel 1.4305 |
| Snap ring | Stainless steel 1.4310 |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 9 mm |
| NW | 2.7 |
| Length | 33 mm |
| Connection | Trouser connection 5x3 |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

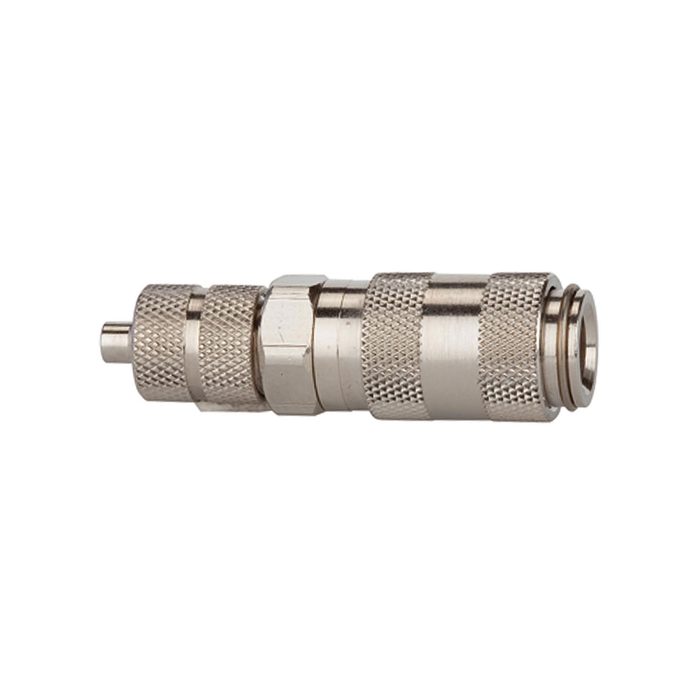

![[156210] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4305, Hose 4x3](/web/image/product.template/213275/image_128/%5B156210%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4305%2C%20Hose%204x3?unique=40ee090)
|
Typennummer: 243.08/7-ES-E |
90.69 € | |
![[156212] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4305, Hose 6x4](/web/image/product.template/213277/image_128/%5B156212%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4305%2C%20Hose%206x4?unique=8ea738b)
|
Typennummer: 243.08/9-ES-E |
90.69 € | |
