RIEGLER Ball valve 3/2-way »variobloc«, pneumatic drive, Size 2, G 1
Typennummer: VK 26-P
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve 3/2-way "variobloc", pneumatic actuator, with vent and silencer, BG 2, G 1, operating pressure max. 25 bar
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Series | variobloc |
| Max. operating pressure | 25 bar |
| Ambient temperature max. | 80 °C |
| Control pressure min. | 5.6 bar |
| Control pressure max. | 7.4 bar |
| Thread | G 1 |
| Flow rate | 11000 l/min |
| BG | 2 |
| A | 125 mm |
| B | 120 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[158058] RIEGLER Ball valve 3/2-way »variobloc«, pneumatic drive, Size 2, G 1/2](/web/image/product.template/214561/image_128/%5B158058%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBvariobloc%C2%AB%2C%20pneumatic%20drive%2C%20Size%202%2C%20G%201-2?unique=56642bf)
|
Typennummer: VK 24-P |
458.01 € | |

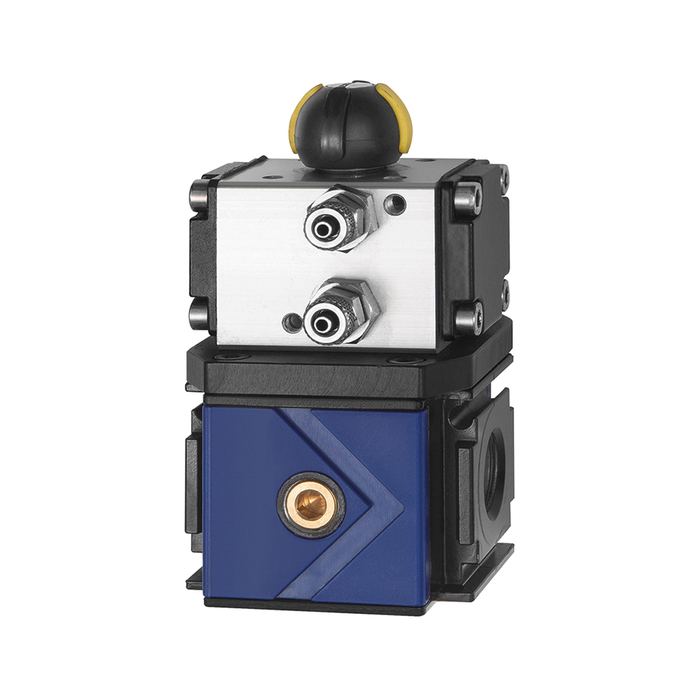

![[158059] RIEGLER Ball valve 3/2-way »variobloc«, pneumatic drive, Size 2, G 3/4](/web/image/product.template/214562/image_128/%5B158059%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBvariobloc%C2%AB%2C%20pneumatic%20drive%2C%20Size%202%2C%20G%203-4?unique=77b694d)
|
Typennummer: VK 25-P |
458.01 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=2a557d1)
|
Type number: VZ 719 |
13.99 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=8284d58)
|
Type number: VZ 104 |
14.01 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=b5fd0d2)
|
Type number: VZ 204 |
23.11 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=3b66cd5)
|
Type number: VZ 500 |
29.85 € | |
