RIEGLER 3/2-way solenoid valve, Stainless steel, NC, 230 V AC, NBR, G 1/4
Typennummer: MV14ES230
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way MV. made of stainless steel 1.4301, for industrial systems, max. 10 bar - Type MV14ES230
The RIEGLER 3/2-way valve, ES, NC, direct acting, 230 V AC, NBR, G 1/4, PN 0-10 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel 1.4301 with NBR seals. The operating pressure range is 0 bar to 10 bar. The permissible medium temperature is between -25 °C and 90 °C. Connection thread G 1/4 - suitable for common industry standards. Operating voltage 230 V AC, 50 - 60 Hz, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel 1.4301 |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -25 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Thread | G 1/4 |
| DN | 45325 |
| Function | normally closed (NC) |
| Tension | 230 V AC, 50 - 60 Hz |
| A | 95 mm |
| B | 40 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

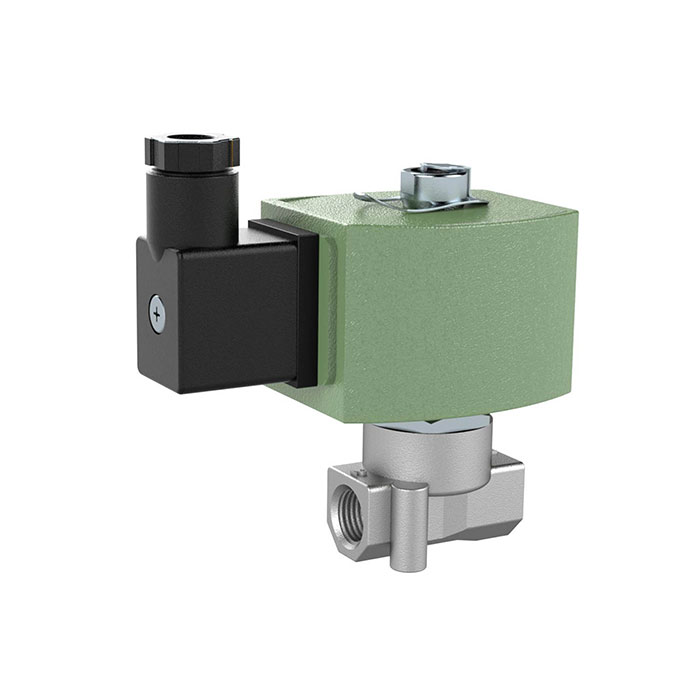

![[158061] RIEGLER 3/2-way solenoid valve, Stainless steel, NC, 24 V DC, NBR, G 1/4](/web/image/product.template/214564/image_128/%5B158061%5D%20RIEGLER%203-2-way%20solenoid%20valve%2C%20Stainless%20steel%2C%20NC%2C%2024%20V%20DC%2C%20NBR%2C%20G%201-4?unique=abc2ab5)
|
