RIEGLER Check valve, DN 50, Red brass, G 2, PN max. 16 bar
Typennummer: RK2RG
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Check valve made of gunmetal, for industrial systems, max. 16 bar - type RK2RG
The RIEGLER non-return valve, DN 50, gunmetal, G 2, PN max. 16 bar regulates or blocks the flow of compressed air and media. The housing is made of gunmetal. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -10 °C and 80 °C. Connection thread G 2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Reliable media control.
Field of application
Typical areas of application: Industrial piping systems.
| Housing | Gunmetal |
| Max. operating pressure | 16 bar |
| Valve disc | Brass |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | G 2 |
| DN | 50 |
| SW | 70 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Length | 130 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[158073] RIEGLER Check valve, DN 15, Red brass, G 1/2, PN max. 16 bar](/web/image/product.template/214576/image_128/%5B158073%5D%20RIEGLER%20Check%20valve%2C%20DN%2015%2C%20Red%20brass%2C%20G%201-2%2C%20PN%20max.%2016%20bar?unique=bc9cdd9)
|
Typennummer: RK12RG |
92.50 € | |
![[158074] RIEGLER Check valve, DN 20, Red brass, G 3/4, PN max. 16 bar](/web/image/product.template/214577/image_128/%5B158074%5D%20RIEGLER%20Check%20valve%2C%20DN%2020%2C%20Red%20brass%2C%20G%203-4%2C%20PN%20max.%2016%20bar?unique=3950792)
|
Typennummer: RK34RG |
114.82 € | |
![[158075] RIEGLER Check valve, DN 25, Red brass, G 1, PN max. 16 bar](/web/image/product.template/214578/image_128/%5B158075%5D%20RIEGLER%20Check%20valve%2C%20DN%2025%2C%20Red%20brass%2C%20G%201%2C%20PN%20max.%2016%20bar?unique=04f0bbb)
|
Typennummer: RK1RG |
136.70 € | |
![[158076] RIEGLER Check valve, DN 32, Red brass, G 1 1/4, PN max. 16 bar](/web/image/product.template/214579/image_128/%5B158076%5D%20RIEGLER%20Check%20valve%2C%20DN%2032%2C%20Red%20brass%2C%20G%201%201-4%2C%20PN%20max.%2016%20bar?unique=cb2c1e6)
|
Typennummer: RK114RG |
179.93 € | |

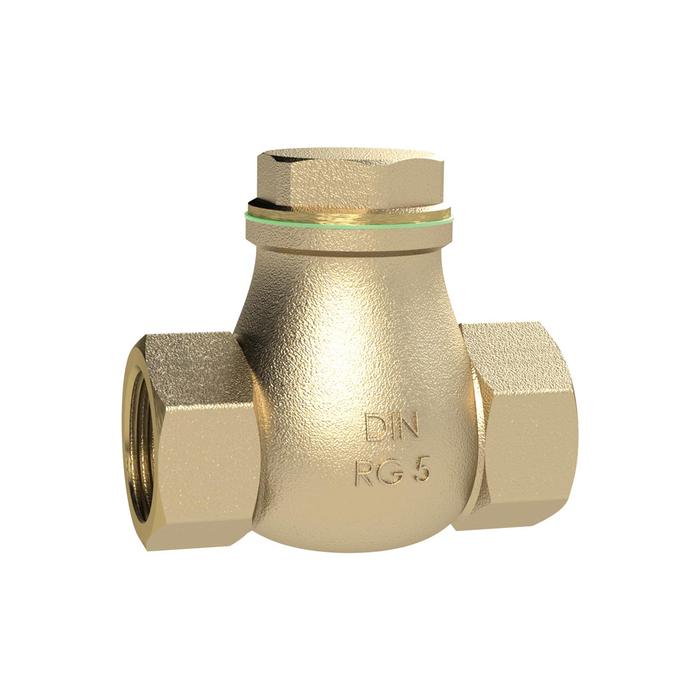

![[158077] RIEGLER Check valve, DN 40, Red brass, G 1 1/2, PN max. 16 bar](/web/image/product.template/214580/image_128/%5B158077%5D%20RIEGLER%20Check%20valve%2C%20DN%2040%2C%20Red%20brass%2C%20G%201%201-2%2C%20PN%20max.%2016%20bar?unique=49f9dbb)
|
Typennummer: RK112RG |
230.18 € | |

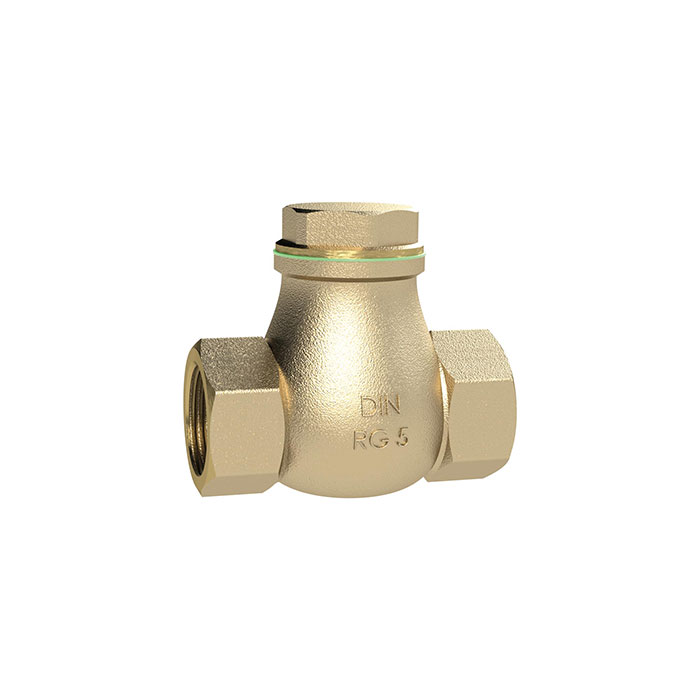

![[158079] RIEGLER Check valve, DN 65, Red brass, G 2 1/2, PN max. 16 bar](/web/image/product.template/214582/image_128/%5B158079%5D%20RIEGLER%20Check%20valve%2C%20DN%2065%2C%20Red%20brass%2C%20G%202%201-2%2C%20PN%20max.%2016%20bar?unique=b86b40f)
|
Typennummer: RK212RG |
1,416.37 € | |
