RIEGLER Pivoting angled fitting, M8x1.0 o., Pipe exterior Ø 5
Typennummer: SWVM85SLST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel elbow fitting made of galvanized steel (DIN 2353), for pneumatic installation - type SWVM85SLST
The RIEGLER swivel elbow union, M8x1.0 a., external pipe Ø 5 creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread M8x1.0 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | M8x1.0 |
| SW 1 | 14 mm |
| SW 2 | 18 mm |
| SW | 12 mm |
| Tube outer Ø | 5 mm |
| PN | 100 bar |
| L1 | 25 mm |
| L2 | 28 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[158838] RIEGLER Pivoting angled fitting, M10x1.0 o., Pipe exterior Ø 6](/web/image/product.template/214729/image_128/%5B158838%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M10x1.0%20o.%2C%20Pipe%20exterior%20%C3%98%206?unique=0a73005)
|
Typennummer: SWVM106SLST |
13.14 € | |
![[158839] RIEGLER Pivoting angled fitting, M10x1.0 o., Pipe exterior Ø 8](/web/image/product.template/214730/image_128/%5B158839%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M10x1.0%20o.%2C%20Pipe%20exterior%20%C3%98%208?unique=447cbdd)
|
Typennummer: SWVM108SLST |
13.17 € | |

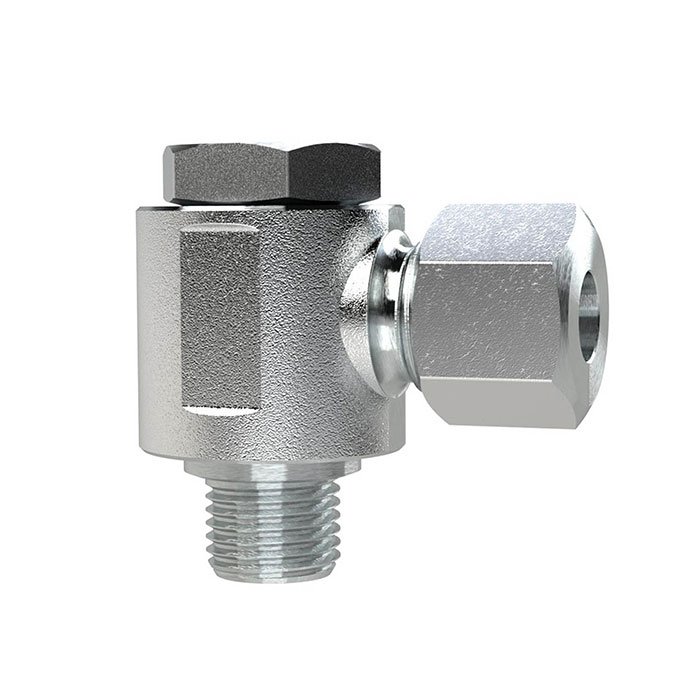

![[158836] RIEGLER Pivoting angled fitting, M8x1.0 o., Pipe exterior Ø 4](/web/image/product.template/214727/image_128/%5B158836%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M8x1.0%20o.%2C%20Pipe%20exterior%20%C3%98%204?unique=4cc1882)
|
Typennummer: SWVM84SLST |
13.10 € | |
