RIEGLER Pivoting angled fitting, M33x2.0 o., Pipe exterior Ø 25
Typennummer: SWVM3325SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Swivel elbow fitting, M33x2.0 a., outer pipe Ø 25 mm, SW1 46, SW2 41, max. operating pressure 250 bar, galvanized steel
| Material | Galvanized steel (DIN 2353) |
| Thread | M33x2.0 |
| SW 1 | 41 mm |
| SW 2 | 50 mm |
| SW | 46 mm |
| Tube outer Ø | 25 mm |
| PN | 250 bar |
| L1 | 58 mm |
| L2 | 87.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[158848] RIEGLER Pivoting angled fitting, M12x1.5 o., Pipe exterior Ø 6](/web/image/product.template/214739/image_128/%5B158848%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M12x1.5%20o.%2C%20Pipe%20exterior%20%C3%98%206?unique=fc0a85c)
|
Typennummer: SWVM126SST |
10.51 € | |
![[158849] RIEGLER Pivoting angled fitting, M14x1.5 o., Pipe exterior Ø 8](/web/image/product.template/214740/image_128/%5B158849%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M14x1.5%20o.%2C%20Pipe%20exterior%20%C3%98%208?unique=70eb8f4)
|
Typennummer: SWVM148SST |
11.03 € | |
![[158850] RIEGLER Pivoting angled fitting, M16x1.5 o., Pipe exterior Ø 10](/web/image/product.template/214741/image_128/%5B158850%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M16x1.5%20o.%2C%20Pipe%20exterior%20%C3%98%2010?unique=3c6e525)
|
Typennummer: SWVM1610SST |
13.65 € | |

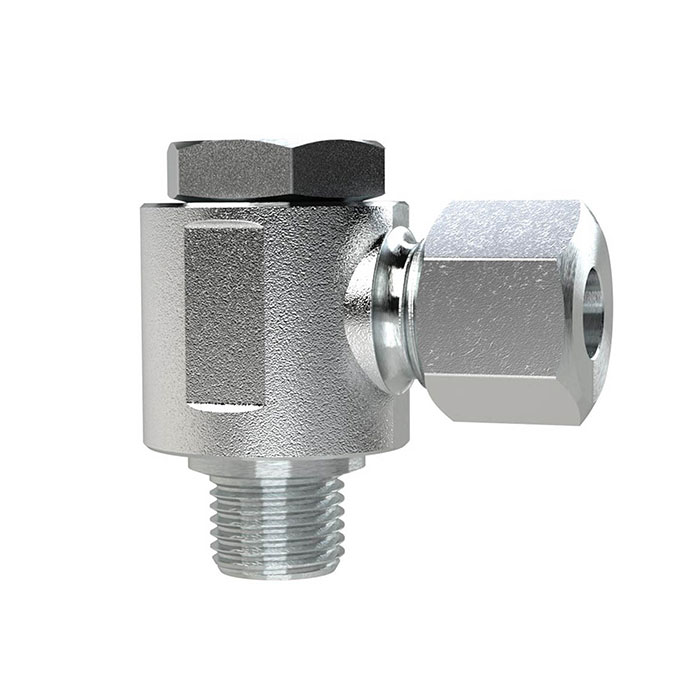

![[158851] RIEGLER Pivoting angled fitting, M18x1.5 o., Pipe exterior Ø 12](/web/image/product.template/214742/image_128/%5B158851%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M18x1.5%20o.%2C%20Pipe%20exterior%20%C3%98%2012?unique=ac571e9)
|
Typennummer: SWVM1812SST |
15.23 € | |
![[158852] RIEGLER Pivoting angled fitting, M20x1.5 o., Pipe exterior Ø 14](/web/image/product.template/214743/image_128/%5B158852%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M20x1.5%20o.%2C%20Pipe%20exterior%20%C3%98%2014?unique=aeb679c)
|
Typennummer: SWVM2014SST |
32.00 € | |
![[158853] RIEGLER Pivoting angled fitting, M22x1.5 o., Pipe exterior Ø 16](/web/image/product.template/214744/image_128/%5B158853%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M22x1.5%20o.%2C%20Pipe%20exterior%20%C3%98%2016?unique=be4d6ec)
|
Typennummer: SWVM2216SST |
24.05 € | |
![[158854] RIEGLER Pivoting angled fitting, M27x2.0 o., Pipe exterior Ø 20](/web/image/product.template/214745/image_128/%5B158854%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20M27x2.0%20o.%2C%20Pipe%20exterior%20%C3%98%2020?unique=880ece4)
|
Typennummer: SWVM2720SST |
38.92 € | |
