RIEGLER Pivoting angled fitting, G 1/8 o., Pipe exterior Ø 5
Typennummer: SWV5SLST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Swivel elbow fitting, G 1/8 a., outer pipe Ø 5 mm, SW1 12, SW2 14, max. operating pressure 100 bar, galvanized steel
| Material | Galvanized steel (DIN 2353) |
| Thread | G 1/8 |
| SW 1 | 14 mm |
| SW 2 | 18 mm |
| SW | 12 mm |
| Tube outer Ø | 5 mm |
| PN | 100 bar |
| L1 | 25 mm |
| L2 | 28 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

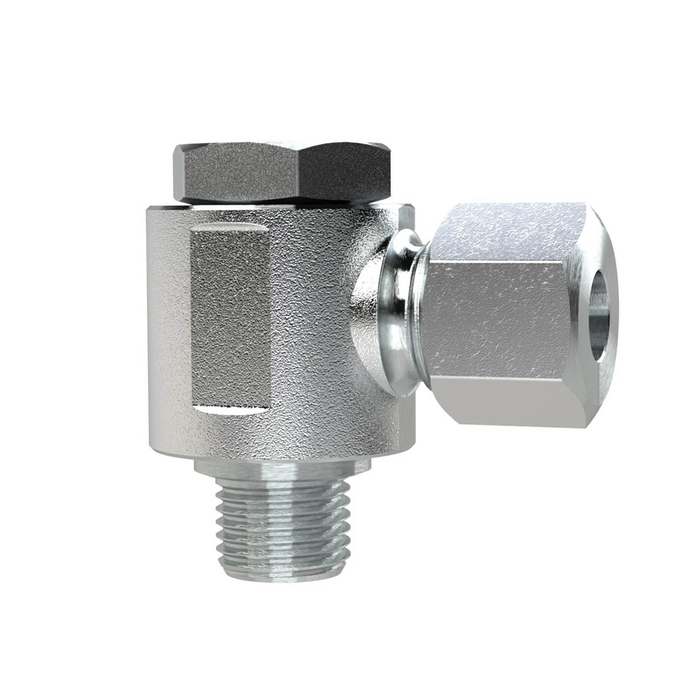

![[158856] RIEGLER Pivoting angled fitting, G 1/8 o., Pipe exterior Ø 4](/web/image/product.template/214747/image_128/%5B158856%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20G%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%204?unique=c68e7d4)
|
Typennummer: SWV4SLST |
13.10 € | |
![[158858] RIEGLER Pivoting angled fitting, G 1/8 o., Pipe exterior Ø 6](/web/image/product.template/214749/image_128/%5B158858%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20G%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%206?unique=ac5bdb9)
|
Typennummer: SWV6SLST |
13.14 € | |
![[158859] RIEGLER Pivoting angled fitting, G 1/8 o., Pipe exterior Ø 8](/web/image/product.template/214750/image_128/%5B158859%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20G%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%208?unique=8e0e2ae)
|
Typennummer: SWV8SLST |
13.17 € | |
