RIEGLER Male elbow, R 1/4 o. Pipe exterior Ø10, Stahl ver., 100 bar
Typennummer: WEVR1410SLST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow screw-in fitting R 1/4 a. Pipe-Ø10 made of galvanized steel (DIN 2353) - Type WEVR1410SLST
The RIEGLER elbow screw-in fitting R 1/4 a. Pipe-Ø10, galvanized steel, 100 bar creates a permanent, metal-to-metal sealing pipe connection according to the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread R 1/4 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | R 1/4 |
| SW 1 | 17 mm |
| SW 2 | 14 mm |
| Tube outer Ø | 10 mm |
| PN | 100 bar |
| L1 | 27 mm |
| L2 | 25 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112165] RIEGLER Angled screw-in fitting, R 1/8 o., Pipe exterior Ø 4 mm](/web/image/product.template/184060/image_128/%5B112165%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20R%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%204%20mm?unique=9714a41)
|
Type number: V 85 |
4.14 € | |
![[112166] RIEGLER Angled screw-in fitting, R 1/8 o., Pipe exterior Ø 5 mm](/web/image/product.template/184061/image_128/%5B112166%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20R%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%205%20mm?unique=cffb749)
|
Type number: V 86 |
5.19 € | |
![[112167] RIEGLER Angled screw-in fitting, R 1/8 o., Pipe exterior Ø 6 mm](/web/image/product.template/184062/image_128/%5B112167%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20R%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%206%20mm?unique=bf6c235)
|
Type number: V 87 |
4.24 € | |

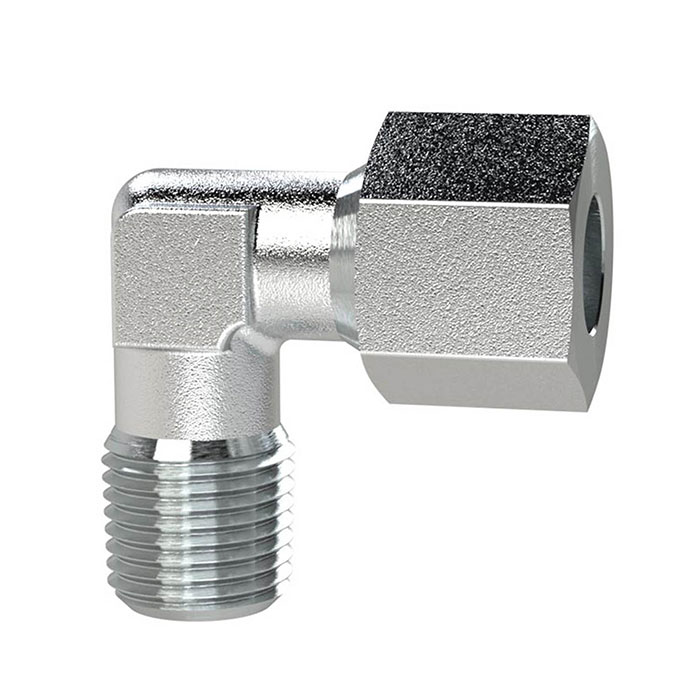

![[112168] RIEGLER Angled screw-in fitting, R 1/8 o., Pipe exterior Ø 8 mm](/web/image/product.template/184063/image_128/%5B112168%5D%20RIEGLER%20Angled%20screw-in%20fitting%2C%20R%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%208%20mm?unique=877960f)
|
