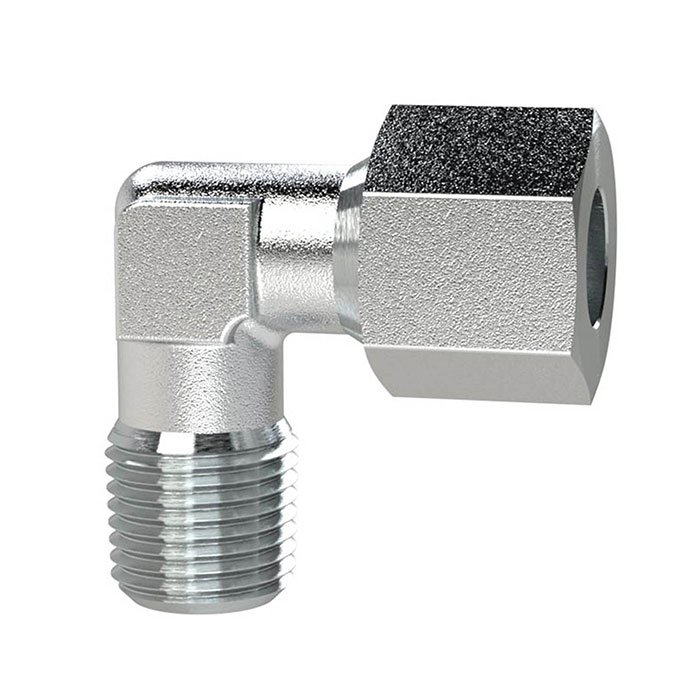

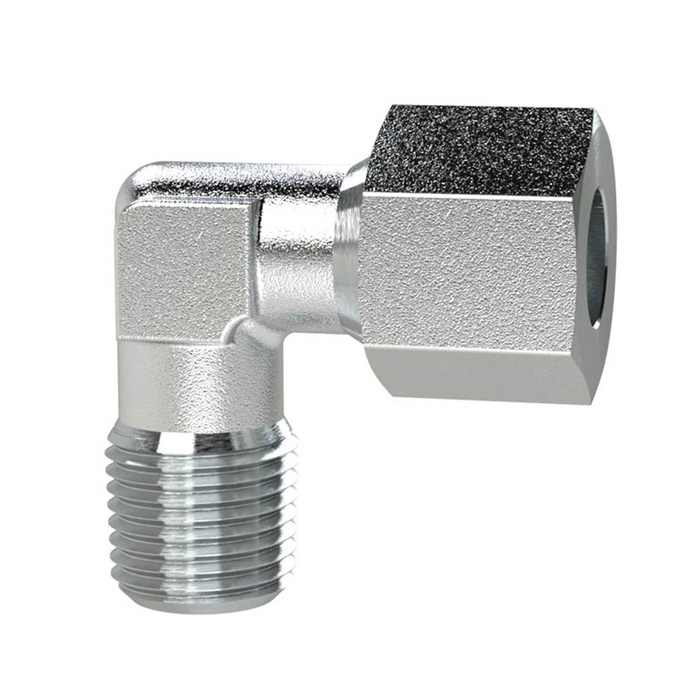

RIEGLER Male elbow, NPT 3/8 o., Pipe exterior Ø10, galvanised steel
Typennummer: WEV3810LSTNPT
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow screw-in fitting made of galvanized steel (DIN 2353), for pneumatic installation - type WEV3810LSTNPT
The RIEGLER elbow screw-in fitting, NPT 3/8 a., pipe Ø10, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread NPT 3/8 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | NPT 3/8 |
| SW 1 | 19 mm |
| SW 2 | 17 mm |
| Tube outer Ø | 10 mm |
| PN | 315 bar |
| L1 | 32 mm |
| L2 | 28 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
