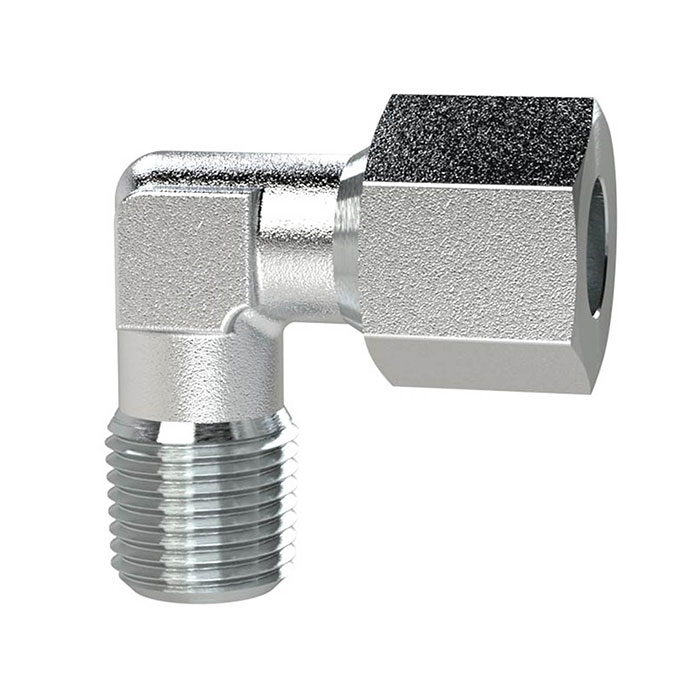

RIEGLER Male elbow, NPT 3/4 o., Pipe exterior Ø20, galvanised steel
Typennummer: WEV3420SSTNPT
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow screw-in fitting made of galvanized steel (DIN 2353), for pneumatic installation - type WEV3420SSTNPT
The RIEGLER elbow screw-in fitting, NPT 3/4 a., pipe Ø20, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread NPT 3/4 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | NPT 3/4 |
| SW 1 | 36 mm |
| SW 2 | 27 mm |
| Tube outer Ø | 20 mm |
| PN | 400 bar |
| L1 | 48 mm |
| L2 | 42 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159185] RIEGLER Male elbow, NPT 1/2 o., Pipe exterior Ø12, galvanised steel](/web/image/product.template/215016/image_128/%5B159185%5D%20RIEGLER%20Male%20elbow%2C%20NPT%201-2%20o.%2C%20Pipe%20exterior%20%C3%9812%2C%20galvanised%20steel?unique=4b24a4b)
|
Typennummer: WEV1212SSTNPT |
14.01 € | |
![[159186] RIEGLER Male elbow, NPT 1/2 o., Pipe exterior Ø14, galvanised steel](/web/image/product.template/215017/image_128/%5B159186%5D%20RIEGLER%20Male%20elbow%2C%20NPT%201-2%20o.%2C%20Pipe%20exterior%20%C3%9814%2C%20galvanised%20steel?unique=27db37d)
|
Typennummer: WEV1214SSTNPT |
18.86 € | |
![[159187] RIEGLER Male elbow, NPT 1/2 o., Pipe exterior Ø16, galvanised steel](/web/image/product.template/215018/image_128/%5B159187%5D%20RIEGLER%20Male%20elbow%2C%20NPT%201-2%20o.%2C%20Pipe%20exterior%20%C3%9816%2C%20galvanised%20steel?unique=4125690)
|
Typennummer: WEV1216SSTNPT |
13.08 € | |
![[159181] RIEGLER Male elbow, NPT 1/4 o., Pipe exterior Ø 6, galvanised steel](/web/image/product.template/215012/image_128/%5B159181%5D%20RIEGLER%20Male%20elbow%2C%20NPT%201-4%20o.%2C%20Pipe%20exterior%20%C3%98%206%2C%20galvanised%20steel?unique=afbf109)
|
Typennummer: WEV146SSTNPT |
6.05 € | |
![[159182] RIEGLER Male elbow, NPT 1/4 o., Pipe exterior Ø 8, galvanised steel](/web/image/product.template/215013/image_128/%5B159182%5D%20RIEGLER%20Male%20elbow%2C%20NPT%201-4%20o.%2C%20Pipe%20exterior%20%C3%98%208%2C%20galvanised%20steel?unique=8102b27)
|
Typennummer: WEV148SSTNPT |
6.91 € | |

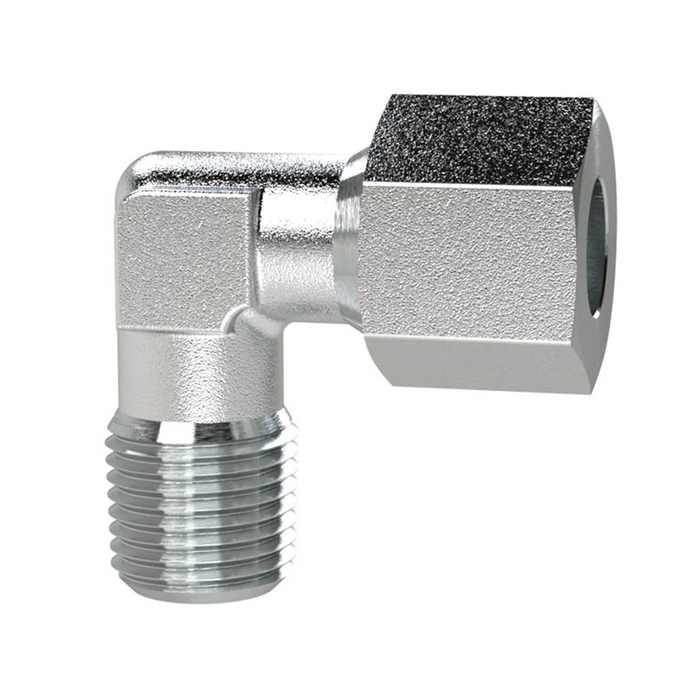

![[159189] RIEGLER Male elbow, NPT 1 o., Pipe exterior Ø 25, galvanised steel](/web/image/product.template/215020/image_128/%5B159189%5D%20RIEGLER%20Male%20elbow%2C%20NPT%201%20o.%2C%20Pipe%20exterior%20%C3%98%2025%2C%20galvanised%20steel?unique=aff5d51)
|
